RM3660EC _56 Audio / Visual / Telematics _080753 TELEMATICS _0397006 TELEMATICS SYSTEM(for Gasoline Model) C

TELEMATICS  TELEMATICS SYSTEM(for Gasoline Model)  B15C511  Emergency Call Switch Circuit Short to Ground  B15C513  Emergency Call Switch Circuit Open


DESCRIPTION

If the telematics transceiver detects an error in the communication between the telematics transceiver and the map light assembly (emergency call switch) as a result of the telematics transceiver self check, this DTC will be stored.

DTC No. Detection Item DTC Detection Condition Trouble Area
B15C511 Emergency Call Switch Circuit Short to Ground Emergency call switch impedance (Ω) is lower than the malfunction threshold for 10 seconds or more when the engine switch is on (IG)
·

Map light assembly

·

Harness or connector

·

Telematics transceiver


B15C513 Emergency Call Switch Circuit Open Emergency call switch impedance (Ω) is higher than the malfunction threshold for 10 seconds or more when the engine switch is on (IG)
·

Map light assembly

·

Harness or connector

·

Telematics transceiver



WIRING DIAGRAM

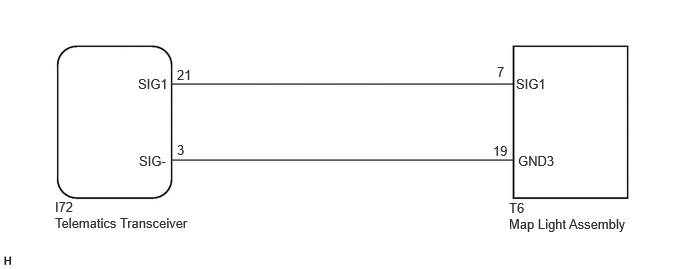

for 10.25 Inch Display
E484670E05
0.573,2.073 0.969,2.26 0.396,0.188 10 false I72 5.302,2.083 5.698,2.271 0.396,0.188 10 false T6 0.573,2.24 2.052,2.427 1.479,0.188 10 false Telematics Transceiver 5.302,2.25 6.771,2.521 1.469,0.271 10 false Map Light Assembly 5.375,0.792 5.771,0.979 0.396,0.188 10 false SIG1 5.396,1.594 5.823,1.781 0.427,0.188 10 false GND3 1.438,0.792 1.833,0.979 0.396,0.188 10 false SIG1 1.448,1.594 1.802,1.781 0.354,0.188 10 false SIG- 1.844,0.698 2.094,0.885 0.25,0.188 10 false 21 1.844,1.479 2.094,1.667 0.25,0.188 10 false 3 5.177,0.667 5.385,0.854 0.208,0.188 10 false 7 5.135,1.49 5.344,1.677 0.208,0.188 10 false 19

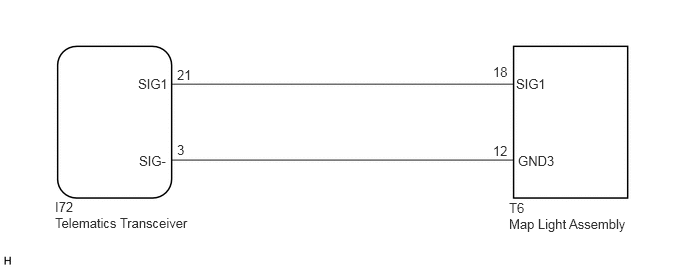

except 10.25 Inch Display
E231377E69
0.573,2.073 0.969,2.26 0.396,0.188 10 false I72 5.302,2.083 5.698,2.271 0.396,0.188 10 false T6 0.573,2.24 2.052,2.427 1.479,0.188 10 false Telematics Transceiver 5.302,2.25 6.771,2.521 1.469,0.271 10 false Map Light Assembly 5.375,0.792 5.771,0.979 0.396,0.188 10 false SIG1 5.396,1.594 5.823,1.781 0.427,0.188 10 false GND3 1.438,0.792 1.833,0.979 0.396,0.188 10 false SIG1 1.448,1.594 1.802,1.781 0.354,0.188 10 false SIG- 1.844,0.698 2.094,0.885 0.25,0.188 10 false 21 1.844,1.479 2.094,1.667 0.25,0.188 10 false 3 5.135,0.667 5.344,0.854 0.208,0.188 10 false 18 5.135,1.49 5.344,1.677 0.208,0.188 10 false 12

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Telematics System.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for Gasoline Model)>PRECAUTION

·

Before replacing the telematics transceiver, refer to Service Bulletin.



PROCEDURE

1.CHECK DTC OUTPUT
a.

Turn the engine switch off.


b.

Connect the GTS to the DLC3.


c.

Turn the engine switch on (IG) and wait for 10 seconds or more.


d.

Turn the GTS on.


e.

Clear the DTCs.

Body Electrical > Telematics > Clear DTCs
50002 459

f.

Recheck for DTCs and check if the same DTC is output again.

Body Electrical > Telematics > Trouble Codes
50001 459
OK:

No DTCs are output.



Result:
Result Proceed to
No DTCs are output. A
DTCs are output. B



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


B

2.INSPECT MAP LIGHT ASSEMBLY
2.INSPECT MAP LIGHT ASSEMBLY
a.

Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


b.

for 10.25 Inch Display:

i.

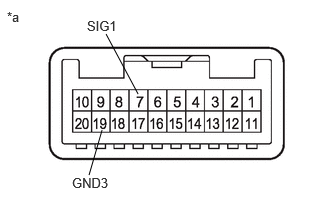

E489941C03
1.438,0.979 1.104,0.354 false 0.927,1.823 1.063,1.354 false 0.073,0.094 0.354,0.333 0.281,0.24 10 false *a 0.75,1.823 1.313,2.073 0.563,0.25 10 false GND3 0.906,0.188 1.344,0.396 0.438,0.208 10 false SIG1
*a Component without harness connected
(Map Light Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
7 (SIG1) - 19 (GND3) Emergency call switch not operated 410 to 414 Ω
7 (SIG1) - 19 (GND3) Emergency call switch operated 81 to 83 Ω




c.

except 10.25 Inch Display:

i.

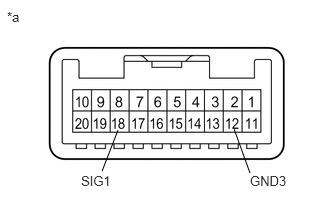

B129570C70
1.063,1.781 1.229,1.354 false 2.604,1.802 2.438,1.344 false 0.073,0.094 0.354,0.333 0.281,0.24 10 false *a 2.604,1.802 3.167,2.052 0.563,0.25 10 false GND3 0.844,1.802 1.281,2.01 0.438,0.208 10 false SIG1
*a Component without harness connected
(Map Light Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
18 (SIG1) - 12 (GND3) Emergency call switch not operated 410 to 414 Ω
18 (SIG1) - 12 (GND3) Emergency call switch operated 81 to 83 Ω




Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY)

NG

REPLACE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


3.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY)
a.

Disconnect the I72 telematics transceiver connector.


b.

Disconnect the T6 map light assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for 10.25 Inch Display
Tester Connection Condition Specified Condition
I72-21 (SIG1) - T6-7 (SIG1) Always Below 1 Ω
I72-3 (SIG-) - T6-19 (GND3) Always Below 1 Ω
I72-21 (SIG1) or T6-7 (SIG1) - Body ground Always 10 kΩ or higher
I72-3 (SIG-) or T6-19 (GND3) - Body ground Always 10 kΩ or higher

except 10.25 Inch Display
Tester Connection Condition Specified Condition
I72-21 (SIG1) - T6-18 (SIG1) Always Below 1 Ω
I72-3 (SIG-) - T6-12 (GND3) Always Below 1 Ω
I72-21 (SIG1) or T6-18 (SIG1) - Body ground Always 10 kΩ or higher
I72-3 (SIG-) or T6-12 (GND3) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE TELEMATICS TRANSCEIVER

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
