TELEMATICS  TELEMATICS SYSTEM(for Gasoline Model)  B157011  Indicator (Red) Circuit Short to Ground  B157013  Indicator (Red) Circuit Open


DESCRIPTION

This DTC is stored when the telematics transceiver detects an open or short in the emergency call switch indicator (red) circuit of the emergency call switch.

The emergency call switch indicator (red) illuminates for 10 seconds and turns off when the engine switch is turned on (IG).

If a malfunction in the telematics system is detected, the emergency call switch indicator (red) will illuminate. However, the emergency call switch indicator (red) may not illuminate when this DTC is stored.

DTC No. Detection Item DTC Detection Condition Trouble Area
B157011 Indicator (Red) Circuit Short to Ground Emergency call switch indicator (red) impedance (Ω) is lower than the malfunction threshold for 10 seconds or more when the engine switch is on (IG)
·

Telematics transceiver

·

Map light assembly (emergency call switch)

·

Harness or connector


B157013 Indicator (Red) Circuit Open Emergency call switch indicator (red) impedance (Ω) is higher than the malfunction threshold for 10 seconds or more when the engine switch is on (IG)
·

Telematics transceiver

·

Map light assembly (emergency call switch)

·

Harness or connector



WIRING DIAGRAM

for 10.25 Inch Display
E482742E14

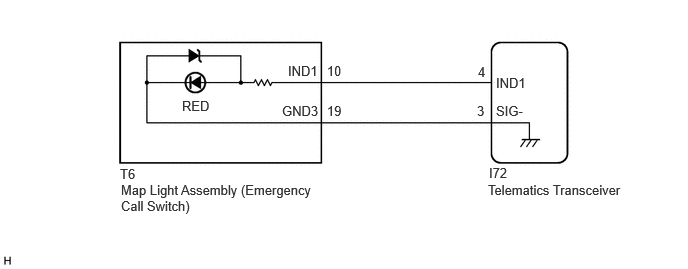

1.896,1.021 2.354,1.219 0.458,0.198 10 false RED 3.406,0.656 3.667,0.875 0.26,0.219 10 false 10 3.406,1.073 3.719,1.313 0.313,0.24 10 false 19 3,0.656 3.615,0.854 0.615,0.198 10 false IND1 2.938,1.073 3.552,1.271 0.615,0.198 10 false GND3 1.25,1.729 1.708,1.927 0.458,0.198 10 false T6 1.26,1.896 3.333,2.323 2.073,0.427 10 false Map Light Assembly (Emergency Call Switch) 4.979,0.667 5.292,0.865 0.313,0.198 10 false 4 4.969,1.073 5.281,1.271 0.313,0.198 10 false 3 5.167,0.781 5.781,0.979 0.615,0.198 10 false IND1 5.167,1.073 5.781,1.271 0.615,0.198 10 false SIG- 5.094,1.719 5.552,1.917 0.458,0.198 10 false I72 5.083,1.896 6.646,2.104 1.563,0.208 10 false Telematics Transceiver

except 10.25 Inch Display
E429762E79

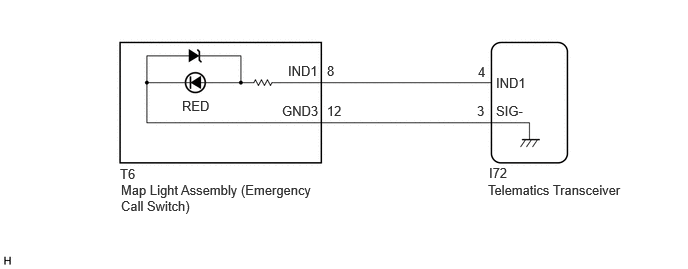

1.896,1.021 2.354,1.219 0.458,0.198 10 false RED 3.406,0.656 3.563,0.854 0.156,0.198 10 false 8 3.406,1.073 3.719,1.313 0.313,0.24 10 false 12 3,0.656 3.615,0.854 0.615,0.198 10 false IND1 2.938,1.073 3.552,1.271 0.615,0.198 10 false GND3 1.25,1.729 1.708,1.927 0.458,0.198 10 false T6 1.26,1.896 3.333,2.323 2.073,0.427 10 false Map Light Assembly (Emergency Call Switch) 4.979,0.667 5.292,0.865 0.313,0.198 10 false 4 4.969,1.073 5.281,1.271 0.313,0.198 10 false 3 5.167,0.781 5.781,0.979 0.615,0.198 10 false IND1 5.167,1.073 5.781,1.271 0.615,0.198 10 false SIG- 5.094,1.719 5.552,1.917 0.458,0.198 10 false I72 5.083,1.896 6.646,2.104 1.563,0.208 10 false Telematics Transceiver

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Registration for Telematics System.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for Gasoline Model)>REGISTRATION

·

Before replacing the telematics transceiver, refer to Service Bulletin.



HINT:

If DTC B157011 or B157013 is stored, the emergency call switch indicator (red) may not illuminate when another DTC is stored.


PROCEDURE

1.CHECK DTC
a.

Turn the engine switch off.


b.

Connect the GTS to the DLC3.


c.

Turn the engine switch on (IG) and wait for 10 seconds or more.


d.

Turn the GTS on.


e.

Clear the DTCs.

Body Electrical > Telematics > Clear DTCs
50002 459

f.

Check for DTCs and check that no DTCs are output.

Body Electrical > Telematics > Trouble Codes
50001 459
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.INSPECT MAP LIGHT ASSEMBLY (EMERGENCY CALL SWITCH) (INPUT VOLTAGE)
2.INSPECT MAP LIGHT ASSEMBLY (EMERGENCY CALL SWITCH) (INPUT VOLTAGE)
a.

for 10.25 Inch Display:

i.
B234642C84

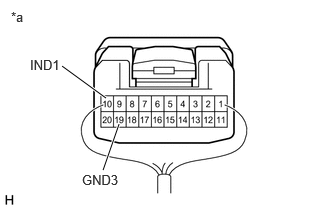

1.24,1.292 1.073,1.771 true 1.104,1.021 0.646,0.688 true 0.115,0.094 0.417,0.417 0.302,0.323 10 false *a 0.854,1.792 1.396,2.021 0.542,0.229 10 false GND3 0.313,0.594 0.719,0.76 0.406,0.167 10 false IND1
*a Component with harness connected
(Map Light Assembly (Emergency Call Switch))


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
10 (IND1) - 19 (GND3) 2 seconds after engine switch turned on (IG)
→ Engine switch off 		8.5 to 10 V
→ Below 1 V




b.

except 10.25 Inch Display:

i.
B234642C40
2.167,1.281 2.427,1.656 false 1.365,1.135 1.083,1.698 false 0.115,0.094 0.417,0.417 0.302,0.323 10 false *a 2.479,1.615 3.021,1.844 0.542,0.229 10 false GND3 0.833,1.708 1.24,1.875 0.406,0.167 10 false IND1
*a Component with harness connected
(Map Light Assembly (Emergency Call Switch))


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
8 (IND1) - 12 (GND3) 2 seconds after engine switch turned on (IG)
→ Engine switch off 		8.5 to 10 V
→ Below 1 V




Result:
Proceed to
OK
NG



OK

3.INSPECT MAP LIGHT ASSEMBLY (EMERGENCY CALL SWITCH) (RED INDICATOR)

NG

4.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY (EMERGENCY CALL SWITCH))
3.INSPECT MAP LIGHT ASSEMBLY (EMERGENCY CALL SWITCH) (RED INDICATOR)
a.

Remove the map light assembly (emergency call switch).

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


b.

Connect 2 dry-cell batteries (1.5 V each) in series.


c.

for 10.25 Inch Display:

i.
E489941C01

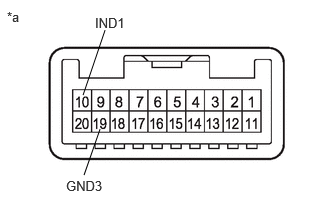

0.865,0.99 1.094,0.313 false 0.875,1.823 1.042,1.344 false 0.073,0.094 0.354,0.333 0.281,0.24 10 false *a 0.688,1.854 1.208,2.073 0.521,0.219 10 false GND3 0.99,0.156 1.427,0.365 0.438,0.208 10 false IND1
*a Component without harness connected
(Map Light Assembly (Emergency Call Switch))


Connect a positive (+) lead from the batteries to terminal 10 (IND1) and a negative (-) lead to terminal 19 (GND3) of the map light assembly (emergency call switch) connector.



d.

except 10.25 Inch Display:

i.
B129570C68
1.01,1.792 1.24,1.115 false 2.594,1.76 2.427,1.333 false 0.073,0.094 0.354,0.333 0.281,0.24 10 false *a 2.625,1.75 3.146,1.969 0.521,0.219 10 false GND3 0.802,1.802 1.24,2.01 0.438,0.208 10 false IND1
*a Component without harness connected
(Map Light Assembly (Emergency Call Switch))


Connect a positive (+) lead from the batteries to terminal 8 (IND1) and a negative (-) lead to terminal 12 (GND3) of the map light assembly (emergency call switch) connector.



e.

Check if the emergency call switch indicator (red) illuminates.

OK:

Emergency call switch indicator (red) illuminates.



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY (EMERGENCY CALL SWITCH))

NG

REPLACE MAP LIGHT ASSEMBLY (EMERGENCY CALL SWITCH)

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


4.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY (EMERGENCY CALL SWITCH))
a.

Disconnect the I72 telematics transceiver connector.


b.

Disconnect the T6 map light assembly (emergency call switch) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for 10.25 Inch Display
Tester Connection Condition Specified Condition
I72-4 (IND1) - T6-10 (IND1) Always Below 1 Ω
I72-4 (IND1) or T6-10 (IND1) - Body ground Always 10 kΩ or higher
I72-3 (SIG-) - T6-19 (GND3) Always Below 1 Ω
I72-3 (SIG-) or T6-19 (GND3) - Body ground Always 10 kΩ or higher

except 10.25 Inch Display
Tester Connection Condition Specified Condition
I72-4 (IND1) - T6-8 (IND1) Always Below 1 Ω
I72-4 (IND1) or T6-8 (IND1) - Body ground Always 10 kΩ or higher
I72-3 (SIG-) - T6-12 (GND3) Always Below 1 Ω
I72-3 (SIG-) or T6-12 (GND3) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

5.REPLACE TELEMATICS TRANSCEIVER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
