SUPPLEMENTAL RESTRAINT SYSTEMS STEERING PAD INSTALLATION
PROCEDURE
45130
1.INSTALL HORN BUTTON ASSEMBLY
Check that the ignition switch (for Gasoline Model) or power switch (for HV Model) is off.
Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
- CAUTION:
- for NR Series:·
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- except NR Series:·
Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

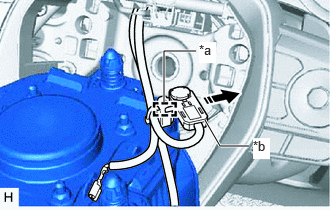

When using a new spiral cable sub-assembly:
| *a | Wire Harness Clamp |
| *b | Airbag Connector |
|
Remove in this Direction |
Engage the wire harness clamp and disconnect the airbag connector as shown in the illustration.
- HINT:
-
Be sure to engage the wire harness clamp until it is locked.
| *a | Wire Harness Clamp |

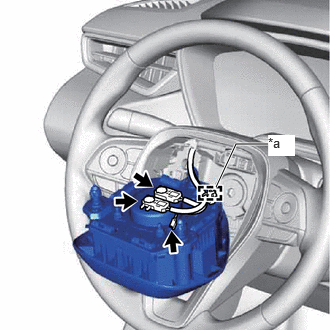

When reusing a spiral cable sub-assembly or spiral cable with sensor sub-assembly:
Engage the wire harness clamp.
Connect the 2 airbag connectors to the horn button assembly.
- NOTICE:
- ·
When connecting any airbag connector, take care not to damage the airbag wire harness.
·Be sure to connect the connectors to each corresponding color.
- HINT:
-
Refer to How to Connect or Disconnect Airbag Connector.
Connect the horn connector to the horn button assembly.

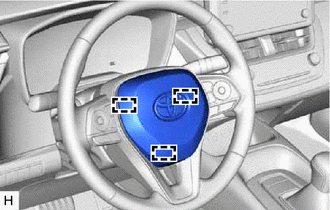

Push the horn button assembly to engage the 3 pins carefully and install the horn button assembly.
- NOTICE:
- ·
Make sure that the pins are securely inserted into the steering wheel assembly holes.
·Make sure to engage the 2 upper pins first.
·Make sure that the horn button assembly is securely installed.
2.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
for NR Series: Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN_03_0002,
for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392376,RM100000002ACL8_01_0029,
for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453685,RM100000002BCCF_03_0002,
for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453686,RM100000002BCCG_03_0002,
for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0470107,RM100000002BCCI_03_0002,
for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0474497,RM100000002BCCK_03_0002,
for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0484846,RM100000002BCCJ_03_0002,
for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_080956,_0611807,RM100000002CK9L_01_0015,
64490
3.INSTALL LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY (for M20F-FXS, M20G-FXS)
45130
4.INSPECT HORN BUTTON ASSEMBLY
Make sure that the horn sounds.
If the horn does not sound, inspect the horn system.
5. PERFORM DIAGNOSTIC SYSTEM CHECK (for NR Series Engine)
6.INSPECT SRS WARNING LIGHT
except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>OPERATION CHECK202304,999999,_58,_080741,_0584471,RM1000000029GNO,
for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>OPERATION CHECK202307,202502,_58,_080741,_0610731,RM100000002CH00,202502,999999,_58,_080741,_0610731,RM100000002QSGL,
7. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
