RM3660EC _58 Vehicle Interior _080729 DOOR LOCK _0392014 DOOR CONTROL RECEIVER A

DOOR LOCK DOOR CONTROL RECEIVER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during door control and tire pressure warning ECU and receiver or electrical key and tire pressure warning ECU and receiver removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Tire pressure warning ECU and receiver	· ID Registration · Initialization · Tire Position Identification	Tire Pressure Warning System	(202304,999999,_53,_080780,_0393956,RM100000002AI0K,)

NOTICE:: When replacing the electrical key and tire pressure warning ECU and receiver, read the transmitter IDs stored in the old ECU using the GTS and write them down before removal.; Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM (for HV Model)>DATA LIST / ACTIVE TEST202304,999999,_53,_080780,_0393956,RM100000002AI0X,

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
1: w/ Smart Entry and Start System 2: w/o Smart Entry and Start System
Tire pressure warning ECU and receiver (Electrical key and tire pressure monitoring system receiver assembly1, door control and tire pressure monitoring system receiver assembly2)	for Type A · Register Transmitter ID · Initialize tire pressure warning system	· When DTC detection conditions of "transmitter ID not received" DTC are met, TPWS indicator blinks for 1 minute, and then illuminates · Tire pressure warning function	(202304,999999,_53,_080780,_0393955,RM100000002B0BZ,)for Registration (202304,999999,_53,_080780,_0393955,RM100000002BB37,)for Initialization
	for Type B · ID Registration · Initialization · Tire Position Identification	Tire Pressure Warning System	(202304,999999,_53,_080780,_0592791,RM100000002AHTO,)
Door control receiver*2	Code registration (Wireless Door Lock Control System)	Wireless Door Lock Control System	(202304,999999,_58,_080729,_0392004,RM100000002BFQV,)

NOTICE:: When replacing the door control and tire pressure warning ECU and receiver or electrical key and tire pressure warning ECU and receiver, read the transmitter IDs stored in the old ECU using the GTS and write them down before removal.; Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM (for Gasoline Model (for Type A))>DATA LIST / ACTIVE TEST202304,999999,_53,_080780,_0393955,RM100000002BB6G,

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY (for NR Series Engine)

for Fixed Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD,

Hide Display 71940A 2.REMOVE REAR SEAT HEADREST ASSEMBLY (for NR Series Engine)

for Fold Down Seat Type with Removable Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0033,

Hide Display 73350C 3.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for NR Series Engine)

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0024,

Hide Display 4.REMOVE REAR SEATBACK ASSEMBLY LH (for NR Series Engine)

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0012,

Hide Display 5.REMOVE REAR SEAT CUSHION ASSEMBLY (for NR Series Engine)

for Fold Down Seat Type Gasoline Model:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0022,

Hide Display 6.REMOVE REAR SEAT CUSHION ASSEMBLY (for NR Series Engine)

for Fold Down Seat Type HV Model:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0042,

Hide Display 72693 7.REMOVE REAR SEAT CUSHION LOCK HOOK (for NR Series Engine)

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0001,

Hide Display 67918A 8.REMOVE REAR DOOR SCUFF PLATE LH (for NR Series Engine)

for Gasoline Model:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0002,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0002,

Hide Display 67918A 9.REMOVE REAR DOOR SCUFF PLATE LH (for NR Series Engine)

for HV Model:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0308,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0308,

Hide Display 76974F 10.REMOVE REAR UNDER SIDE COVER LH (for NR Series Engine)

for HV Model:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0311,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0311,

Hide Display 62332A 11.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH (for NR Series Engine)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL202304,202307,_58,_080748,_0391781,RM100000002AV14_01_0235,202307,202406,_58,_080748,_0391781,RM100000002D1KH_01_0235,202406,999999,_58,_080748,_0391781,RM100000002N5WY_01_0235,

Hide Display 62552F 12.REMOVE REAR SEAT SIDE GARNISH LH (for NR Series Engine)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0195,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0195,

Hide Display 62472A 13.REMOVE ROOF SIDE INNER GARNISH LH (for NR Series Engine)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0301,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0301,

Hide Display 897A0A 14.REMOVE DOOR CONTROL AND TIRE PRESSURE WARNING ECU AND RECEIVER (for NR Series Engine)

w/o Smart Entry and Start System:

NOTICE:: ·

Do not drop, strike or otherwise subject the door control and tire pressure warning ECU and receiver to impact.

·

If the door control and tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.

0,0 0,0 false

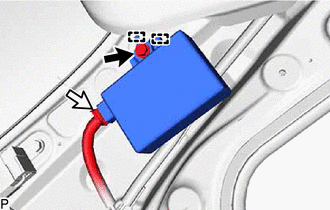

Remove the bolt.

Disengage the 2 guides.

Disconnect the connector to remove the door control and tire pressure warning ECU and receiver.

Hide Display 897B0A 15.REMOVE ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER (for NR Series Engine)

w/ Smart Entry and Start System:

NOTICE:: ·

Do not drop, strike or otherwise subject the electrical key and tire pressure warning ECU and receiver to impact.

·

If the electrical key and tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.

0,0 0,0 false

Remove the bolt.

Disengage the 2 guides.

Disconnect the connector to remove the electrical key and tire pressure warning ECU and receiver.

Hide Display 16.REMOVE REAR SEAT ASSEMBLY (except NR Series Engine)

for Fixed Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD,

Hide Display 17.REMOVE REAR SEAT ASSEMBLY (except NR Series Engine)

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH,

Hide Display 67918A 18.REMOVE REAR DOOR SCUFF PLATE LH (except NR Series Engine)

for Gasoline Model:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0002,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0002,

Hide Display 67917A 19.REMOVE REAR DOOR SCUFF PLATE RH (except NR Series Engine)

for Gasoline Model:

HINT:: Use the same procedure as for the LH side.

Hide Display 67918A 20.REMOVE REAR DOOR SCUFF PLATE LH (except NR Series Engine)

for HV Model:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0308,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0308,

Hide Display 67917A 21.REMOVE REAR DOOR SCUFF PLATE RH (except NR Series Engine)

for HV Model:

HINT:: Use the same procedure as for the LH side.

Hide Display 76974F 22.REMOVE REAR UNDER SIDE COVER LH (except NR Series Engine)

for HV Model:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0311,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0311,

Hide Display 76973F 23.REMOVE REAR UNDER SIDE COVER RH (except NR Series Engine)

for HV Model:

HINT:: Use the same procedure as for the LH side.

Hide Display 62332A 24.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH (except NR Series Engine)

Hide Display 62331A 25.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH (except NR Series Engine)

HINT:: Use the same procedure as for the LH side.

Hide Display 62552F 26.REMOVE REAR SEAT SIDE GARNISH LH (except NR Series Engine)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0195,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0195,

Hide Display 62551F 27.REMOVE REAR SEAT SIDE GARNISH RH (except NR Series Engine)

HINT:: Use the same procedure as for the LH side.

Hide Display 62472A 28.REMOVE ROOF SIDE INNER GARNISH LH (except NR Series Engine)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0301,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0301,

Hide Display 62471A 29.REMOVE ROOF SIDE INNER GARNISH RH (except NR Series Engine)

HINT:: Use the same procedure as for the LH side.

Hide Display 81006 30.REMOVE CENTER STOP LIGHT SET (except NR Series Engine)

Click hereVehicle Exterior>LIGHTING (EXT)>HIGH MOUNTED STOP LIGHT ASSEMBLY>REMOVAL202304,999999,_59,_080784,_0393168,RM100000002B2CI,

Hide Display 64322A 31.REMOVE PACKAGE TRAY TRIM BRACKET LH (except NR Series Engine)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL202304,202307,_58,_080748,_0391781,RM100000002AV14_01_0238,202307,202406,_58,_080748,_0391781,RM100000002D1KH_01_0238,202406,999999,_58,_080748,_0391781,RM100000002N5WY_01_0238,

Hide Display 64321F 32.REMOVE PACKAGE TRAY TRIM BRACKET RH (except NR Series Engine)

HINT:: Use the same procedure as for the LH side.

Hide Display 73373F 33.REMOVE REAR SEAT SHOULDER BELT HOLE COVER (except NR Series Engine)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL202304,202307,_58,_080748,_0391781,RM100000002AV14_01_0253,202307,202406,_58,_080748,_0391781,RM100000002D1KH_01_0253,202406,999999,_58,_080748,_0391781,RM100000002N5WY_01_0253,

Hide Display 64330 34.REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (except NR Series Engine)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL202304,202307,_58,_080748,_0391781,RM100000002AV14_01_0239,202307,202406,_58,_080748,_0391781,RM100000002D1KH_01_0239,202406,999999,_58,_080748,_0391781,RM100000002N5WY_01_0239,

Hide Display 897A0A 35.REMOVE DOOR CONTROL AND TIRE PRESSURE WARNING ECU AND RECEIVER (except NR Series Engine)

w/o Smart Entry and Start System:

NOTICE:: ·

Do not drop, strike or otherwise subject the door control and tire pressure warning ECU and receiver to impact.

·

If the door control and tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.

w/ Package Tray Trim Pad:

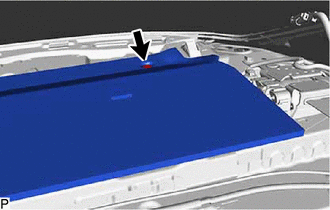

Remove the clip.

ii.

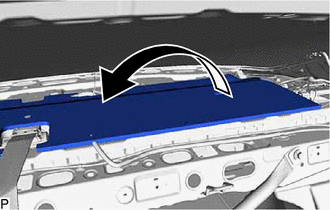

Turn back the package tray trim pad as shown in the illustration.

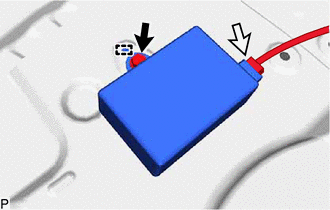

Remove the bolt.

Disengage the guide.

Disconnect the connector to remove the door control and tire pressure warning ECU and receiver.

Hide Display 897B0A 36.REMOVE ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER (except NR Series Engine)

w/ Smart Entry and Start System:

NOTICE:: ·

Do not drop, strike or otherwise subject the electrical key and tire pressure warning ECU and receiver to impact.

·

If the electrical key and tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.

w/ Package Tray Trim Pad:

Remove the clip.

ii.

Turn back the package tray trim pad as shown in the illustration.

Remove the bolt.

Disengage the guide.

Disconnect the connector to remove the electrical key and tire pressure warning ECU and receiver.
