THEFT DETERRENT / KEYLESS ENTRY DIGITAL KEY RECEIVER(for Outside Luggage Compartment) REMOVAL
PROCEDURE
1.REMOVE REAR BUMPER ASSEMBLY (for TFTM Made)
2.REMOVE REAR BUMPER ASSEMBLY (for GTMC Made)
89997
3.REMOVE ELECTRICAL KEY ANTENNA
4.REMOVE BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY
a.

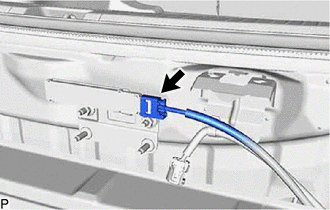

Disconnect the connector.
b.

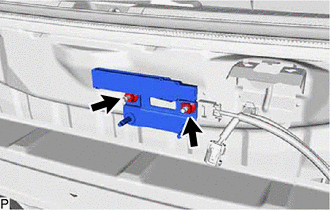

Remove the 2 nuts and remove the ble luggage digital key receiver assembly.
- NOTICE:
-
Be careful when removing the digital key receiver. If the digital key receiver is dropped, replace it with a new one.
