RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392549 REAR BUMPER(for GTMC Made) A

EXTERIOR PANELS / TRIM  REAR BUMPER(for GTMC Made)  REMOVAL


PROCEDURE

Hide 81497 2.REMOVE REAR COMBINATION LIGHT COVER RH

HINT:

Use the same procedure as for the LH side.


Hide 3.REMOVE REAR BUMPER ASSEMBLY

a.

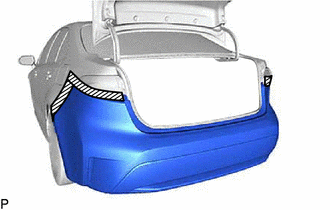

B536257C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the rear bumper assembly as shown in the illustration.


b.

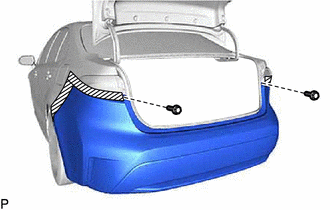

B536260

Remove the 2 screws.


c.

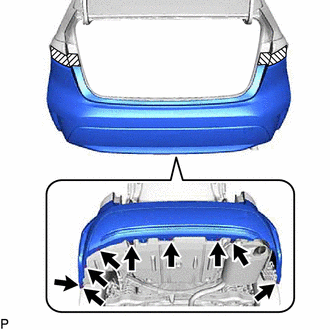

B536259

Remove the 9 clips.


d.

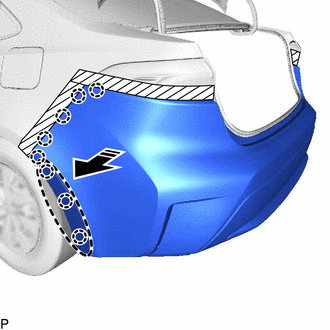

B536261C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Disengage the 8 claws as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



e.

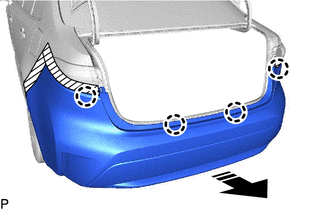

B536262C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 4 claws as shown in the illustration.


f.

Remove the rear bumper assembly.
