RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392550 REAR BUMPER(for TFTM Made) A

EXTERIOR PANELS / TRIM REAR BUMPER(for TFTM Made) REMOVAL

CAUTION / NOTICE / HINT

HINT:
w/ Parking Support Brake System:: When the rear bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.; Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING SUPPORT BRAKE SYSTEM>CALIBRATION202304,999999,_56,_080754,_0470654,RM100000002AHFT,

PROCEDURE

Hide Display 81498 1.REMOVE REAR COMBINATION LIGHT COVER LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>REMOVAL201906,999999,_59,_080784,_0393161,RM100000001HW5B_04_0013,

Hide Display 81497 2.REMOVE REAR COMBINATION LIGHT COVER RH

HINT:: Use the same procedure as for the LH side.

Hide Display 3.REMOVE REAR BUMPER ASSEMBLY

a.

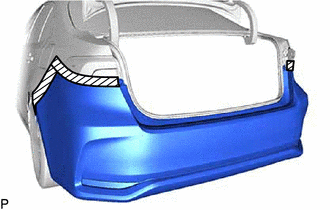

B536380C01

0,0 0,0 false

V100155

Protective Tape

Apply protective tape around the rear bumper assembly as shown in the illustration.

b.

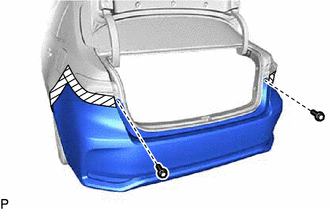

B536384

Remove the 2 screws.

c.

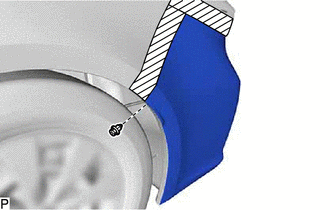

B536381

Remove the clip.

HINT:: Use the same procedure for the RH side and LH side.

d.

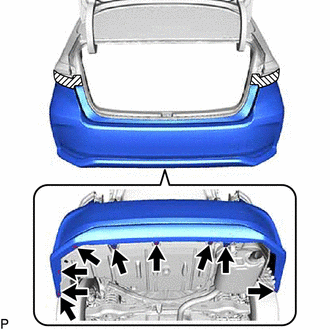

B536382

Remove the 9 clips.

e.

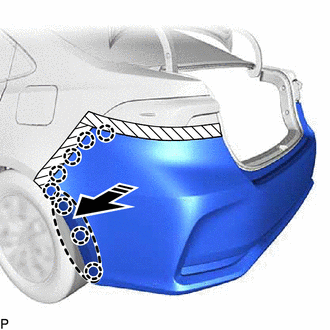

B536383C01

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Disengage the 8 claws as shown in the illustration.

HINT:: Use the same procedure for the RH side and LH side.

f.

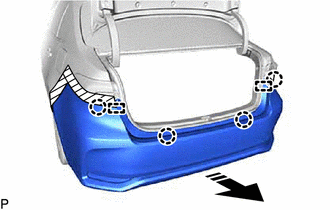

B536385C01

0,0 0,0 false

V113147

Remove in this Direction

Disengage the 4 claws and 2 guides to remove the rear bumper assembly as shown in the illustration.

g.

w/ Parking Support Brake System:

i.

Disconnect the connector.
