THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Entry Function (NR Series))  Front Passenger Side Door Entry Unlock Function does not Operate


DESCRIPTION

If the entry unlock function does not operate for the front passenger door only, but the entry lock function operates, the request code is being transmitted properly from the front passenger door. In this case, there may be a problem related to the unlock sensor (connection between the certification ECU (smart key ECU assembly) and front door outside handle assembly (for front passenger door)).

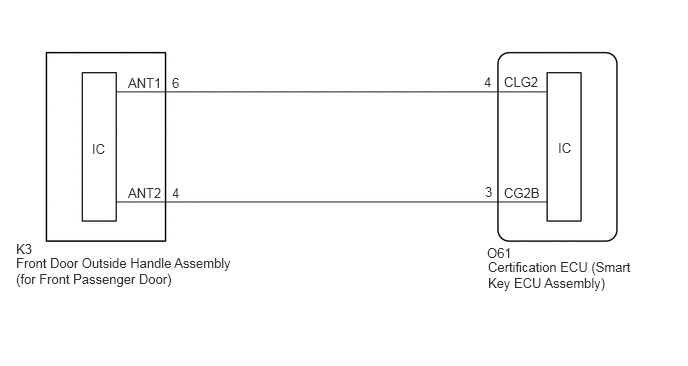

WIRING DIAGRAM

B506722E35
1.333,0.781 1.948,0.979 0.615,0.198 10 false ANT1 1.333,1.927 1.948,2.125 0.615,0.198 10 false ANT2 1.792,0.781 2,1 0.208,0.219 10 false 6 1.792,1.927 1.948,2.125 0.156,0.198 10 false 4 0.167,2.51 1.344,2.781 1.177,0.271 10 false K3 5.25,0.771 5.865,0.969 0.615,0.198 10 false CLG2 5.25,1.927 5.865,2.125 0.615,0.198 10 false CG2B 5.073,2.552 5.396,2.781 0.323,0.229 10 false O61 5.042,0.771 5.25,0.99 0.208,0.219 10 false 4 5.052,1.917 5.26,2.135 0.208,0.219 10 false 3 0.958,1.469 1.115,1.667 0.156,0.198 10 false IC 5.813,1.458 5.969,1.656 0.156,0.198 10 false IC 0.167,2.656 2.458,3.083 2.292,0.427 10 false Front Door Outside Handle Assembly (for Front Passenger Door) 5.083,2.698 6.646,3.167 1.563,0.469 10 false Certification ECU (Smart Key ECU Assembly)

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the engine switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The smart entry and start system (for Entry Function) uses the CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Entry Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (NR Series))>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.

·

After repair, confirm that no DTCs are output.

·

Check that there are no electrical key transmitter sub-assemblies in the vehicle.



PROCEDURE

1.CHECK POWER DOOR LOCK CONTROL SYSTEM
a.

When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation.

Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM (for NR Series Engine)>OPERATION CHECK

OK:

Door locks operate normally.



Result:
Proceed to
OK
NG



OK

2.CHECK ENTRY OPERATION

NG

GO TO POWER DOOR LOCK CONTROL SYSTEM

Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM (for NR Series Engine)>HOW TO PROCEED WITH TROUBLESHOOTING


2.CHECK ENTRY OPERATION
a.

Check that the entry unlock function.

i.
B486121C02
1.865,1.573 2.396,0.813 2.396,0.813 2.594,0.813 false 2.635,0.729 2.948,0.927 0.313,0.198 10 false *a
*a Unlock Sensor (Backside)


Turn the engine switch off.


ii.

Open and close the front passenger door.


iii.

With the electrical key transmitter sub-assembly outside of the vehicle, press the lock switch of the electrical key transmitter sub-assembly to lock all of the doors.


iv.

Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly and approximately 0.3 m (0.984 ft.) from the front passenger door.


v.

Check that the LED of the electrical key transmitter sub-assembly blinks.


vi.

Touch the unlock sensor on the backside of the front door outside handle assembly (for front passenger door) for 2 seconds or more.*

*: Perform this step 3 seconds or more after performing step (3).


HINT:

When checking the operation of the unlock sensor again, make sure to perform the procedure from step (1).




Result:
Result Proceed to
Entry function does not operate normally A
Entry function operates normally B



A

3.READ VALUE USING GTS (FR DOOR LOCK POS)

B

GO TO CHECK FOR INTERMITTENT PROBLEMS (OPERATION HISTORY)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, Gasoline Model (NR Series))>CHECK FOR INTERMITTENT PROBLEMS


3.READ VALUE USING GTS (FR DOOR LOCK POS)
a.

Connect the GTS to the DLC3.


b.

Turn the engine switch on (IG).


c.

Turn the GTS on.


d.

Enter the following menus: Body Electrical / Main Body / Data List.


e.

Read the Data List according to the display on the GTS.

Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
FR Door Lock Pos Front door RH unlock detection switch signal UNLOCK or LOCK UNLOCK: Front door RH unlocked
LOCK: Front door RH locked 		-
Body Electrical > Main Body > Data List
Tester Display
FR Door Lock Pos
50003 123 196
OK:

The GTS display changes correctly in response to the lock/unlock operation of the front passenger door.



Result:
Proceed to
OK
NG



OK

4.READ VALUE USING GTS (P-DOOR TOUCH SENSOR)

NG

GO TO LIGHTING SYSTEM (Proceed to Door Unlock Detection Switch Circuit)

Click hereVehicle Interior>LIGHTING (INT)>LIGHTING SYSTEM (for NR Series Engine)>Door Unlock Detection Switch Circuit


4.READ VALUE USING GTS (P-DOOR TOUCH SENSOR)
a.
B486121C02
1.865,1.573 2.396,0.813 2.396,0.813 2.594,0.813 false 2.635,0.729 2.948,0.927 0.313,0.198 10 false *a
*a Unlock Sensor (Backside)


Turn the engine switch off.


b.

Connect the GTS to the DLC3.


c.

Turn the engine switch on (IG).


d.

Turn the GTS on.


e.

Open and close the front passenger door.


f.

With the electrical key transmitter sub-assembly outside of the vehicle, press the lock switch of the electrical key transmitter sub-assembly to lock all of the doors.


g.

Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly and approximately 0.3 m (0.984 ft.) from the front passenger door.


h.

Check that the LED of the electrical key transmitter sub-assembly blinks.


i.

Read the Data List according to the display on the GTS.


j.

Touch the unlock sensor on the backside of the front door outside handle assembly (for front passenger door) for 2 seconds or more.*

*: Perform this step 3 seconds or more after performing step (f).


HINT:

When checking the operation of the unlock sensor again, make sure to perform the procedure from step (a).


Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
P-Door Touch Sensor Front passenger door touch sensor (unlock sensor) OFF or ON OFF: Front passenger door touch sensor (unlock sensor) not touched
ON: Front passenger door touch sensor (unlock sensor) touched
·

Displays whether the unlock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily).

·

Use this Data List item to help determine if there is an unlock sensor malfunction when the entry unlock function does not operate.


Body Electrical > Entry&Start > Data List
Tester Display
P-Door Touch Sensor
50003 125 9
OK:

The GTS display changes correctly in response to the operation of the front door outside handle assembly (for front passenger door).



Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

5.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR))
5.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR))
a.

Disconnect the O61 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the K3 front door outside handle assembly (for front passenger door) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O61-4 (CLG2) - K3-6 (ANT1) Always Below 1 Ω
O61-3 (CG2B) - K3-4 (ANT2) Always Below 1 Ω
O61-4 (CLG2) or K3-6 (ANT1) - Other terminals and body ground Always 10 kΩ or higher
O61-3 (CG2B) or K3-4 (ANT2) - Other terminals and body ground Always 10 kΩ or higher



d.

Reconnect the K3 front door outside handle assembly (for front passenger door) connector.


e.

Reconnect the O61 certification ECU (smart key ECU assembly) connector.


Result:
Proceed to
OK
NG



OK

6.READ VALUE USING GTS (P-DOOR TOUCH SENSOR)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.READ VALUE USING GTS (P-DOOR TOUCH SENSOR)
a.
B486121C02
1.865,1.573 2.396,0.813 2.396,0.813 2.594,0.813 false 2.635,0.729 2.948,0.927 0.313,0.198 10 false *a
*a Unlock Sensor (Backside)


Turn the engine switch off.


b.

Connect all connectors.


c.

Connect the GTS to the DLC3.


d.

Turn the engine switch on (IG).


e.

Turn the GTS on.


f.

Open and close the front passenger door.


g.

With the electrical key transmitter sub-assembly outside of the vehicle, press the lock switch of the electrical key transmitter sub-assembly to lock all of the doors.


h.

Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly and approximately 0.3 m (0.984 ft.) from the front passenger door.


i.

Check that the LED of the electrical key transmitter sub-assembly blinks.


j.

Read the Data List according to the display on the GTS.


k.

Touch the unlock sensor on the backside of the front door outside handle assembly (for front passenger door) for 2 seconds or more.*

*: Perform this step 3 seconds or more after performing step (g).


HINT:

When checking the operation of the unlock sensor again, make sure to perform the procedure from step (a).


Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
P-Door Touch Sensor Front passenger door touch sensor (unlock sensor) OFF or ON OFF: Front passenger door touch sensor (unlock sensor) not touched
ON: Front passenger door touch sensor (unlock sensor) touched
·

Displays whether the unlock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily).

·

Use this Data List item to help determine if there is an unlock sensor malfunction when the entry unlock function does not operate.


Body Electrical > Entry&Start > Data List
Tester Display
P-Door Touch Sensor
50003 125 9
OK:

The GTS display changes correctly in response to the operation of the front door outside handle assembly (for front passenger door).



Result:
Proceed to
OK
NG



OK

END (CONNECTOR WAS NOT CONNECTED SECURELY)

NG

REPLACE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR)

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY
