THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Start Function, Gasoline Model (NR Series))  Security Indicator Light Does not Blink


DESCRIPTION

·

The certification ECU (smart key ECU assembly) blinks the security indicator light when the immobiliser is set (engine switch off).

·

The certification ECU (smart key ECU assembly) receives the security indicator light signal from the main body ECU (multiplex network body ECU) via CAN communication when the theft deterrent system is in the arming preparation state or alarm sounding state. Then, the certification ECU (smart key ECU assembly) blinks the security indicator light.

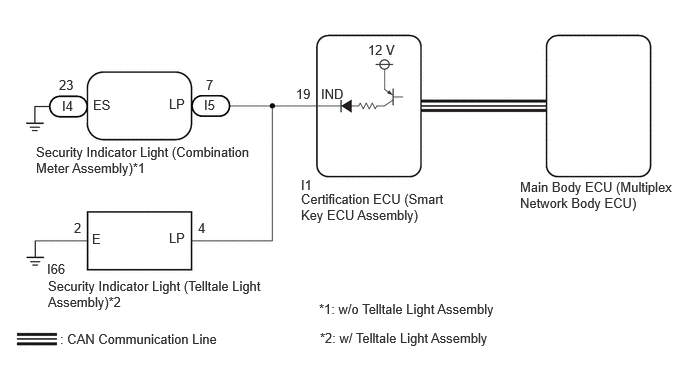

WIRING DIAGRAM

B608196E02
0.615,0.802 0.927,1 0.313,0.198 10 false 23 0.646,1.021 0.969,1.229 0.323,0.208 10 false I4 2.125,1.01 2.438,1.208 0.313,0.198 10 false I5 2.146,0.802 2.333,1.271 0.188,0.469 10 false 7 0.969,1.01 1.281,1.208 0.313,0.198 10 false ES 1.76,1 2.073,1.198 0.313,0.198 10 false LP 0.375,1.5 2.646,2.604 2.271,1.104 10 false Security Indicator Light (Combination Meter Assembly)*1 0.625,3.448 4.292,3.646 3.667,0.198 10 false : CAN Communication Line 3.083,0.896 3.396,1.094 0.313,0.198 10 false 19 3.344,0.896 3.802,1.094 0.458,0.198 10 false IND 3.833,0.438 4.448,0.635 0.615,0.198 10 false 12 V 3.135,1.844 3.594,2.042 0.458,0.198 10 false I1 3.135,1.99 4.677,2.75 1.542,0.76 10 false Certification ECU (Smart Key ECU Assembly) 5.417,1.865 7.073,2.656 1.656,0.792 10 false Main Body ECU (Multiplex Network Body ECU) 0.5,2.896 2.781,3.302 2.281,0.406 10 false Security Indicator Light (Telltale Light Assembly)*2 3.323,3.135 7.146,3.458 3.823,0.323 10 false *1: w/o Telltale Light Assembly 3.333,3.438 7.156,3.76 3.823,0.323 10 false *2: w/ Telltale Light Assembly 0.958,2.406 1.271,2.604 0.313,0.198 10 false E 1.76,2.396 2.073,2.594 0.313,0.198 10 false LP 2.063,2.292 2.25,2.677 0.188,0.385 10 false 4 0.771,2.292 1.094,2.5 0.323,0.208 10 false 2 0.49,2.719 0.802,2.917 0.313,0.198 10 false I66

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the engine switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The smart entry and start system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Start Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, Gasoline Model (NR Series))>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the certification ECU (smart key ECU assembly) or main body ECU (multiplex network body ECU), refer to Service Bulletin.



PROCEDURE

1.CHECK FOR DTC
a.

Check for DTCs.

Body Electrical > Entry&Start > Trouble Codes
50001 125
Powertrain > Engine > Trouble Codes
50001 372
OK:

DTCs are not output.



Result:
Proceed to
OK
NG



OK

2.PERFORM ACTIVE TEST USING GTS (IMMOBILISER INDICATOR)

NG

GO TO DIAGNOSTIC TROUBLE CODE CHART

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, Gasoline Model (NR Series))>DIAGNOSTIC TROUBLE CODE CHART


2.PERFORM ACTIVE TEST USING GTS (IMMOBILISER INDICATOR)
a.

Connect the GTS to the DLC3.


b.

Turn the engine switch on (IG).


c.

Turn the GTS on.


d.

Enter the following menus: Body Electrical / Entry&Start / Active Test.


e.

Perform the Active Test according to the display on the GTS.

Body Electrical > Entry&Start > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Immobiliser Indicator Security indicator light OFF/ON -
Body Electrical > Entry&Start > Active Test
Tester Display
Immobiliser Indicator
50004 125 28
OK:

The security indicator light operates normally.



Result:
Result Proceed to
OK A
NG (w/o Telltale Light Assembly) B
NG (w/ Telltale Light Assembly) C



A

3.CHECK SECURITY INDICATOR LIGHT OPERATION

B

4.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - SECURITY INDICATOR LIGHT (COMBINATION METER ASSEMBLY) AND BODY GROUND)

C

6.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - SECURITY INDICATOR LIGHT (TELLTALE LIGHT ASSEMBLY) AND BODY GROUND)
3.CHECK SECURITY INDICATOR LIGHT OPERATION
a.

When the immobiliser is set, check that the security indicator light blinks.*1

OK:

The security indicator light blinks normally.



b.

When the theft deterrent system is in the arming preparation state, check that the security indicator light illuminates.*2

OK:

The security indicator light illuminates normally.



Result:
Result Proceed to
*1 is NG (*2 is OK) A
*2 is NG (*1 is OK) B



A

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

B

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


4.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - SECURITY INDICATOR LIGHT (COMBINATION METER ASSEMBLY) AND BODY GROUND)
a.

Disconnect the I1 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the I4 and I5 security indicator light (combination meter assembly) connectors.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I1-19 (IND) - I5-7 (LP) Always Below 1 Ω
I1-19 (IND) or I5-7 (LP) - Other terminals and body ground Always 10 kΩ or higher
I4-23 (ES) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

5.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
a.

Connect the I1 certification ECU (smart key ECU assembly) connectors.


b.

Connect the I4 and I5 security indicator light (combination meter assembly) connectors.


c.

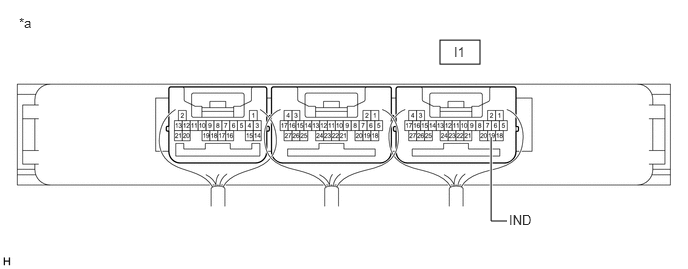

Using an oscilloscope, check the waveform.

B416787C66
4.583,0.417 5,0.667 0.417,0.25 5.281,2.302 5.115,2.302 5.115,2.302 5.115,1.427 true 4.729,0.458 5.042,0.656 0.313,0.198 10 false I1 0.198,0.156 0.51,0.354 0.313,0.198 10 false *a 5.302,2.208 5.76,2.417 0.458,0.208 10 false IND
*a Component with harness connected
(Certification ECU (Smart Key ECU Assembly)) 		- -


Measurement Condition:
Tester Connection Condition Specified Condition
I1-19 (IND) - Body ground Engine switch off → on (IG) Pulse generation → Below 2 V



Result:
Proceed to
OK
NG



OK

REPLACE SECURITY INDICATOR LIGHT (COMBINATION METER ASSEMBLY)

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

6.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - SECURITY INDICATOR LIGHT (TELLTALE LIGHT ASSEMBLY) AND BODY GROUND)
a.

Disconnect the I1 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the I66 security indicator light (telltale light assembly) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I1-19 (IND) - I66-4 (LP) Always Below 1 Ω
I1-19 (IND) or I66-4 (LP) - Other terminals and body ground Always 10 kΩ or higher
I66-2 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

7.INSPECT SECURITY INDICATOR LIGHT (TELLTALE LIGHT ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.INSPECT SECURITY INDICATOR LIGHT (TELLTALE LIGHT ASSEMBLY)
a.

Remove the telltale light assembly.


b.

Inspect the telltale light assembly.


Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPLACE SECURITY INDICATOR LIGHT (TELLTALE LIGHT ASSEMBLY)
