ADVANCED DRIVER ASSISTANCE SYSTEM MILLIMETER WAVE RADAR SENSOR(for NR Series Engine) INSTALLATION
PROCEDURE
88211B

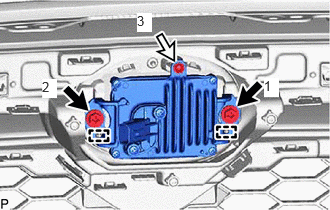

1.INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (for TFTM Made)
- NOTICE:
-
If the millimeter wave radar sensor assembly has been struck or dropped, replace the millimeter wave radar sensor assembly with a new one.
|
Bolt |
|
Screw |
Engage the 2 guides.
Install the millimeter wave radar sensor assembly with the 2 bolts and screw.
- Torque:
- Bolt : 2.5 N*m (25 kgf*cm, 22 in.*lbf)
- HINT:
-
Tighten the bolts and screw in the order shown in the illustration.
Install the radiator grille to the upper radiator grille.
2.INSTALL RADIATOR GRILLE ASSEMBLY (for TFTM Made)
3.INSTALL FRONT BUMPER ASSEMBLY (for TFTM Made)
88211B

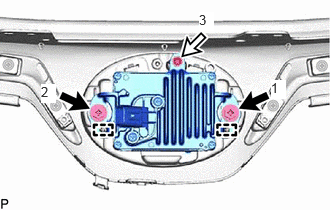

4.INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (for GTMC Made)
- NOTICE:
-
If the millimeter wave radar sensor assembly has been struck or dropped, replace the millimeter wave radar sensor assembly with a new one.
|
|
Bolt |
|
|
Screw |
Engage the 2 guides.
Install the millimeter wave radar sensor assembly with the 2 bolts and screw.
- Torque:
- Bolt : 2.5 N*m (25 kgf*cm, 22 in.*lbf)
- HINT:
-
Tighten the bolts and screw in the order shown in the illustration.
Install the inner radiator grille.
except Sport Package: Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REASSEMBLY202304,999999,_59,_080736,_0392547,RM100000002AXCO_02_0022,
for Sport Package: Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REASSEMBLY202304,999999,_59,_080736,_0392547,RM100000002AXCO_02_0075,
5.INSTALL FRONT BUMPER ASSEMBLY (for GTMC Made)
6.ADJUST MILLIMETER WAVE RADAR SENSOR
When the millimeter wave radar sensor assembly is replaced with a new one, adjustment of the radar sensor beam axis must be performed.
