RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392548 FRONT BUMPER(for TFTM Made) A

EXTERIOR PANELS / TRIM FRONT BUMPER(for TFTM Made) INSTALLATION

CAUTION / NOTICE / HINT

HINT:
except NR Series Engine:: When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.; Target Adjustment (Triangle Target):; Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>TARGET ADJUSTMENT(TRIANGLE TARGET)202307,999999,_95,_139716,_0584197,RM100000002D3IS,; Target Adjustment (Flat Surface Target):; Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>TARGET ADJUSTMENT(FLAT SURFACE TARGET)202307,999999,_95,_139716,_0584197,RM100000002D3IR,; Driving Adjustment:; Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>DRIVING ADJUSTMENT202307,999999,_95,_139716,_0584197,RM100000002D3IU,

HINT:
for NR Series Engine:: When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.; Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (for NR Series Engine)>ADJUSTMENT202304,999999,_95,_139716,_0584842,RM1000000029I3E,

CAUTION / NOTICE / HINT

HINT:
w/ Parking Support Brake System:: When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING SUPPORT BRAKE SYSTEM>CALIBRATION202304,999999,_56,_080754,_0470654,RM100000002AHFT,

PROCEDURE

Hide Display 1.INSTALL FRONT BUMPER ASSEMBLY

for COROLLA:

0,0 0,0 false

Install in this Direction

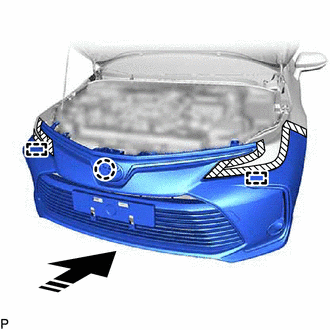

Move the front bumper assembly into position and engage the 2 guides and claw as shown in the illustration.

ii.

Install the 2 clips.

iii.

Install the 2 screws and bolt.

iv.

Connect the connector.

for LH Side with Fog Light:

Pull back the side of the front bumper assembly and connect the connector.

NOTICE:: Do not apply excessive force when pulling back the front bumper assembly.

Engage the clamp.

vi.

for RH Side with Fog Light:

Pull back the side of the front bumper assembly and connect the connector.

NOTICE:: Do not apply excessive force when pulling back the front bumper assembly.

Engage the 2 clamps.

vii.

0,0 0,0 false

Install in this Direction

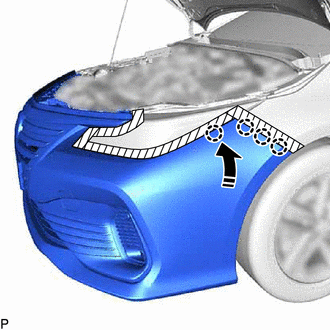

Engage the 4 claws as shown in the illustration.

HINT:: Use the same procedure for the RH side and LH side.

viii.

Install the 10 screws.

ix.

Install the front bumper assembly with the clip.

HINT:: Use the same procedure for the RH side and LH side.

0,0 0,0 false

Install in this Direction

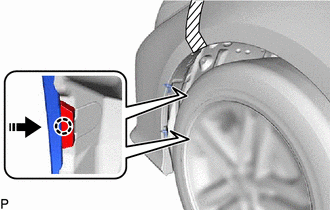

Engage the 2 claws as shown in the illustration.

HINT:: Use the same procedure for the RH side and LH side.

for ALLION:

Connect the 3 connectors.

ii.

0,0 0,0 false

Install in this Direction

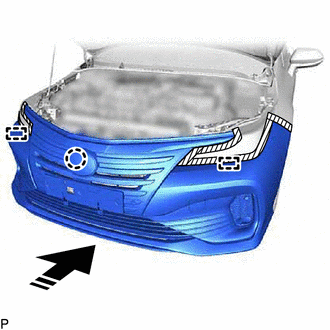

Move the front bumper assembly into position and engage the 2 guides and claw as shown in the illustration.

iii.

Install the 2 clips.

iv.

Install the 2 screws and bolt.

Connect each connector.

vi.

0,0 0,0 false

Install in this Direction

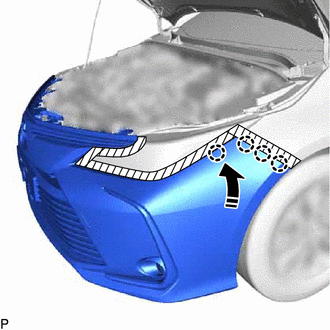

Engage the 4 claws as shown in the illustration.

HINT:: Use the same procedure for the RH side and LH side.

vii.

Install the 10 screws.

viii.

Install the front bumper assembly with the clip.

HINT:: Use the same procedure for the RH side and LH side.

ix.

0,0 0,0 false

Install in this Direction

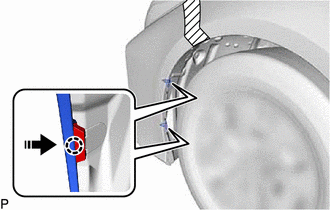

Engage the 2 claws as shown in the illustration.

HINT:: Use the same procedure for the RH side and LH side.

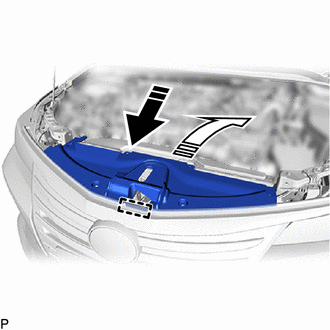

Hide Display 53289A 2.INSTALL RADIATOR SUPPORT OPENING COVER (for Gasoline Model)

for NR Series Engine:

0,0 0,0 false

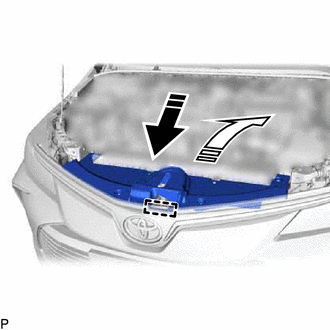

	Install in this Direction (1)
	Install in this Direction (2)

Engage the guide as shown in the illustration.

ii.

Install the radiator support opening cover with the 8 clips.

except NR Series Engine:

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Engage the guide as shown in the illustration.

ii.

Install the radiator support opening cover with the 7 clips.

Hide Display 53289A 3.INSTALL RADIATOR SUPPORT OPENING COVER (for HV Model)

for COROLLA:

0,0 0,0 false

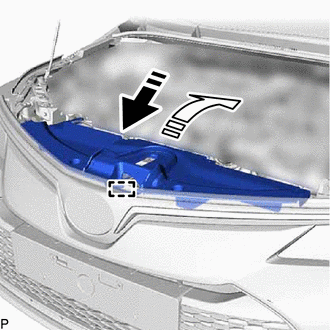

	Install in this Direction (1)
	Install in this Direction (2)

Engage the guide as shown in the illustration.

ii.

Install the radiator support opening cover with the 6 clips.

for ALLION:

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Engage the guide as shown in the illustration.

ii.

Install the radiator support opening cover with the 7 clips.

Hide Display 4.ADJUST FOG LIGHT ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>FOG LIGHT ASSEMBLY>ADJUSTMENT201906,999999,_59,_080784,_0393157,RM100000001HW4U,

Hide Display 5.PERFORM CALIBRATION (w/ Panoramic View Monitor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PANORAMIC VIEW MONITOR SYSTEM>CALIBRATION202307,999999,_56,_080754,_0612151,RM100000002CL9H,
