EXTERIOR PANELS / TRIM  FRONT BUMPER(for GTMC Made)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
except NR Series Engine:

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.

Target Adjustment (Triangle Target):

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>TARGET ADJUSTMENT(TRIANGLE TARGET)

Target Adjustment (Flat Surface Target):

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>TARGET ADJUSTMENT(FLAT SURFACE TARGET)

Driving Adjustment:

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>DRIVING ADJUSTMENT


HINT:
for NR Series Engine:

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (for NR Series Engine)>ADJUSTMENT


PROCEDURE

Hide 1.INSTALL FRONT BUMPER ASSEMBLY (except Sport Package)

a.

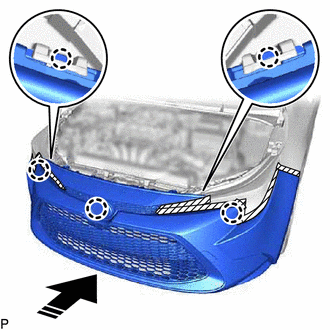

B536328C01
0,0 0,0 false
V113147

Install in this Direction


Move the front bumper assembly into position and engage the 5 claws as shown in the illustration.


b.

Install the bolt and 2 screws.


c.

Connect the connector.


d.

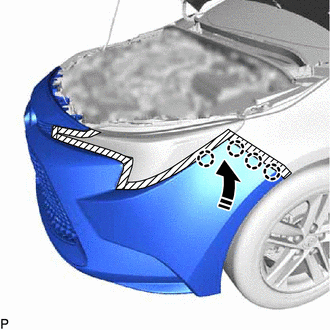

B545539C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 4 claws as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



e.

Install the 10 screws.


f.

Install the front bumper assembly with the clip.

HINT:

Use the same procedure for the RH side and LH side.



g.

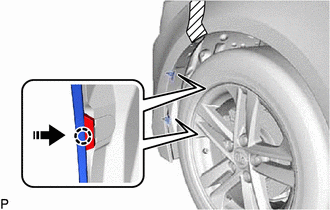

B609960C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



Hide 2.INSTALL FRONT BUMPER ASSEMBLY (for Sport Package)

a.

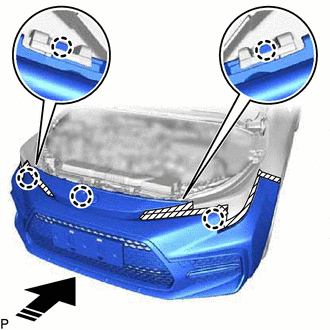

B570817C01
0,0 0,0 false
V113147

Install in this Direction


Move the front bumper assembly into position and engage the 5 claws as shown in the illustration.


b.

Install the bolt and 2 screws.


c.

Connect the connector.


d.

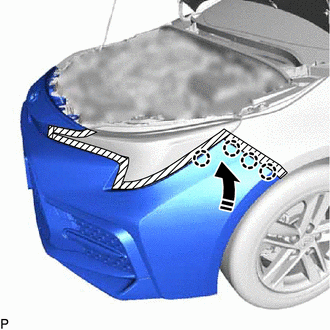

B570818C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 4 claws as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



e.

Install the 10 screws.


f.

Install the front bumper assembly with the clip.

HINT:

Use the same procedure for the RH side and LH side.



g.
B609960C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws to install the 2 pin hold clips as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



Hide 53289A 3.INSTALL RADIATOR SUPPORT OPENING COVER (for Gasoline Model)

a.

for NR Series Engine:

i.

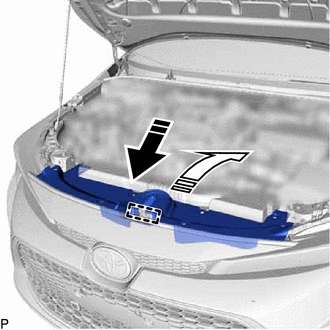

B545541C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the guide as shown in the illustration.


ii.

Install the radiator support opening cover with the 8 clips.



b.

except NR Series Engine:

i.

Install the radiator support opening cover with the 7 clips.



Hide 53289A 4.INSTALL RADIATOR SUPPORT OPENING COVER (for HV Model)

a.

for LEVIN:

i.

Install the radiator support opening cover with the 6 clips.



b.

for LEVIN GT:

i.

Install the radiator support opening cover with the 7 clips.
