ADVANCED DRIVER ASSISTANCE SYSTEM MILLIMETER WAVE RADAR SENSOR(for NR Series Engine) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are replaced during millimeter wave radar sensor assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Millimeter wave radar sensor assembly	Adjust millimeter wave radar sensor assembly	· Dynamic Radar Cruise Control System · Lane Tracing Assist System · Front Radar Sensor System · Pre-collision System · Automatic High Beam System	(202304,999999,_95,_139716,_0584842,RM1000000029I3E,)

PROCEDURE

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY (for TFTM Made)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>REMOVAL202304,202307,_59,_080736,_0392548,RM100000002AMO3,202307,999999,_59,_080736,_0392548,RM100000002CH8T,

Hide Display 2.REMOVE RADIATOR GRILLE ASSEMBLY (for TFTM Made)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>DISASSEMBLY202304,202307,_59,_080736,_0392548,RM100000002AMO4_01_0351,202307,999999,_59,_080736,_0392548,RM100000002CH8U_01_0351,

Hide Display 88211B 3.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (for TFTM Made)

Remove the radiator grille from the upper radiator grille.

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>DISASSEMBLY202304,202307,_59,_080736,_0392548,RM100000002AMO4_01_0388,202307,999999,_59,_080736,_0392548,RM100000002CH8U_01_0388,

0,0 0,0 false

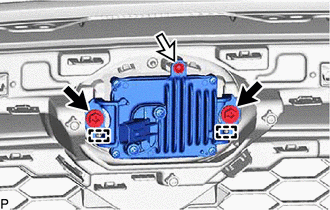

	Bolt
	Screw

Remove the 2 bolts and screw.

Disengage the 2 guides and remove the millimeter wave radar sensor assembly.

NOTICE:: Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.

Hide Display 4.REMOVE FRONT BUMPER ASSEMBLY (for GTMC Made)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REMOVAL202304,202307,_59,_080736,_0392547,RM100000002AXCM,202307,999999,_59,_080736,_0392547,RM100000002CHFA,

Hide Display 88211B 5.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (for GTMC Made)

Remove the inner radiator grille.

except Sport Package: Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>DISASSEMBLY202304,999999,_59,_080736,_0392547,RM100000002AXCN_01_0351,

for Sport Package: Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>DISASSEMBLY202304,999999,_59,_080736,_0392547,RM100000002AXCN_01_0403,

0,0 0,0 false

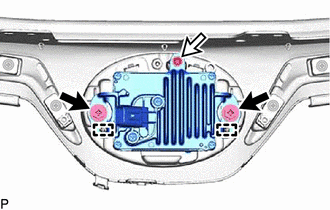

	Bolt
	Screw

Remove the 2 bolts and screw.

Disengage the 2 guides and remove the millimeter wave radar sensor assembly.

NOTICE:: Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.
