NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM(w/o RST Switch (except 10.25 Inch Display))  U11D087  Lost Local Communication with MET Missing Message


DESCRIPTION

These DTC is stored when the navigation receiver assembly detects a communication malfunction with the combination meter assembly.

DTC No. Detection Item DTC Detection Condition Trouble Area
U11D087 Lost Local Communication with MET Missing Message Communication malfunction between navigation receiver assembly and combination meter assembly for 30 seconds or more
(2 trip detection logic)
·

Open or short in local bus circuit

·

Harness or connector

·

Combination meter assembly

·

Navigation receiver assembly



WIRING DIAGRAM

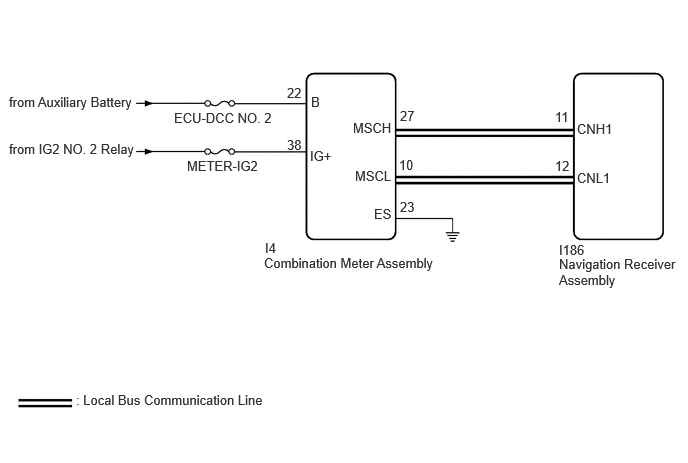

for Optitron Meter Type
E491849E01
0.094,0.979 1.719,1.26 1.625,0.281 10 false from Auxiliary Battery 0.094,1.469 1.74,1.875 1.646,0.406 10 false from IG2 NO. 2 Relay 1.813,1.146 2.896,1.385 1.083,0.24 10 false ECU-DCC NO. 2 2.99,0.885 3.229,1.104 0.24,0.219 10 false 22 2.99,1.427 3.229,1.646 0.24,0.219 10 false 38 3.24,0.979 3.479,1.198 0.24,0.219 10 false B 3.229,1.542 3.583,1.823 0.354,0.281 10 false IG+ 3.677,1.25 4.135,1.469 0.458,0.219 10 false MSCH 3.698,1.75 4.156,1.969 0.458,0.219 10 false MSCL 2.75,2.656 4.583,2.896 1.833,0.24 10 false Combination Meter Assembly 2.76,2.5 3.219,2.719 0.458,0.219 10 false I4 3.896,2.146 4.146,2.333 0.25,0.188 10 false ES 6.01,1.26 6.417,1.427 0.406,0.167 10 false CNH1 6.01,1.771 6.396,1.958 0.385,0.188 10 false CNL1 5.823,2.521 6.281,2.74 0.458,0.219 10 false I186 5.823,2.667 7.042,3.115 1.219,0.448 10 false Navigation Receiver Assembly 5.781,1.135 6.021,1.354 0.24,0.219 10 false 11 5.781,1.646 6.021,1.865 0.24,0.219 10 false 12 0.792,4.083 2.802,4.281 2.01,0.198 10 false : Local Bus Communication Line 4.167,1.125 4.625,1.344 0.458,0.219 10 false 27 4.156,1.635 4.615,1.854 0.458,0.219 10 false 10 4.167,2.073 4.625,2.292 0.458,0.219 10 false 23 1.948,1.646 3.594,2.052 1.646,0.406 10 false METER-IG2

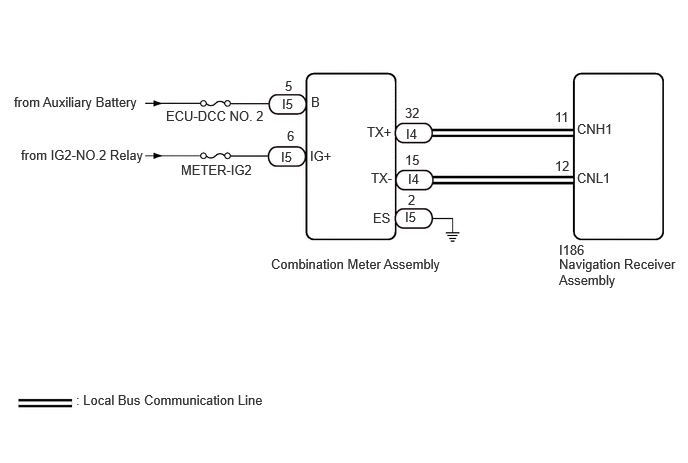

for TFT Meter Type
E491848E01
0.146,0.979 1.771,1.26 1.625,0.281 10 false from Auxiliary Battery 0.219,1.531 1.875,1.938 1.656,0.406 10 false from IG2-NO.2 Relay 1.729,1.125 2.802,1.406 1.073,0.281 10 false ECU-DCC NO. 2 2.969,0.813 3.208,1.031 0.24,0.219 10 false 5 2.99,1.333 3.229,1.552 0.24,0.219 10 false 6 3.24,0.979 3.479,1.198 0.24,0.219 10 false B 3.229,1.542 3.583,1.823 0.354,0.281 10 false IG+ 3.823,1.292 4.281,1.51 0.458,0.219 10 false TX+ 3.865,1.771 4.323,1.99 0.458,0.219 10 false TX- 2.823,2.667 4.656,2.906 1.833,0.24 10 false Combination Meter Assembly 4.25,1.781 4.708,2 0.458,0.219 10 false I4 3.885,2.188 4.135,2.375 0.25,0.188 10 false ES 6.01,1.26 6.417,1.427 0.406,0.167 10 false CNH1 6.01,1.771 6.396,1.958 0.385,0.188 10 false CNL1 5.823,2.521 6.281,2.74 0.458,0.219 10 false I186 5.823,2.667 7.042,3.115 1.219,0.448 10 false Navigation Receiver Assembly 5.781,1.135 6.021,1.354 0.24,0.219 10 false 11 5.781,1.646 6.021,1.865 0.24,0.219 10 false 12 0.792,4.083 2.802,4.281 2.01,0.198 10 false : Local Bus Communication Line 4.219,1.094 4.677,1.313 0.458,0.219 10 false 32 4.219,1.583 4.677,1.802 0.458,0.219 10 false 15 4.25,2 4.708,2.219 0.458,0.219 10 false 2 2.938,1 3.177,1.219 0.24,0.219 10 false I5 2.927,1.552 3.167,1.771 0.24,0.219 10 false I5 4.219,2.177 4.458,2.396 0.24,0.219 10 false I5 4.229,1.313 4.688,1.531 0.458,0.219 10 false I4 1.885,1.688 3.542,2.094 1.656,0.406 10 false METER-IG2

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM (w/o RST Switch (except 10.25 Inch Display))>PRECAUTION

·

Inspect the fuses and relays related to this system before inspecting the suspected areas below.

·

When replacing the combination meter assembly, make sure to replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in the combination meter assembly will not match the information from the vehicle and a DTC may be stored.

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key, switches or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

·

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM (w/o RST Switch (except 10.25 Inch Display))>PRECAUTION

·

When disconnecting the cable from the negative (-) auxiliary battery terminal, refer toAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM (w/o RST Switch (except 10.25 Inch Display))>PRECAUTION

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM (w/o RST Switch (except 10.25 Inch Display))>PRECAUTION




HINT:
·

Before disconnecting related connectors for inspection, push in on the connector body to check that each connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK MODEL
Result:
Result Proceed to
for Optitron Meter Type A
for TFT Meter Type B



A

2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - COMBINATION METER ASSEMBLY)

B

4.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - COMBINATION METER ASSEMBLY)
2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - COMBINATION METER ASSEMBLY)
a.

Disconnect the I4 combination meter assembly connector.


b.

Disconnect the I186 navigation receiver assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I4-27 (MSCH) - I186-11 (CNH1) Always Below 1 Ω
I4-10 (MSCL) - I186-12 (CNL1) Always Below 1 Ω
I4-27 (MSCH) or I186-11 (CNH1) - Body Ground Always 10 kΩ or higher
I4-10 (MSCL) or I186-12 (CNL1) - Body Ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.INSPECT NAVIGATION RECEIVER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT NAVIGATION RECEIVER ASSEMBLY

Pre-procedure1

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I4 combination meter assembly connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I4-27 (MSCH) - I4-10 (MSCL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


4.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - COMBINATION METER ASSEMBLY)
a.

Disconnect the I4 combination meter assembly connector.


b.

Disconnect the I186 navigation receiver assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I4-32 (TX+) - I186-11 (CNH1) Always Below 1 Ω
I4-15 (TX-) - I186-12 (CNL1) Always Below 1 Ω
I4-32 (TX+) or I186-11 (CNH1) - Body Ground Always 10 kΩ or higher
I4-15 (TX) or I186-12 (CNL1) - Body Ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

5.INSPECT NAVIGATION RECEIVER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.INSPECT NAVIGATION RECEIVER ASSEMBLY

Pre-procedure1

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I4 combination meter assembly connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I4-32 (TX+) - I4-15 (TX-) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL
