RM3660EC _56 Audio / Visual / Telematics _080752 NAVIGATION / MULTI INFO DISPLAY _0528911 NAVIGATION SYSTEM(w/o RST Switch (except 10.25 Inch Display)) C

NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM(w/o RST Switch (except 10.25 Inch Display))  B15DB87  Telematics Transceiver Missing Message


DESCRIPTION

When the navigation receiver assembly cannot detect the telematics transceiver, this DTC will be stored.

DTC No. Detection Item DTC Detection Condition Trouble Area
B15DB87 Telematics Transceiver Missing Message When 90 seconds has elapsed after turning the ignition switch to ON and the telematics transceiver cannot be detected, the telematics transceiver is judged to be disconnected after comparison with the past USB connected devices information.
(2 trip detection logic)
·

Telematics transceiver

·

Navigation receiver assembly

·

Harness or connector



WIRING DIAGRAM

E427424
5.854,3.125 7.063,3.5 1.208,0.375 10 false Navigation Receiver Assembly 2.563,3.115 4.01,3.313 1.448,0.198 10 false Telematics Transceiver 0.75,3.188 2.427,3.375 1.677,0.188 10 false : USB Communication Line 0.208,0.302 1.083,0.667 0.875,0.365 10 false from Auxiliary Battery 0.115,1.26 1.094,1.646 0.979,0.385 10 false from IG2-NO. 2 Relay 1.281,1.417 2.26,1.604 0.979,0.188 10 false ECU-IG2 NO. 3 1.281,0.469 2.271,0.646 0.99,0.177 10 false DCM/MAYDAY 3.854,0.333 4.042,0.531 0.188,0.198 10 false t1 3.833,2.365 4.063,2.542 0.229,0.177 10 false I72 2.771,0.323 3,0.521 0.229,0.198 10 false +B 2.781,1.281 3.063,1.479 0.281,0.198 10 false IG2 2.792,2.229 2.979,2.427 0.188,0.198 10 false E 3.281,0.333 3.708,0.542 0.427,0.208 10 false USB+ 3.333,0.823 3.708,1.042 0.375,0.219 10 false USB- 3.281,1.292 3.698,1.49 0.417,0.198 10 false USBS 6.052,2.354 6.49,2.542 0.438,0.188 10 false USBV 3.26,2.844 3.813,3.135 0.552,0.292 10 false USBG 6.042,2.833 6.479,3.01 0.438,0.177 10 false USBG 6.063,0.344 6.49,0.521 0.427,0.177 10 false USB+ 6.052,0.813 6.417,1 0.365,0.188 10 false USB- 6.063,1.271 6.49,1.448 0.427,0.177 10 false USBS 4.844,1.01 4.958,1.167 0.115,0.156 10 false * 3.271,2.375 3.708,2.552 0.438,0.177 10 false USBV 2.438,0.146 2.854,0.479 0.417,0.333 10 false 1 2.406,1.094 2.823,1.427 0.417,0.333 10 false 19 2.417,2.052 2.833,2.385 0.417,0.333 10 false 20 3.875,0.625 4.292,0.958 0.417,0.333 10 false 1 3.875,0.146 4.292,0.479 0.417,0.333 10 false 2 3.885,1.094 4.302,1.427 0.417,0.333 10 false 3 3.854,2.177 4.073,2.385 0.219,0.208 10 false 15 3.854,2.656 4.042,2.854 0.188,0.198 10 false 31 5.677,2.188 6.031,2.375 0.354,0.188 10 false 18 5.677,2.656 5.958,2.833 0.281,0.177 10 false 17 5.719,0.135 5.885,0.344 0.167,0.208 10 false 1 5.729,0.615 5.896,0.823 0.167,0.208 10 false 2 5.729,1.083 5.865,1.302 0.135,0.219 10 false 3 3.833,2.844 4.063,3.021 0.229,0.177 10 false I72 2.406,2.229 2.646,2.406 0.24,0.177 10 false I72 2.406,1.281 2.646,1.469 0.24,0.188 10 false I72 2.406,0.323 2.656,0.51 0.25,0.188 10 false I72 3.865,0.802 4.042,1 0.177,0.198 10 false t1 3.865,1.281 4.031,1.458 0.167,0.177 10 false t1 5.708,0.823 5.875,1.031 0.167,0.208 10 false t3 5.646,2.844 5.969,3.021 0.323,0.177 10 false I186 5.635,2.365 5.948,2.552 0.313,0.188 10 false I186 0.177,2.885 1.208,3.125 1.031,0.24 10 false *: Shielded 5.708,0.333 5.896,0.51 0.188,0.177 10 false t3 5.708,1.281 5.896,1.469 0.188,0.188 10 false t3

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

When replacing the telematics transceiver, make sure to replace it with a new one.

·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM (w/o RST Switch (except 10.25 Inch Display))>PRECAUTION



HINT:
·

The TOYOTA Connect system performs communication between devices via USB communication. If a malfunction such as a short in a communication line, short to +B or short to ground occurs in the USB circuit, communication will stop and the TOYOTA Connect system will not operate correctly.

·

This DTC may be stored due to environmental reasons such as electrical noise or interference.



PROCEDURE

1.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - POWER SOURCE AND BODY GROUND)
a.

Disconnect the I72 telematics transceiver connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I72-20 (E) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
I72-1 (+B) - I72-20 (E) IG OFF 11 to 14 V
I72-19 (IG2) - I72-20 (E) IG ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)
a.

Disconnect the I186 navigation receiver assembly connector.


b.

Disconnect the I72 telematics transceiver connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I186-18 (USBV) - I72-15 (USBV) Always Below 1 Ω
I186-17 (USBG) - I72-31 (USBG) Always Below 1 Ω
I186-18 (USBV) or I72-15 (USBV) - Body ground Always 10 kΩ or higher
I186-17 (USBG) or I72-31 (USBG) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.INSPECT NAVIGATION RECEIVER ASSEMBLY (USBV, USBG)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT NAVIGATION RECEIVER ASSEMBLY (USBV, USBG)
a.

With the navigation receiver assembly connectors connected, disconnect the I72 telematics transceiver connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I72-31 (USBG) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
I72-15 (USBV) - I72-31 (USBG) IG ON 3 V or higher



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)

NG

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


4.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)
a.
E477878C06
1.479,0.302 1.927,0.583 0.448,0.281 1.458,2.563 1.906,2.844 0.448,0.281 1.823,1.292 2.292,0.875 true 1.552,1.302 1.073,0.865 true 1.625,1.521 1.167,1.802 true 1.594,3.594 1.135,3.875 true 1.552,3.396 1.083,3.125 true 2.271,3.104 1.813,3.385 true 1.115,0.156 1.427,0.354 0.313,0.198 10 false *a 1.094,2.448 1.406,2.646 0.313,0.198 10 false *b 1.646,0.344 1.854,0.531 0.208,0.188 10 false t1 1.625,2.604 1.833,2.792 0.208,0.188 10 false t3 2.292,2.958 2.688,3.156 0.396,0.198 10 false USB- 2.323,0.75 2.74,0.938 0.417,0.188 10 false USB+ 0.76,1.698 1.198,1.875 0.438,0.177 10 false USBS 0.708,3 1.115,3.177 0.406,0.177 10 false USB+ 0.719,0.75 1.104,0.938 0.385,0.188 10 false USB- 0.74,3.781 1.167,3.979 0.427,0.198 10 false USBS

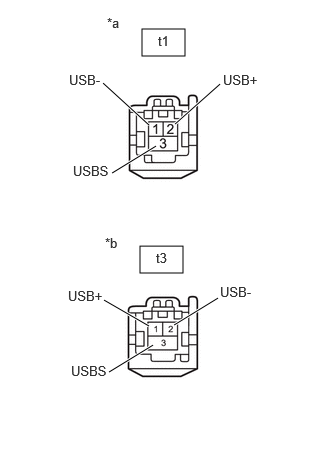

*a Front view of wire harness connector
(to Telematics Transceiver)
*b Front view of wire harness connector
(to Navigation Receiver Assembly)


Disconnect the t3 navigation receiver assembly connector.


b.

Disconnect the t1 telematics transceiver connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
t1-2 (USB+) - t3-1 (USB+) Always Below 1 Ω
t1-1 (USB-) - t3-2 (USB-) Always Below 1 Ω
t1-3 (USBS) - t3-3 (USBS) Always Below 1 Ω
t1-2 (USB+) or t3-1 (USB+) - Body ground Always 10 kΩ or higher
t1-1 (USB-) or t3-2 (USB-) - Body ground Always 10 kΩ or higher
t1-3 (USBS) or t3-3 (USBS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

5.INSPECT TELEMATICS TRANSCEIVER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.INSPECT TELEMATICS TRANSCEIVER
a.

Replace the telematics transceiver with a new one.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


Result:
Proceed to
NEXT



NEXT

6.CHECK FOR DTC
6.CHECK FOR DTC
a.

Clear the DTCs.

Body Electrical > Navigation System > Clear DTCs
50002 496

b.

Turn the ignition switch off.


c.

Turn the ignition switch to ON and wait for 90 seconds.


d.

Turn the ignition switch off.


e.

Turn the ignition switch to ON and wait for 90 seconds.


f.

Using the GTS, recheck for DTCs and proceed to the following step.

Body Electrical > Navigation System > Trouble Codes
50001 496
Result:
Result Proceed to
DTCs are not output A
DTC B15DB87 is output B




A

END (TELEMATICS TRANSCEIVER IS DEFECTIVE)

B

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL
