NR Series EMISSION CONTROL  EMISSION CONTROL SYSTEM  ON-VEHICLE INSPECTION


CAUTION / NOTICE / HINT

CAUTION:
·
A345137

To prevent injury due to contact with an operating V-ribbed belt or cooling fan, keep your hands and clothing away from the V-ribbed belt and cooling fans when working in the engine compartment with the engine running or the ignition switch ON.

·

Touching the fan and generator V belt or rotating components such as the fan, etc. could result in your hand or clothing getting caught and pulled in.



PROCEDURE

Hide 1. VISUALLY INSPECT HOSES, CONNECTIONS AND GASKETS

a.

Visually check that the hoses, connections and gaskets have no cracks, leaks or damage.

NOTICE:
·

Detachment or other problems with the engine oil level dipstick, oil filler cap sub-assembly, ventilation hose and other components may cause the engine to run improperly.

·

Disconnection, looseness or cracks in the parts of the air induction system between the throttle body with motor assembly and cylinder head sub-assembly will allow air leaks which may lead to an engine failure or engine malfunctions.



If any defects are found, replace parts as necessary.


Hide 2.INSPECT EVAPORATIVE EMISSION CONTROL SYSTEM

CAUTION:
·

When working near the engine room while the engine has started or the power source mode is ignition switch to ON, do not touch the fan and generator V belt or rotating components such as the fan, etc.

·

Touching the fan and generator V belt or rotating components such as the fan, etc. could result in your hand or clothing getting caught and pulled in.



a.

Connect the GTS to the DLC3.


b.
A445634

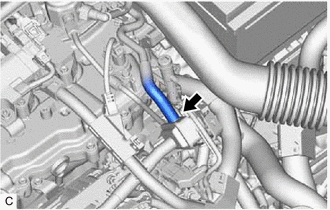

Disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).


c.

Start the engine.


d.

Turn the GTS on.


e.

Enter the following menus: Powertrain / Engine / Active Test / Activate the EVAP Purge VSV.

Powertrain > Engine > Active Test
Tester Display
Activate the EVAP Purge VSV
50004 372 1

f.

Check that vacuum occurs at the purge valve (purge VSV) port.


g.

If vacuum does not occur, check the following items.

·

Purge valve (purge VSV)

·

Clogs in the fuel vapor feed hose connecting the intake manifold and purge valve (purge VSV)



h.

Exit Active Test mode, connect the No. 1 fuel vapor feed hose to the purge valve (purge VSV).


i.

Enter the following menus: Powertrain / Engine / Data List / EVAP (Purge) VSV.

Powertrain > Engine > Data List
Tester Display
EVAP (Purge) VSV
50003 372 226

j.

Warm up the engine and drive the vehicle.


k.

Confirm that the purge valve (purge VSV) opens.

If the result is not as specified, replace the purge valve (purge VSV), wire harness or ECM.


Hide 3.INSPECT VENTILATION EJECTOR


b.
A445633

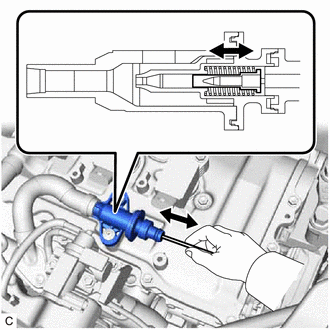

1.625,0.385 1.865,0.385 1.865,0.385 2.083,0.771 true 2.042,1.156 1.917,1.396 1.917,1.396 1.677,1.396 true 1.833,2.833 1.833,2.531 true 1.76,2.896 2.031,3.135 0.271,0.24 10 true *a 1.458,0.302 1.75,0.563 0.292,0.26 10 false *b 1.5,1.302 1.729,1.51 0.229,0.208 10 false *1
*1 Ventilation Ejector
*a Pin
*b Valve


Check the operation of the valve.

i.

Insert the pin into the ventilation ejector hole and check that the valve moves smoothly.

OK:

The valve moves smoothly.


HINT:

If the valve does not move smoothly, it may be stuck inside the ventilation ejector.





Hide 4.CHECK FUEL TANK AND VENT LINE

a.

Disconnect the fuel tank vent hose from the canister (charcoal canister assembly).

A433464C01

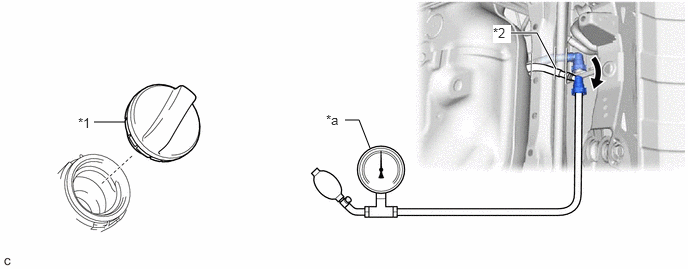

0.979,1.271 1.302,1.271 false 3.594,1.25 3.74,1.25 3.74,1.25 3.854,1.542 false 5.323,0.344 5.594,0.344 5.594,0.344 5.792,0.719 true 0.813,1.198 1.042,1.417 0.229,0.219 10 false *1 5.135,0.26 5.323,0.448 0.188,0.188 10 true *2 3.396,1.167 3.635,1.365 0.24,0.198 10 false *a
*1 Fuel Tank Cap Assembly *2 Fuel Tank Vent Hose
*a Pressure Gauge - -



b.

Connect a pressure gauge to the fuel tank vent hose.


c.

Apply 4 kPa (0.04 kgf/cm2, 0.6 psi) of pressure to the vent line of the fuel tank assembly.

HINT:

Perform this inspection with the fuel tank assembly less than 90% full. When the fuel tank assembly is full, the fuel fill check valve closes and the pressure is released through the 2 mm (0.0787 in.) orifice. As a result, when the fuel tank cap assembly is removed, the pressure does not decrease smoothly.



d.

Check that the fuel tank assembly pressure is maintained for some time and does not decrease immediately.

HINT:

If the pressure decreases immediately, one of the following may apply:

·

The fuel tank cap assembly is not completely tightened.

·

The fuel tank cap assembly is damaged.

·

Air is leaking from the vent line.

·

The fuel tank assembly is damaged.




e.

Remove the fuel tank cap assembly and check that the pressure is released smoothly.

If the pressure is not released smoothly, replace the fuel tank assembly.


f.

Connect the fuel tank vent hose to the canister (charcoal canister assembly).


Hide 5.INSPECT AIR LINE

a.
A433465C01
0.656,1.208 1.073,1.208 true 0.469,1.115 0.656,1.333 0.188,0.219 10 true *1 1.531,0.156 1.719,0.333 0.188,0.177 10 true *a
*1 Air Line Tube
*a Air


Disconnect the air line tube from the No. 2 charcoal canister sub-assembly.


b.

Check that air flows freely into the air line.

If air does not flow freely into the air line, repair or replace the air line tube.


c.

Connect the air line tube to the No. 2 charcoal canister sub-assembly.
