RM3660EC _58 Vehicle Interior _080733 HEATING / AIR CONDITIONING _0393742 AIR CONDITIONING PRESSURE SENSOR A

HEATING / AIR CONDITIONING AIR CONDITIONING PRESSURE SENSOR REMOVAL

PROCEDURE

Hide Display 1.RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT201906,202304,_58,_080733,_0393725,RM100000001HZJC_01_0001,202304,999999,_58,_080733,_0393725,RM100000002B1HP_01_0001,

Hide Display 2.REMOVE HEADLIGHT ASSEMBLY RH (for TFTM Made)

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for TFTM Made)>REMOVAL201906,202104,_59,_080784,_0393155,RM100000001HW4D,202104,202304,_59,_080784,_0393155,RM100000001W4RP,202304,202307,_59,_080784,_0393155,RM100000002B29H,202307,999999,_59,_080784,_0393155,RM100000002D1AI,

Hide Display 3.REMOVE HEADLIGHT ASSEMBLY RH (for GTMC Made)

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for GTMC Made)>REMOVAL201906,999999,_59,_080784,_0393156,RM100000001HW4M,

Hide Display 88719A 4.REMOVE AIR CONDITIONER PRESSURE SENSOR

a.

E399445

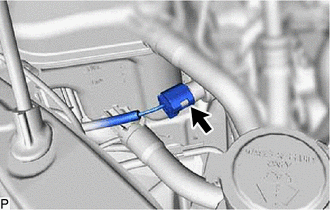

Disconnect the connector.

b.

E399446C01

0.917,1.771 1.354,1.552 true 2.146,0.708 2.458,0.885 true 0.688,1.719 1,1.875 0.313,0.156 10 true *a 2.5,0.844 2.813,1 0.313,0.156 10 true *b

*a	Turn
*b	Hold

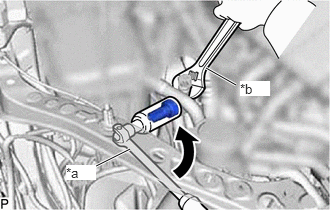

Using a 27 mm deep socket wrench, remove the air conditioner pressure sensor as shown in the illustration.

NOTICE:: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.
