RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0393166 LICENSE PLATE LIGHT ASSEMBLY A

LIGHTING (EXT)  LICENSE PLATE LIGHT ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81270 2.REMOVE LICENSE PLATE LIGHT ASSEMBLY

a.

for TFTM Made:

i.

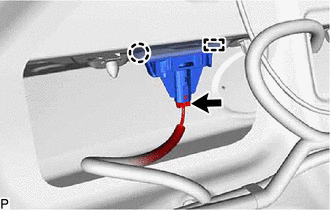

E412594

Disconnect the connector.


ii.

Disengage the claw and guide to remove the license plate light assembly.



b.

for GTMC Made:

NOTICE:

If the license plate light assembly has been removed, replace the license plate light packing with a new one.


i.

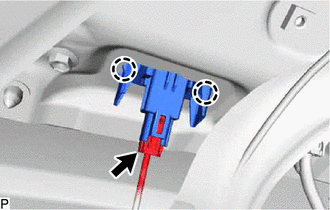

E419600

Disconnect the connector.


ii.

Disengage the 2 claws to remove the license plate light assembly.



Hide 81274B 3.REMOVE LICENSE PLATE LIGHT PACKING (for GTMC Made)

a.
E274784

Remove the license plate light packing.

NOTICE:

Do not reuse the removed license plate light packing. Be sure to install a new license plate light packing to prevent water ingress.



Hide 81271 4.REMOVE LICENSE PLATE LIGHT LENS (for GTMC Made)

a.

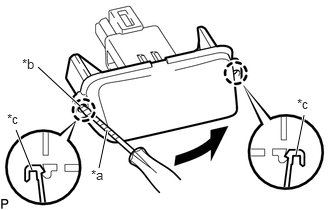

E274785C03
0.396,0.698 0.833,1.104 true 0.167,1.354 0.333,1.771 true 3.167,1.198 3.083,1.615 true 1.115,1.354 1.031,1.75 true 0.229,0.583 0.542,0.781 0.313,0.198 10 false *b 0.073,1.156 0.385,1.354 0.313,0.198 10 false *c 3.094,1 3.406,1.198 0.313,0.198 10 false *c 0.948,1.74 1.26,1.938 0.313,0.198 10 false *a
*a Protective Tape
*b Insert into the hole
*c License Plate Light Lens Hole


Insert a screwdriver wrapped with protective tape into the license plate light lens hole, tilt it as shown in the illustration and disengage the 2 claws to remove the license plate light lens.


Hide 81270B 5.REMOVE LICENSE PLATE LIGHT BULB

a.

for TFTM Made:

i.

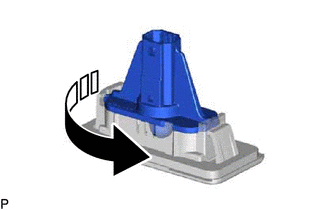

E419564C01
0,0 0,0 false
V113147

Remove in this Direction


Turn the housing with the license plate light bulb as shown in the illustration to remove them as a unit.



b.

Remove the license plate light bulb from the housing.
