LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH(for GTMC Made)
A
EXTERIOR PANELS / TRIM LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH(for GTMC Made) REMOVAL
PROCEDURE
1.REMOVE REAR LIGHT ASSEMBLY LH
2.REMOVE REAR LIGHT ASSEMBLY RH
- HINT:
-
Use the same procedure as for the LH side.
3.REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
a.

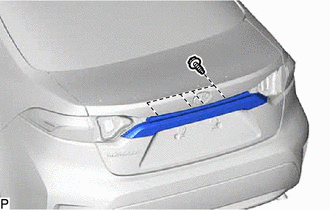

Remove the 4 bolts.
b.
0,0 0,0
false
|
Remove in this Direction |
|
Protective Tape |
Apply protective tape around the luggage compartment door outside garnish sub-assembly.
c.

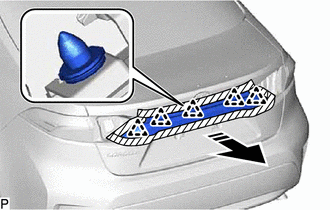

Disengage the 5 clips and remove the luggage compartment door outside garnish sub-assembly as shown in the illustration.
d.
Remove the 5 clips and 2 gaskets from the luggage compartment door outside garnish sub-assembly.
