RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392560 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH(for TFTM Made) A

EXTERIOR PANELS / TRIM LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH(for TFTM Made) REMOVAL

PROCEDURE

Hide Display 1.REMOVE REAR LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR LIGHT ASSEMBLY (for TFTM Made)>REMOVAL201906,999999,_59,_080784,_0393163,RM100000001HW5L,

Hide Display 2.REMOVE REAR LIGHT ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

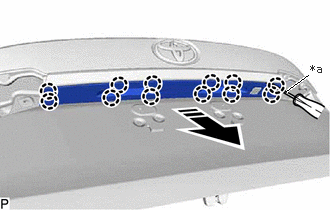

Hide Display 76827A 3.REMOVE NO. 2 BACK DOOR GARNISH RETAINER

2.979,0.948 3.208,0.781 true 3.229,0.646 3.427,0.865 0.198,0.219 10 false *a

*a	Protective Tape
	Remove in this Direction

Using a screwdriver with its tip wrapped with protective tape, disengage the 12 claws to remove the No. 2 back door garnish retainer as shown in the illustration.

Hide Display 76801A 4.REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

0,0 0,0 false

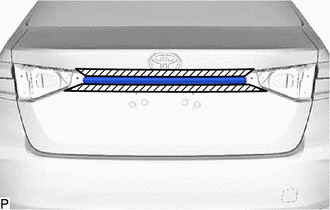

Protective Tape

Apply protective tape around the luggage compartment door outside garnish sub-assembly.

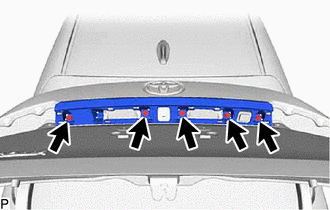

Remove the 5 screws.

0,0 0,0 false

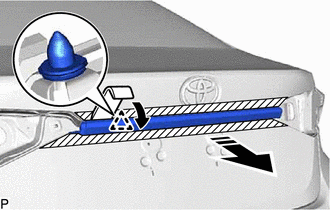

Remove in this Direction

Using a moulding remover, disengage the clip and remove the luggage compartment door outside garnish sub-assembly as shown in the illustration.

Remove the clip from the luggage compartment door outside garnish sub-assembly.
