PURGE VALVE
A
NR Series EMISSION CONTROL PURGE VALVE REMOVAL
CAUTION / NOTICE / HINT
- NOTICE:
-
When removing the fuel vapor feed hose, hold the purge valve body securely in place by hand.
PROCEDURE
25860
1.REMOVE PURGE VALVE (PURGE VSV)
a.
1.615,0.958 1.729,0.448
1.729,0.448 1.896,0.448
true
2.146,1.531 2.146,1.104
true
1.292,1.552 1.292,1.125
true
1.906,0.344 2.146,0.521
0.24,0.177
10
true
*1
2.083,1.531 2.323,1.74
0.24,0.208
10
true
*2
1.198,1.573 1.417,1.771
0.219,0.198
10
true
*3

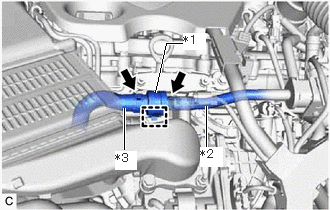

| *1 | No. 1 Check Valve |
| *2 | No. 2 Fuel Vapor Feed Hose |
| *3 | No. 3 Fuel Vapor Feed Hose |
Slide the clip and disconnect the No. 3 fuel vapor feed hose from the No. 1 check valve.
b.
Disconnect the No. 2 fuel vapor feed hose from the No. 1 check valve.
c.
Disengage the clamp and remove the No. 1 check valve from the intake manifold.
d.
1.563,0.74 1.771,0.521
1.771,0.521 1.938,0.521
true
1.479,1.469 1.313,1.802
1.313,1.802 1.146,1.802
true
1.906,1.427 1.906,1.802
true
1.844,1.875 2.073,2.094
0.229,0.219
10
true
*1
0.938,1.729 1.115,1.927
0.177,0.198
10
true
*2
2,0.406 2.208,0.583
0.208,0.177
10
true
*3

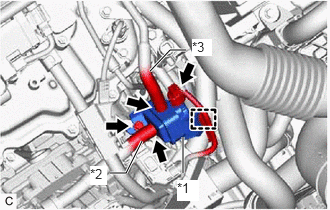

| *1 | Purge Valve (Purge VSV) |
| *2 | No. 2 Fuel Vapor Feed Hose |
| *3 | No. 1 Fuel Vapor Feed Hose |
Disconnect the purge valve (purge VSV) connector.
e.
Disengage the wire harness clamp from the purge valve (purge VSV).
f.
Remove the No. 2 fuel vapor feed hose from the purge valve (purge VSV).
g.
Disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).
h.
Remove the bolt and purge valve (purge VSV) from the intake manifold.
