NR Series LUBRICATION  OIL PRESSURE SENSOR  REMOVAL


PROCEDURE

Hide 83520 1.REMOVE OIL PRESSURE SENDER GAUGE ASSEMBLY

a.

Disconnect the oil pressure sender gauge assembly connector.


b.

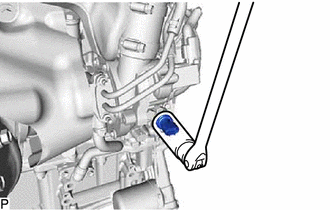

A386467

Using a 27 mm deep socket wrench, remove the oil pressure sender gauge assembly.

NOTICE:

If the oil pressure sender gauge assembly is dropped or subjected to a strong impact, replace it with a new one.
