CAMSHAFT OIL CONTROL VALVE(for Intake Side)
G
NR Series ENGINE CONTROL CAMSHAFT OIL CONTROL VALVE(for Intake Side) ON-VEHICLE INSPECTION
PROCEDURE
15370
1.REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side)
13523F
2.INSPECT CAMSHAFT TIMING GEAR BOLT
a.
0.979,1.646 1.26,1.646
1.26,1.646 1.802,1.073
true
0.813,1.563 1,1.729
0.188,0.167
10
true
*a
| *a | Plunger |

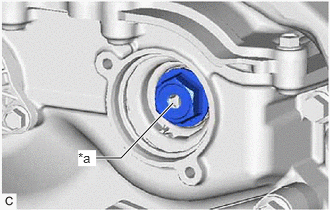

Check the stroke of the plunger in the center of the camshaft timing gear bolt.
- Standard Stroke:
4.5 mm (0.177 in.) or more
- HINT:
-
When pressing the plunger, there may be a stepped feeling. This is not a malfunction.
If the result is not as specified, replace the camshaft timing gear bolt.
15370
3.INSTALL CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side)
