RM3660EC _52 Drivetrain _080728 K313 CVT _0392279 VALVE BODY ASSEMBLY A

K313 CVT  VALVE BODY ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during transmission valve body assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Replacement of CVT fluid Air bleed the oil pump with motor assembly Stop and Start System (Click here)
ATF thermal degradation estimate reset The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly (Click here)

PROCEDURE

Hide 35106L 1.REMOVE TRANSAXLE OIL (CVT) PAN SUB-ASSEMBLY

Click hereDrivetrain>K313 (CVT)>OIL PAN>REMOVAL

Hide 35330D 2.REMOVE OIL STRAINER ASSEMBLY

a.
C305428

Remove the 3 bolts and oil strainer assembly from the transmission valve body assembly.


b.
C305829

Remove the O-ring from the oil strainer assembly.


Hide 35410J 3.REMOVE TRANSMISSION VALVE BODY ASSEMBLY

a.
C305429C01
1.146,0.781 1.146,0.521 1.146,0.521 1.26,0.521 true 2.146,1.406 2.146,0.938 2.146,0.938 2.271,0.938 true 1.021,1.063 1.406,1.063 false 0.917,2.052 1.031,2.052 1.031,2.052 1.031,1.615 true 1.021,1.323 1.021,1.427 1.021,1.427 1.427,1.427 true 2.708,1.604 3.073,1.604 true 2.063,1.448 2.063,0.667 2.063,0.667 2.25,0.667 true 1.792,1.719 1.969,1.719 1.969,1.719 2,1.594 true 2.302,0.844 2.51,1.021 0.208,0.177 10 true *1 2.271,0.573 2.479,0.76 0.208,0.188 10 true *2 1.302,0.417 1.521,0.594 0.219,0.177 10 true *a 1.438,0.958 1.656,1.146 0.219,0.188 10 true *b 1.458,1.344 1.656,1.531 0.198,0.188 10 true *c 0.74,1.969 0.958,2.156 0.219,0.188 10 false *d 3.125,1.51 3.323,1.729 0.198,0.219 10 false *e 1.615,1.635 1.792,1.802 0.177,0.167 10 true *3
*1 Temperature Sensor
*2 Temperature Sensor Clamp
*3 Bolt
*a Shift Solenoid Valve SL Connector
*b Shift Solenoid Valve SLU Connector
*c Shift Solenoid Valve SLS Connector
*d Shift Solenoid Valve SC Connector
*e Shift Solenoid Valve SLP Connector


Disconnect the shift solenoid valve SL connector.


b.

Disconnect the shift solenoid valve SLU connector.


c.

Disconnect the shift solenoid valve SLS connector.


d.

Disconnect the shift solenoid valve SC connector.


e.

Disconnect the shift solenoid valve SLP connector.


f.

Remove the bolt and temperature sensor clamp from the transmission valve body assembly.


g.

Disconnect the temperature sensor from the transmission valve body assembly.


h.

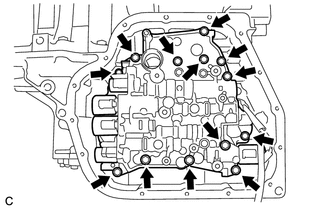

C305430

Remove the 13 bolts and transmission valve body assembly from the continuously variable transaxle assembly.

NOTICE:

Make sure the manual valve does not fall out when removing the transmission valve body assembly, as the manual valve is not secured to the transmission valve body assembly.



i.

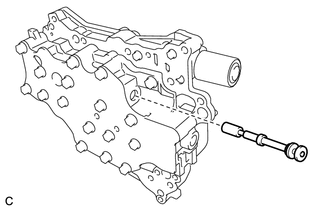

C305431

Remove the manual valve from the transmission valve body assembly.
