K313 CVT OIL PAN REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during transaxle oil (CVT) pan sub-assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of CVT fluid	Air bleed the oil pump with motor assembly	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
Replacement of CVT fluid	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)

PROCEDURE

Hide Display 51410 1.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202007,_51,_080739,_0391935,RM100000001HN2A_01_0388,202007,202104,_51,_080739,_0391935,RM100000001RPXX_01_0388,202104,202205,_51,_080739,_0391935,RM100000001WEPZ_01_0388,202205,202304,_51,_080739,_0391935,RM1000000022ZNY_01_0388,202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0388,

Hide Display 51444A 2.REMOVE REAR ENGINE UNDER COVER LH

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202007,_51,_080739,_0391935,RM100000001HN2A_01_0354,202007,202104,_51,_080739,_0391935,RM100000001RPXX_01_0354,202104,202205,_51,_080739,_0391935,RM100000001WEPZ_01_0354,202205,202304,_51,_080739,_0391935,RM1000000022ZNY_01_0354,202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0354,

Hide Display 3.DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

Remove the refill plug and gasket from the rear transaxle case.

Using a 6 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle oil (CVT) pan sub-assembly and drain the fluid.

2.604,0.719 2.552,0.5 2.552,0.5 2.406,0.5 false 2.208,0.406 2.406,0.604 0.198,0.198 10 false *1

*1	Overflow (CVT) Tube

Using a 6 mm hexagon socket wrench, remove the overflow (CVT) tube from the transaxle oil (CVT) pan sub-assembly and drain the fluid.

Using a 6 mm hexagon socket wrench, install the overflow (CVT) tube to the transaxle oil (CVT) pan sub-assembly.

Torque:: 1.7 N*m (17 kgf*cm, 15 in.*lbf)

Using a 6 mm hexagon socket wrench, temporarily install the overflow plug and gasket to the transaxle oil (CVT) pan sub-assembly.

HINT:: Reuse the old gasket as the overflow plug will be removed again to adjust the fluid level.

Temporarily install the refill plug and gasket to the rear transaxle case.

HINT:: Reuse the old gasket as the refill plug will be removed again to adjust the fluid level.

Hide Display 35106L 4.REMOVE TRANSAXLE OIL (CVT) PAN SUB-ASSEMBLY

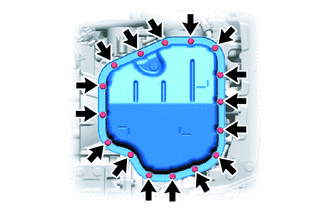

Remove the 16 bolts, transaxle oil (CVT) pan sub-assembly and transaxle oil pan (CVT) gasket from the transaxle case.

Using a 6 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle oil (CVT) pan sub-assembly.

Using a 6 mm hexagon socket wrench, remove the overflow (CVT) tube from the transaxle oil (CVT) pan sub-assembly.

Hide Display 35394D 5.REMOVE OIL CLEANER (CVT) MAGNET

0.438,1.125 1.979,0.854 true 2.177,1.479 0.427,1.125 0.427,1.125 1.146,0.781 true 0.26,1.052 0.573,1.208 0.313,0.156 10 false *1

*1	Oil Cleaner (CVT) Magnet

Remove the 3 oil cleaner (CVT) magnets from the transaxle oil (CVT) pan sub-assembly.

Clean off any metal particles adhered to the 3 oil cleaner (CVT) magnets.

Clean the transaxle oil (CVT) pan sub-assembly and remove any metal particles, sludge, etc.

Hide Display 35330D 6.REMOVE OIL STRAINER ASSEMBLY

HINT:: Perform this procedure only when replacement of the oil strainer assembly is necessary.

Remove the 3 bolts and oil strainer assembly from the transmission valve body assembly.

Remove the O-ring from the oil strainer assembly.
