RM3660EC _52 Drivetrain _080728 K313 CVT _0392278 TRANSMISSION WIRE A

K313 CVT TRANSMISSION WIRE REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during transmission wire removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of CVT fluid	Air bleed the oil pump with motor assembly	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
Replacement of CVT fluid	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)

PROCEDURE

Hide Display 35410J 1.REMOVE TRANSMISSION VALVE BODY ASSEMBLY

Click hereDrivetrain>K313 (CVT)>VALVE BODY ASSEMBLY>REMOVAL201906,999999,_52,_080728,_0392279,RM100000001HPC1,

Hide Display 82125M 2.REMOVE TRANSMISSION WIRE

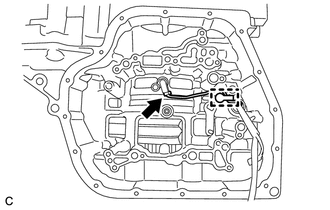

Remove the valve body wire harness clamp from the continuously variable transaxle assembly.

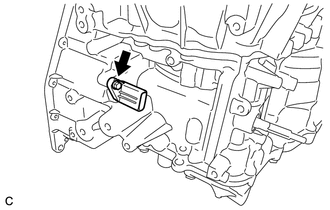

Disconnect the transmission revolution sensor (NT) connector.

Remove the bolt and transmission wire from the continuously variable transaxle assembly.

Remove the O-ring from the transmission wire.
