LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH
A
DOOR / HATCH LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH REMOVAL
PROCEDURE
1.REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY (for TFTM Made)
76801
2.REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY (for GTMC Made)
84945
3.REMOVE LUGGAGE ELECTRICAL KEY SWITCH (for TFTM Made)
a.

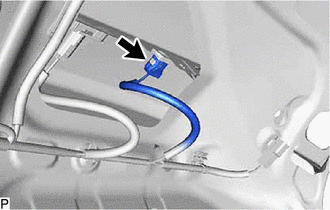

Disconnect the connector.
b.
0,0 0,0
false
|

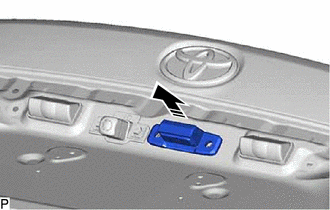

Remove in this Direction |
Remove the luggage electrical key switch as shown in the illustration.
84945
4.REMOVE LUGGAGE ELECTRICAL KEY SWITCH (for GTMC Made)
a.
Disconnect the connector.
b.
0,0 0,0
false
|
|

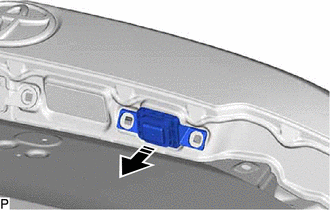

Remove in this Direction |
Remove the luggage electrical key switch as shown in the illustration.
