RM3660EC _51 Engine / Hybrid System _080739 NR Series ENGINE MECHANICAL _0391934 REAR CRANKSHAFT OIL SEAL A

NR Series ENGINE MECHANICAL  REAR CRANKSHAFT OIL SEAL  INSTALLATION


PROCEDURE

Hide 11401L 1.INSTALL REAR ENGINE OIL SEAL

a.

Apply MP grease to the lip of a new rear engine oil seal.


b.

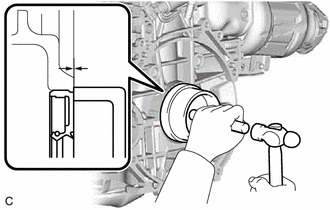

A351487
2.198,0.969 2.76,0.885 true 0.708,0.438 1.021,0.594 0.313,0.156 10 true *a 2.844,0.802 3.302,1 0.458,0.198 10 false SST
*a Tap in Depth


Using SST and a hammer, tap in the rear engine oil seal.

SST
09223-15030
09950-70010  (09951-07100)

Rear Engine Oil Seal Tap in Depth:

-0.9 to 0.9 mm (-0.0354 to 0.0354 in.)


NOTICE:
·

Keep the lip free from foreign matter.

·

Do not tap in the rear engine oil seal at an angle.




Hide 32101B 2.INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

a.

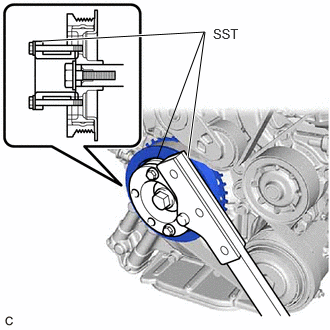

A445336N01
1.958,1.646 2.135,0.333 2.135,0.333 0.438,0.427 true 1.635,1.656 2.125,0.333 false 2.219,0.271 2.677,0.469 0.458,0.198 10 false SST

Using SST, hold the crankshaft pulley assembly.

SST
09213-70011  (09213-70020)
09330-00021


b.

Clean the 8 bolts and 8 bolt holes.


c.

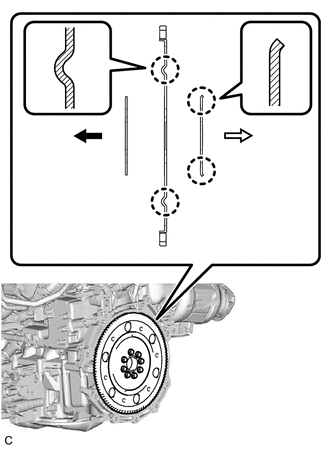

A351488
1.073,1.667 1.292,1.667 false 2.104,1.552 2.323,1.552 false 1.729,2.448 1.948,2.448 false 0.885,1.604 1.198,1.76 0.313,0.156 10 false *1 2.365,1.49 2.677,1.646 0.313,0.156 10 false *2 2.01,2.396 2.323,2.552 0.313,0.156 10 false *3
*1 Front Drive Plate Spacer (Reversible)
*2 Rear Drive Plate Spacer
*3 Drive Plate and Ring Gear Sub-assembly
V100135

Engine Side
V100136

Transaxle Side


Install the front drive plate spacer.

HINT:

Align the pin of the front drive plate spacer with the pin hole of the crankshaft.



d.

Install the drive plate and ring gear sub-assembly and rear drive plate spacer to the crankshaft.


e.
A192239
1.563,0.75 1.667,0.75 1.667,0.75 1.813,1.229 false 1.385,0.677 1.583,0.833 0.198,0.156 10 *a
*a Adhesive


Apply adhesive to 2 or 3 threads at the end of each of the 8 bolts.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent



f.
A351485
1.635,0.5 1.792,0.698 0.156,0.198 10 true 1 2.063,1.667 2.219,1.865 0.156,0.198 10 true 2 1.271,1.26 1.427,1.458 0.156,0.198 10 true 3 2.427,1.021 2.583,1.219 0.156,0.198 10 true 4 1.271,0.896 1.427,1.094 0.156,0.198 10 true 5 2.354,1.375 2.51,1.573 0.156,0.198 10 true 6 2.26,0.563 2.417,0.76 0.156,0.198 10 true 7 1.458,1.646 1.615,1.844 0.156,0.198 10 true 8

Install and uniformly tighten the 8 bolts in several steps in the sequence shown in the illustration.

Torque:
88 N*m (897 kgf*cm, 65 ft.*lbf)

NOTICE:

Do not start the engine for at least 1 hour after installing the drive plate and ring gear sub-assembly.
