SEAT BELT CHILD RESTRAINT SEAT TETHER ANCHOR INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

Hide Display 73719 1.INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET

HINT:: Use the same procedure for all child restraint seat tether anchor brackets.

Engage the guide and install the child restraint seat tether anchor bracket with the bolt.

Torque:: 21 N*m (214 kgf*cm, 15 ft.*lbf)

0,0 0,0 false

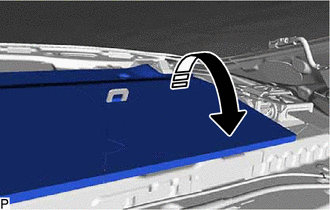

Install in this Direction

Install the package tray trim pad to its original position as shown in the illustration.

Hide Display 64330 2.INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>INSTALLATION201906,202007,_58,_080748,_0391781,RM100000001HMCR_01_0252,202007,202101,_58,_080748,_0391781,RM100000001OKTX_01_0252,202101,202104,_58,_080748,_0391781,RM100000001TPZ9_01_0252,202104,202107,_58,_080748,_0391781,RM100000001WK0X_01_0252,202107,202304,_58,_080748,_0391781,RM100000001XPZG_01_0252,202304,202307,_58,_080748,_0391781,RM100000002AV15_01_0252,202307,999999,_58,_080748,_0391781,RM100000002D1KI_01_0252,

Hide Display 73373F 3.INSTALL REAR SEAT SHOULDER BELT HOLE COVER

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>INSTALLATION201906,202007,_58,_080748,_0391781,RM100000001HMCR_01_0216,202007,202101,_58,_080748,_0391781,RM100000001OKTX_01_0216,202101,202104,_58,_080748,_0391781,RM100000001TPZ9_01_0216,202104,202107,_58,_080748,_0391781,RM100000001WK0X_01_0216,202107,202304,_58,_080748,_0391781,RM100000001XPZG_01_0216,202304,202307,_58,_080748,_0391781,RM100000002AV15_01_0216,202307,999999,_58,_080748,_0391781,RM100000002D1KI_01_0216,

Hide Display 64322A 4.INSTALL PACKAGE TRAY TRIM BRACKET LH

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>INSTALLATION201906,202007,_58,_080748,_0391781,RM100000001HMCR_01_0218,202007,202101,_58,_080748,_0391781,RM100000001OKTX_01_0218,202101,202104,_58,_080748,_0391781,RM100000001TPZ9_01_0218,202104,202107,_58,_080748,_0391781,RM100000001WK0X_01_0218,202107,202304,_58,_080748,_0391781,RM100000001XPZG_01_0218,202304,202307,_58,_080748,_0391781,RM100000002AV15_01_0218,202307,999999,_58,_080748,_0391781,RM100000002D1KI_01_0218,

Hide Display 64321F 5.INSTALL PACKAGE TRAY TRIM BRACKET RH

HINT:: Use the same procedure as for the LH side.

Hide Display 81006 6.INSTALL CENTER STOP LIGHT SET

Click hereVehicle Exterior>LIGHTING (EXT)>HIGH MOUNTED STOP LIGHT ASSEMBLY>INSTALLATION201906,202304,_59,_080784,_0393168,RM100000001HW5X,202304,999999,_59,_080784,_0393168,RM100000002B2CJ,

Hide Display 62472A 7.INSTALL ROOF SIDE INNER GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0296,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0296,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0296,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0296,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0296,

Hide Display 62471A 8.INSTALL ROOF SIDE INNER GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 62552F 9.INSTALL REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0197,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0197,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0197,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0197,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0197,

Hide Display 62551F 10.INSTALL REAR SEAT SIDE GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 62332A 11.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION201906,202104,_59,_080735,_0392092,RM100000001HNZY_01_0017,202104,202107,_59,_080735,_0392092,RM100000001VMN2_01_0017,202107,999999,_59,_080735,_0392092,RM100000001X72T_01_0017,

Hide Display 62331A 12.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure as for the LH side.

Hide Display 67918A 13.INSTALL REAR DOOR SCUFF PLATE LH (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0300,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0300,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0300,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0300,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0300,

Hide Display 67917A 14.INSTALL REAR DOOR SCUFF PLATE RH (for Gasoline Model)

HINT:: Use the same procedure as for the LH side.

Hide Display 76974F 15.INSTALL REAR UNDER SIDE COVER LH (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0297,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0297,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0297,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0297,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0297,

Hide Display 76973F 16.INSTALL REAR UNDER SIDE COVER RH (for HV Model)

HINT:: Use the same procedure as for the LH side.

Hide Display 67918A 17.INSTALL REAR DOOR SCUFF PLATE LH (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0301,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0301,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0301,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0301,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0301,

Hide Display 67917A 18.INSTALL REAR DOOR SCUFF PLATE RH (for HV Model)

HINT:: Use the same procedure as for the LH side.

Hide Display 19.INSTALL REAR SEAT ASSEMBLY (for Fixed Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394195,RM100000001I3KB,

Hide Display 20.INSTALL REAR SEAT ASSEMBLY (for Fold Down Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK,
