RM3660EC _58 Vehicle Interior _080748 SEAT BELT _0391786 CHILD RESTRAINT SEAT TETHER ANCHOR A

SEAT BELT CHILD RESTRAINT SEAT TETHER ANCHOR REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD,

Hide Display 2.REMOVE REAR SEAT ASSEMBLY (for Fold Down Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH,

Hide Display 67918A 3.REMOVE REAR DOOR SCUFF PLATE LH (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0002,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0002,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0002,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0002,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0002,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0002,

Hide Display 67917A 4.REMOVE REAR DOOR SCUFF PLATE RH (for Gasoline Model)

HINT:: Use the same procedure as for the LH side.

Hide Display 67918A 5.REMOVE REAR DOOR SCUFF PLATE LH (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0308,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0308,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0308,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0308,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0308,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0308,

Hide Display 67917A 6.REMOVE REAR DOOR SCUFF PLATE RH (for HV Model)

HINT:: Use the same procedure as for the LH side.

Hide Display 76974F 7.REMOVE REAR UNDER SIDE COVER LH (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0311,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0311,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0311,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0311,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0311,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0311,

Hide Display 76973F 8.REMOVE REAR UNDER SIDE COVER RH (for HV Model)

HINT:: Use the same procedure as for the LH side.

Hide Display 62332A 9.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL201906,202007,_58,_080748,_0391781,RM100000001HMCP_01_0235,202007,202101,_58,_080748,_0391781,RM100000001OKTW_01_0235,202101,202104,_58,_080748,_0391781,RM100000001TPZ8_01_0235,202104,202107,_58,_080748,_0391781,RM100000001WK0W_01_0235,202107,202205,_58,_080748,_0391781,RM100000001XPZF_01_0235,202205,202304,_58,_080748,_0391781,RM1000000022ZXD_01_0235,202304,202307,_58,_080748,_0391781,RM100000002AV14_01_0235,202307,202406,_58,_080748,_0391781,RM100000002D1KH_01_0235,202406,999999,_58,_080748,_0391781,RM100000002N5WY_01_0235,

Hide Display 62331A 10.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure as for the LH side.

Hide Display 62552F 11.REMOVE REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0195,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0195,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0195,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0195,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0195,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0195,

Hide Display 62551F 12.REMOVE REAR SEAT SIDE GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 62472A 13.REMOVE ROOF SIDE INNER GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0301,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0301,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0301,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0301,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0301,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0301,

Hide Display 62471A 14.REMOVE ROOF SIDE INNER GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 81006 15.REMOVE CENTER STOP LIGHT SET

Click hereVehicle Exterior>LIGHTING (EXT)>HIGH MOUNTED STOP LIGHT ASSEMBLY>REMOVAL201906,202304,_59,_080784,_0393168,RM100000001HW5Z,202304,999999,_59,_080784,_0393168,RM100000002B2CI,

Hide Display 64322A 16.REMOVE PACKAGE TRAY TRIM BRACKET LH

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL201906,202007,_58,_080748,_0391781,RM100000001HMCP_01_0238,202007,202101,_58,_080748,_0391781,RM100000001OKTW_01_0238,202101,202104,_58,_080748,_0391781,RM100000001TPZ8_01_0238,202104,202107,_58,_080748,_0391781,RM100000001WK0W_01_0238,202107,202205,_58,_080748,_0391781,RM100000001XPZF_01_0238,202205,202304,_58,_080748,_0391781,RM1000000022ZXD_01_0238,202304,202307,_58,_080748,_0391781,RM100000002AV14_01_0238,202307,202406,_58,_080748,_0391781,RM100000002D1KH_01_0238,202406,999999,_58,_080748,_0391781,RM100000002N5WY_01_0238,

Hide Display 64321F 17.REMOVE PACKAGE TRAY TRIM BRACKET RH

HINT:: Use the same procedure as for the LH side.

Hide Display 73373F 18.REMOVE REAR SEAT SHOULDER BELT HOLE COVER

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL201906,202007,_58,_080748,_0391781,RM100000001HMCP_01_0253,202007,202101,_58,_080748,_0391781,RM100000001OKTW_01_0253,202101,202104,_58,_080748,_0391781,RM100000001TPZ8_01_0253,202104,202107,_58,_080748,_0391781,RM100000001WK0W_01_0253,202107,202205,_58,_080748,_0391781,RM100000001XPZF_01_0253,202205,202304,_58,_080748,_0391781,RM1000000022ZXD_01_0253,202304,202307,_58,_080748,_0391781,RM100000002AV14_01_0253,202307,202406,_58,_080748,_0391781,RM100000002D1KH_01_0253,202406,999999,_58,_080748,_0391781,RM100000002N5WY_01_0253,

Hide Display 64330 19.REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL201906,202007,_58,_080748,_0391781,RM100000001HMCP_01_0239,202007,202101,_58,_080748,_0391781,RM100000001OKTW_01_0239,202101,202104,_58,_080748,_0391781,RM100000001TPZ8_01_0239,202104,202107,_58,_080748,_0391781,RM100000001WK0W_01_0239,202107,202205,_58,_080748,_0391781,RM100000001XPZF_01_0239,202205,202304,_58,_080748,_0391781,RM1000000022ZXD_01_0239,202304,202307,_58,_080748,_0391781,RM100000002AV14_01_0239,202307,202406,_58,_080748,_0391781,RM100000002D1KH_01_0239,202406,999999,_58,_080748,_0391781,RM100000002N5WY_01_0239,

Hide Display 73719 20.REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET

HINT:: Use the same procedure for all child restraint seat tether anchor brackets.

a.

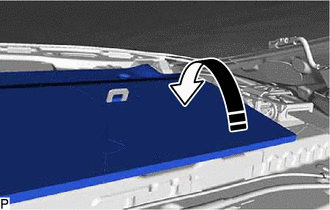

B534592C01

0,0 0,0 false

V113147

Remove in this Direction

Turn back the package tray trim pad as shown in the illustration.

b.

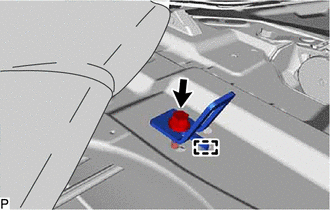

B534594

Remove the bolt.

c.

Disengage the guide to remove the child restraint seat tether anchor bracket.
