RM3660EC _58 Vehicle Interior _080748 SEAT BELT _0391783 REAR CENTER SEAT OUTER BELT ASSEMBLY A

SEAT BELT REAR CENTER SEAT OUTER BELT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

Hide Display 1.INSTALL SEAT BELT RETRACTOR COVER

Install the seat belt retractor cover.

Hide Display 73350C 2.INSPECT REAR CENTER SEAT OUTER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY>INSPECTION201906,999999,_58,_080748,_0391783,RM100000001HMCY_03_0003,

Hide Display 73350C 3.INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY

1.198,1.865 1.354,2.063 0.156,0.198 10 true A 2.281,0.51 2.438,0.708 0.156,0.198 10 true B

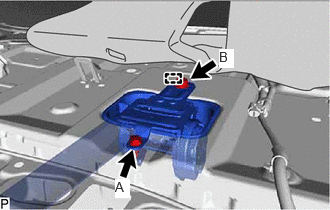

Engage the guide and temporarily install the rear center seat outer belt assembly with the 2 bolts.

Fully tighten the bolt (A) and then the bolt (B) to install the rear center seat outer belt assembly.

Torque:: Bolt (A) : 12.5 N*m (127 kgf*cm, 9 ft.*lbf); Bolt (B) : 42 N*m (428 kgf*cm, 31 ft.*lbf)

Check that the ELR locks.

With the rear center seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

NOTICE:: This check should be performed with the rear center seat outer belt assembly installed to the vehicle.

0,0 0,0 false

Install in this Direction

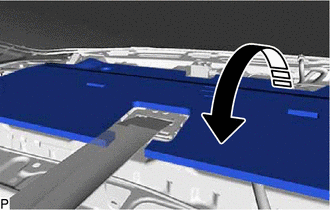

Install the package tray trim pad to its original position as shown in the illustration.

Hide Display 64330 4.INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>INSTALLATION201906,202007,_58,_080748,_0391781,RM100000001HMCR_01_0252,202007,202101,_58,_080748,_0391781,RM100000001OKTX_01_0252,202101,202104,_58,_080748,_0391781,RM100000001TPZ9_01_0252,202104,202107,_58,_080748,_0391781,RM100000001WK0X_01_0252,202107,202304,_58,_080748,_0391781,RM100000001XPZG_01_0252,202304,202307,_58,_080748,_0391781,RM100000002AV15_01_0252,202307,999999,_58,_080748,_0391781,RM100000002D1KI_01_0252,

Hide Display 73373F 5.INSTALL REAR SEAT SHOULDER BELT HOLE COVER

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>INSTALLATION201906,202007,_58,_080748,_0391781,RM100000001HMCR_01_0216,202007,202101,_58,_080748,_0391781,RM100000001OKTX_01_0216,202101,202104,_58,_080748,_0391781,RM100000001TPZ9_01_0216,202104,202107,_58,_080748,_0391781,RM100000001WK0X_01_0216,202107,202304,_58,_080748,_0391781,RM100000001XPZG_01_0216,202304,202307,_58,_080748,_0391781,RM100000002AV15_01_0216,202307,999999,_58,_080748,_0391781,RM100000002D1KI_01_0216,

Hide Display 64322A 6.INSTALL PACKAGE TRAY TRIM BRACKET LH

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>INSTALLATION201906,202007,_58,_080748,_0391781,RM100000001HMCR_01_0218,202007,202101,_58,_080748,_0391781,RM100000001OKTX_01_0218,202101,202104,_58,_080748,_0391781,RM100000001TPZ9_01_0218,202104,202107,_58,_080748,_0391781,RM100000001WK0X_01_0218,202107,202304,_58,_080748,_0391781,RM100000001XPZG_01_0218,202304,202307,_58,_080748,_0391781,RM100000002AV15_01_0218,202307,999999,_58,_080748,_0391781,RM100000002D1KI_01_0218,

Hide Display 64321F 7.INSTALL PACKAGE TRAY TRIM BRACKET RH

HINT:: Use the same procedure as for the LH side.

Hide Display 81006 8.INSTALL CENTER STOP LIGHT SET

Click hereVehicle Exterior>LIGHTING (EXT)>HIGH MOUNTED STOP LIGHT ASSEMBLY>INSTALLATION201906,202304,_59,_080784,_0393168,RM100000001HW5X,202304,999999,_59,_080784,_0393168,RM100000002B2CJ,

Hide Display 62472A 9.INSTALL ROOF SIDE INNER GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0296,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0296,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0296,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0296,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0296,

Hide Display 62471A 10.INSTALL ROOF SIDE INNER GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 62552F 11.INSTALL REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0197,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0197,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0197,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0197,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0197,

Hide Display 62551F 12.INSTALL REAR SEAT SIDE GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 62332A 13.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION201906,202104,_59,_080735,_0392092,RM100000001HNZY_01_0017,202104,202107,_59,_080735,_0392092,RM100000001VMN2_01_0017,202107,999999,_59,_080735,_0392092,RM100000001X72T_01_0017,

Hide Display 62331A 14.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure as for the LH side.

Hide Display 67918A 15.INSTALL REAR DOOR SCUFF PLATE LH (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0300,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0300,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0300,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0300,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0300,

Hide Display 67917A 16.INSTALL REAR DOOR SCUFF PLATE RH (for Gasoline Model)

HINT:: Use the same procedure as for the LH side.

Hide Display 76974F 17.INSTALL REAR UNDER SIDE COVER LH (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0297,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0297,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0297,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0297,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0297,

Hide Display 76973F 18.INSTALL REAR UNDER SIDE COVER RH (for HV Model)

HINT:: Use the same procedure as for the LH side.

Hide Display 67918A 19.INSTALL REAR DOOR SCUFF PLATE LH (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0301,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0301,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0301,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0301,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0301,

Hide Display 67917A 20.INSTALL REAR DOOR SCUFF PLATE RH (for HV Model)

HINT:: Use the same procedure as for the LH side.

Hide Display 21.INSTALL REAR SEAT ASSEMBLY (for Fixed Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394195,RM100000001I3KB,

Hide Display 22.INSTALL REAR SEAT ASSEMBLY (for Fold Down Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK,
