NETWORKING  CAN COMMUNICATION SYSTEM(for HV Model)  U01BD87  Lost Communication with DC/DC Converter Control Module "C" Missing Message  U115087  Lost Communication with Hybrid Powertrain Control Module (ch2) Missing Message  U117B87  Lost Communication with Hybrid/EV Battery Energy Control Module "A" (ch2) Missing Message


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Note
U01BD87 Lost Communication with DC/DC Converter Control Module "C" Missing Message Communication stops between the hybrid vehicle control ECU and the inverter with converter assembly.
·

CAN main/branch bus lines or connector

·

Hybrid vehicle control ECU

·

Inverter with converter assembly

·

No. 43 junction connector

(for 8ZR-FXE (GTMC Made))

·

No. 44 junction connector

(for 8ZR-FXE (TFTM Made) or M20G-FXS)

·

No. 20 CAN junction connector

(for M20F-FXS)


DTC Output from
·

Hybrid vehicle control ECU


U115087 Lost Communication with Hybrid Powertrain Control Module (ch2) Missing Message Communication stops between the battery ECU assembly and the hybrid vehicle control ECU.
·

CAN main/branch bus lines or connector

·

Battery ECU assembly

·

Hybrid vehicle control ECU

·

No. 43 junction connector

(for 8ZR-FXE (GTMC Made))

·

No. 44 junction connector

(for 8ZR-FXE (TFTM Made) or M20G-FXS)

·

No. 20 CAN junction connector

(for M20F-FXS)


DTC Output from
·

Battery ECU assembly


U117B87 Lost Communication with Hybrid/EV Battery Energy Control Module "A" (ch2) Missing Message Communication stops between the hybrid vehicle control ECU and the battery ECU assembly.
·

CAN main/branch bus lines or connector

·

Hybrid vehicle control ECU

·

Battery ECU assembly

·

No. 43 junction connector

(for 8ZR-FXE (GTMC Made))

·

No. 44 junction connector

(for 8ZR-FXE (TFTM Made) or M20G-FXS)

·

No. 20 CAN junction connector

(for M20F-FXS)


DTC Output from
·

Hybrid vehicle control ECU

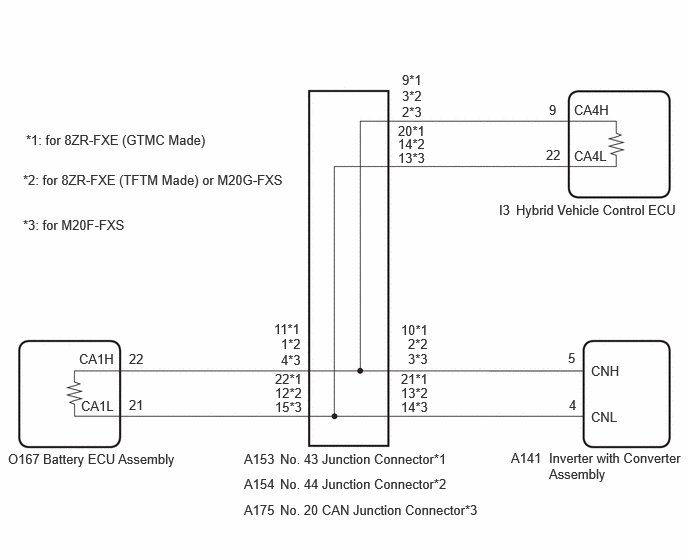

WIRING DIAGRAM

C487973E08
2.917,4.698 4.927,5.031 2.01,0.333 10 false No. 43 Junction Connector*1 2.542,4.698 2.969,5.021 0.427,0.323 10 false A153 4.188,0.917 4.615,1.24 0.427,0.323 10 false 3*2 4.146,1.417 4.573,1.74 0.427,0.323 10 false 14*2 2.865,4.156 3.292,4.479 0.427,0.323 10 false 15*3 4.177,4.156 4.604,4.479 0.427,0.323 10 false 14*3 4.25,3.656 4.677,3.979 0.427,0.323 10 false 3*3 2.927,3.667 3.354,3.99 0.427,0.323 10 false 4*3 5.375,2.104 7.115,2.406 1.74,0.302 10 false Hybrid Vehicle Control ECU 5.198,2.104 5.625,2.427 0.427,0.323 10 false I3 5.719,1.063 6.146,1.385 0.427,0.323 10 false 9 5.688,1.531 6.115,1.854 0.427,0.323 10 false 22 5.979,1.063 6.406,1.385 0.427,0.323 10 false CA4H 5.979,1.542 6.406,1.865 0.427,0.323 10 false CA4L 5.719,4.688 7.083,5.094 1.365,0.406 10 false Inverter with Converter Assembly 5.323,4.688 5.75,5.01 0.427,0.323 10 false A141 6.156,3.781 6.583,4.104 0.427,0.323 10 false CNH 6.156,4.26 6.583,4.583 0.427,0.323 10 false CNL 5.917,3.646 6.344,3.969 0.427,0.323 10 false 5 5.927,4.135 6.354,4.458 0.427,0.323 10 false 4 0.448,4.698 2.458,5.031 2.01,0.333 10 false Battery ECU Assembly 0.083,4.698 0.51,5.021 0.427,0.323 10 false O167 1.344,3.656 1.771,3.979 0.427,0.323 10 false 22 1.344,4.135 1.771,4.458 0.427,0.323 10 false 21 0.823,3.656 1.25,3.979 0.427,0.323 10 false CA1H 0.844,4.146 1.271,4.469 0.427,0.323 10 false CA1L 0.271,1.375 2.281,1.708 2.01,0.333 10 false *1: for 8ZR-FXE (GTMC Made) 2.917,4.958 4.927,5.292 2.01,0.333 10 false No. 44 Junction Connector*2 2.542,4.958 2.969,5.281 0.427,0.323 10 false A154 4.188,0.75 4.615,1.073 0.427,0.323 10 false 9*1 4.146,1.281 4.573,1.604 0.427,0.323 10 false 20*1 2.854,3.344 3.281,3.667 0.427,0.323 10 false 11*1 4.25,3.5 4.677,3.823 0.427,0.323 10 false 2*2 4.177,3.865 4.604,4.188 0.427,0.323 10 false 21*1 0.24,1.792 3.156,2.156 2.917,0.365 10 false *2: for 8ZR-FXE (TFTM Made) or M20G-FXS 0.24,2.26 3.156,2.625 2.917,0.365 10 false *3: for M20F-FXS 2.542,5.229 2.969,5.552 0.427,0.323 10 false A175 2.917,5.229 5.49,5.563 2.573,0.333 10 false No. 20 CAN Junction Connector*3 4.188,1.083 4.615,1.406 0.427,0.323 10 false 2*3 4.146,1.563 4.573,1.885 0.427,0.323 10 false 13*3 4.177,3.354 4.604,3.677 0.427,0.323 10 false 10*1 4.177,4.01 4.604,4.333 0.427,0.323 10 false 13*2 2.927,3.5 3.354,3.823 0.427,0.323 10 false 1*2 2.865,3.865 3.292,4.188 0.427,0.323 10 false 22*1 2.865,4.01 3.292,4.333 0.427,0.323 10 false 12*2

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HV Model)>DIAGNOSIS SYSTEM

·

Before replacing the hybrid vehicle control ECU, refer to Service Bulletin.



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN MAIN BUS LINES
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Measure the resistance according to the value(s) in the table below.

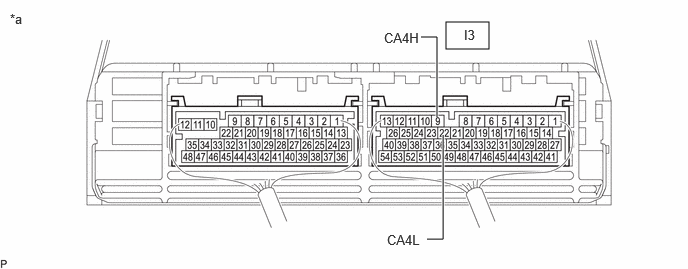

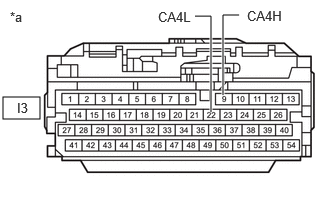

C492791C04
4.646,0.229 5.094,0.51 0.448,0.281 4.615,1.406 4.615,2.49 4.615,2.49 4.448,2.49 true 4.552,1.219 4.552,0.385 4.552,0.385 4.385,0.385 true 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a 4.833,0.281 5.292,0.479 0.458,0.198 10 false I3 4,0.313 4.615,0.51 0.615,0.198 10 false CA4H 4.031,2.417 4.646,2.615 0.615,0.198 10 false CA4L
*a Component with harness connected
(Hybrid Vehicle Control ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I3-9 (CA4H) - I3-22 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω



Result:
Result
OK
NG



OK

2.CHECK FOR SHORT IN CAN BUS LINES

NG

62.CHECK FOR OPEN IN CAN MAIN BUS LINES (HYBRID VEHICLE CONTROL ECU)
2.CHECK FOR SHORT IN CAN BUS LINES
a.

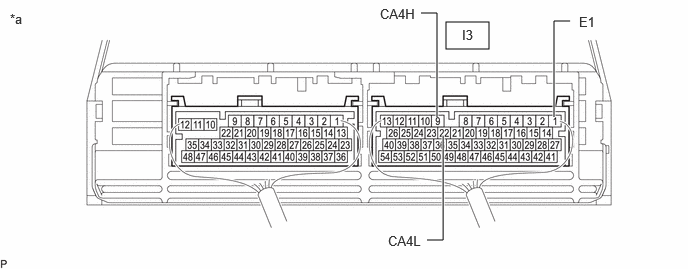

Measure the resistance according to the value(s) in the table below.

C492791C04
4.646,0.229 5.094,0.51 0.448,0.281 4.615,1.406 4.615,2.49 4.615,2.49 4.448,2.49 true 4.552,1.219 4.552,0.385 4.552,0.385 4.385,0.385 true 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a 4.833,0.281 5.292,0.479 0.458,0.198 10 false I3 4,0.313 4.615,0.51 0.615,0.198 10 false CA4H 4.031,2.417 4.646,2.615 0.615,0.198 10 false CA4L
*a Component with harness connected
(Hybrid Vehicle Control ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I3-9 (CA4H) - I3-22 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher



Result:
Result
OK
NG



OK

3.CHECK FOR SHORT TO +B IN CAN BUS LINE

NG

43.CHECK VEHICLE TYPE
3.CHECK FOR SHORT TO +B IN CAN BUS LINE
a.

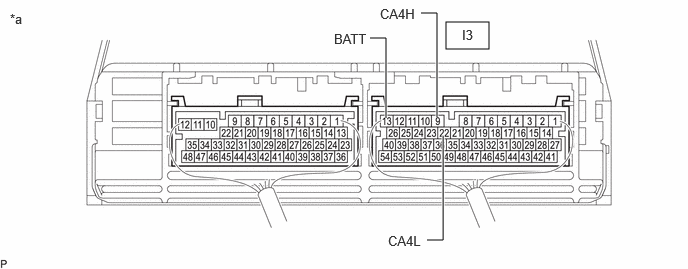

Measure the resistance according to the value(s) in the table below.

C492791C05
4.646,0.229 5.094,0.51 0.448,0.281 4.615,1.417 4.615,2.5 4.615,2.5 4.448,2.5 true 4.552,1.219 4.552,0.135 4.552,0.135 4.385,0.135 true 4.021,1.229 4.021,0.396 4.021,0.396 3.854,0.396 true 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a 4.813,0.281 5.271,0.479 0.458,0.198 10 false I3 3.958,0.063 4.573,0.26 0.615,0.198 10 false CA4H 4.042,2.427 4.656,2.625 0.615,0.198 10 false CA4L 3.479,0.323 4.094,0.521 0.615,0.198 10 false BATT
*a Component with harness connected
(Hybrid Vehicle Control ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I3-9 (CA4H) - I3-13 (BATT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I3-22 (CA4L) - I3-13 (BATT)



Result:
Result
OK
NG



OK

4.CHECK FOR SHORT TO GND IN CAN BUS LINE

NG

24.CHECK VEHICLE TYPE
4.CHECK FOR SHORT TO GND IN CAN BUS LINE
a.

Measure the resistance according to the value(s) in the table below.

C492791C06
4.646,0.229 5.094,0.51 0.448,0.281 4.615,1.417 4.615,2.5 4.615,2.5 4.448,2.5 true 4.552,1.219 4.552,0.135 4.552,0.135 4.385,0.135 true 5.771,1.219 5.771,0.219 5.771,0.219 5.938,0.219 true 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a 4.813,0.281 5.271,0.479 0.458,0.198 10 false I3 3.958,0.063 4.573,0.26 0.615,0.198 10 false CA4H 4.042,2.427 4.656,2.625 0.615,0.198 10 false CA4L 6.031,0.146 6.646,0.344 0.615,0.198 10 false E1
*a Component with harness connected
(Hybrid Vehicle Control ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I3-9 (CA4H) - I3-1 (E1) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I3-22 (CA4L) - I3-1 (E1)



Result:
Result
OK
NG



OK

INSPECT FOR INTERMITTENT PROBLEMS

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

5.CHECK VEHICLE TYPE
5.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for 8ZR-FXE (GTMC Made) A
for 8ZR-FXE (TFTM Made) or M20G-FXS B
for M20F-FXS C



A

6.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

B

12.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

C

18.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
6.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the A153 No. 43 junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C87
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.76,0.302 2.594,0.302 2.594,0.302 2.594,0.885 true 2.75,1.51 2.583,1.51 2.583,1.51 2.583,1.094 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A153 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 2.844,0.219 3.375,0.438 0.531,0.219 10 false CANH*b 2.802,1.427 3.333,1.646 0.531,0.219 10 false CANL*b
*1 DLC3 - -

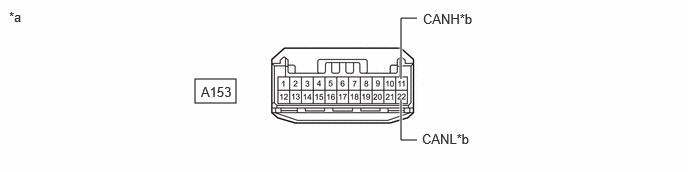

*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A153-9 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A153-20 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

7.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
7.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

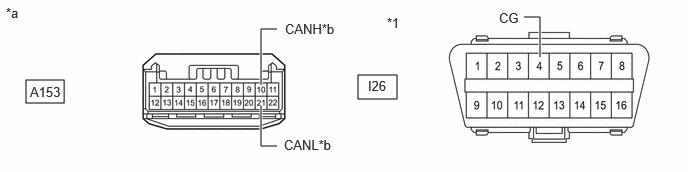

C487982C89
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.885,1.521 2.719,1.521 2.719,1.521 2.719,1.104 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 2.885,0.302 2.719,0.302 2.719,0.302 2.719,0.885 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A153 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 2.969,0.219 3.5,0.438 0.531,0.219 10 false CANH*b 2.958,1.427 3.49,1.646 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A153-10 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A153-21 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

8.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
8.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C487982C88
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 3,1.521 2.833,1.521 2.833,1.521 2.833,1.104 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 3,0.302 2.833,0.302 2.833,0.302 2.833,0.885 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A153 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 3.073,0.219 3.604,0.438 0.531,0.219 10 false CANH*b 3.063,1.427 3.594,1.646 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A153-11 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A153-22 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 43 JUNCTION CONNECTOR

NG

11.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C87
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.76,0.302 2.594,0.302 2.594,0.302 2.594,0.885 true 2.75,1.51 2.583,1.51 2.583,1.51 2.583,1.094 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A153 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 2.844,0.219 3.375,0.438 0.531,0.219 10 false CANH*b 2.802,1.427 3.333,1.646 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A153-9 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A153-20 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A141 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C89
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.885,1.521 2.719,1.521 2.719,1.521 2.719,1.104 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 2.885,0.302 2.719,0.302 2.719,0.302 2.719,0.885 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A153 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 2.969,0.219 3.5,0.438 0.531,0.219 10 false CANH*b 2.958,1.427 3.49,1.646 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A153-10 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A153-21 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

11.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the O167 battery ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C88
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 3,1.521 2.833,1.521 2.833,1.521 2.833,1.104 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 3,0.302 2.833,0.302 2.833,0.302 2.833,0.885 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A153 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 3.073,0.219 3.604,0.438 0.531,0.219 10 false CANH*b 3.063,1.427 3.594,1.646 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A153-11 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A153-22 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

12.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the A154 No. 44 junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C96
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.688,0.302 1.854,0.302 1.854,0.302 1.854,0.885 true 1.688,1.531 1.854,1.531 1.854,1.531 1.854,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A154 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.115,0.219 1.646,0.438 0.531,0.219 10 false CANH*b 1.146,1.448 1.677,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -

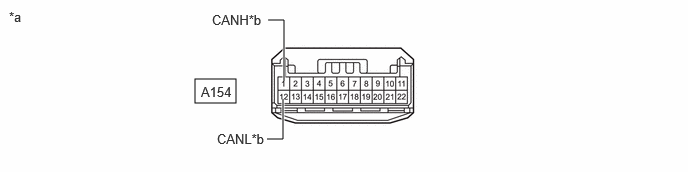

*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A154-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A154-14 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

13.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

15.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
13.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C487982C94
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.563,0.302 1.729,0.302 1.729,0.302 1.729,0.885 true 1.573,1.531 1.74,1.531 1.74,1.531 1.74,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A154 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 0.99,0.219 1.521,0.438 0.531,0.219 10 false CANH*b 1.021,1.448 1.552,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A154-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A154-13 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

14.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

16.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
14.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C487982C93
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.448,0.302 1.615,0.302 1.615,0.302 1.615,0.885 true 1.448,1.531 1.615,1.531 1.615,1.531 1.615,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A154 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 0.854,0.219 1.385,0.438 0.531,0.219 10 false CANH*b 0.906,1.448 1.438,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A154-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A154-12 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 44 JUNCTION CONNECTOR

NG

17.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
15.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C96
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.688,0.302 1.854,0.302 1.854,0.302 1.854,0.885 true 1.688,1.531 1.854,1.531 1.854,1.531 1.854,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A154 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.115,0.219 1.646,0.438 0.531,0.219 10 false CANH*b 1.146,1.448 1.677,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A154-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A154-14 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

16.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A141 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C94
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.563,0.302 1.729,0.302 1.729,0.302 1.729,0.885 true 1.573,1.531 1.74,1.531 1.74,1.531 1.74,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A154 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 0.99,0.219 1.521,0.438 0.531,0.219 10 false CANH*b 1.021,1.448 1.552,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A154-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A154-13 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY
·

for 8ZR-FXE

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>REMOVAL

·

for M20G-FXS

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>M20F-FXS, M20G-FXS INVERTER WITH CONVERTER>REMOVAL



NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

17.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the O167 battery ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C93
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.448,0.302 1.615,0.302 1.615,0.302 1.615,0.885 true 1.448,1.531 1.615,1.531 1.615,1.531 1.615,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A154 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 0.854,0.219 1.385,0.438 0.531,0.219 10 false CANH*b 0.906,1.448 1.438,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A154-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A154-12 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

18.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the A175 No. 20 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C506893C01
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.563,0.302 1.729,0.302 1.729,0.302 1.729,0.885 true 1.573,1.531 1.74,1.531 1.74,1.531 1.74,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A175 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1,0.219 1.531,0.438 0.531,0.219 10 false CANH*b 1.042,1.448 1.573,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -

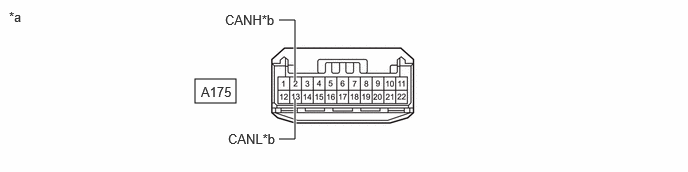

*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A175-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A175-13 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

19.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

21.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
19.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

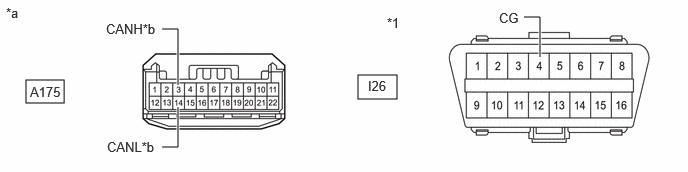

C506893C02
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.688,0.302 1.854,0.302 1.854,0.302 1.854,0.885 true 1.688,1.531 1.854,1.531 1.854,1.531 1.854,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A175 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.104,0.219 1.635,0.438 0.531,0.219 10 false CANH*b 1.115,1.448 1.646,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -

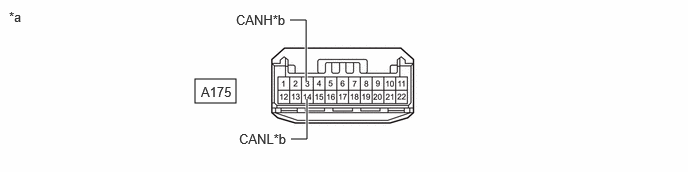

*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A175-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A175-14 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

20.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

22.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
20.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C506893C03
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.813,0.302 1.979,0.302 1.979,0.302 1.979,0.885 true 1.813,1.531 1.979,1.531 1.979,1.531 1.979,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A175 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.24,0.219 1.771,0.438 0.531,0.219 10 false CANH*b 1.271,1.448 1.802,1.667 0.531,0.219 10 false CANL*b

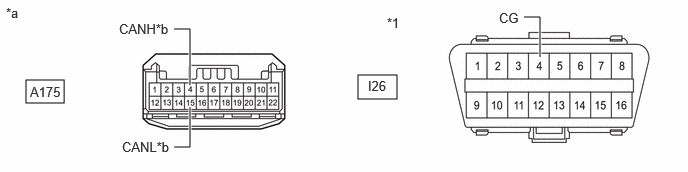

*1 DLC3 - -
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A175-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A175-15 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 20 CAN JUNCTION CONNECTOR

NG

23.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
21.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C506893C01
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.563,0.302 1.729,0.302 1.729,0.302 1.729,0.885 true 1.573,1.531 1.74,1.531 1.74,1.531 1.74,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A175 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1,0.219 1.531,0.438 0.531,0.219 10 false CANH*b 1.042,1.448 1.573,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A175-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A175-13 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

22.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A141 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C506893C02
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.688,0.302 1.854,0.302 1.854,0.302 1.854,0.885 true 1.688,1.531 1.854,1.531 1.854,1.531 1.854,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A175 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.104,0.219 1.635,0.438 0.531,0.219 10 false CANH*b 1.115,1.448 1.646,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A175-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A175-14 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>M20F-FXS, M20G-FXS INVERTER WITH CONVERTER>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

23.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the O167 battery ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C506893C03
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.813,0.302 1.979,0.302 1.979,0.302 1.979,0.885 true 1.813,1.531 1.979,1.531 1.979,1.531 1.979,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A175 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.24,0.219 1.771,0.438 0.531,0.219 10 false CANH*b 1.271,1.448 1.802,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A175-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A175-15 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

24.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for 8ZR-FXE (GTMC Made) A
for 8ZR-FXE (TFTM Made) or M20G-FXS B
for M20F-FXS C



A

25.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

B

31.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

C

37.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
25.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the A153 No. 43 junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C90
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.76,0.302 2.594,0.302 2.594,0.302 2.594,0.885 true 2.75,1.51 2.583,1.51 2.583,1.51 2.583,1.094 true 6.646,1.479 6.479,1.479 6.479,1.479 6.479,1.146 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A153 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 6.719,1.396 7.135,1.604 0.417,0.208 10 false BAT 2.844,0.219 3.375,0.438 0.531,0.219 10 false CANH*b 2.802,1.427 3.333,1.646 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A153-9 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A153-20 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

26.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

28.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
26.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C487982C92
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.885,1.521 2.719,1.521 2.719,1.521 2.719,1.104 true 6.635,1.479 6.469,1.479 6.469,1.479 6.469,1.146 true 2.885,0.302 2.719,0.302 2.719,0.302 2.719,0.885 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A153 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.698,1.396 7.115,1.604 0.417,0.208 10 false BAT 2.969,0.219 3.5,0.438 0.531,0.219 10 false CANH*b 2.958,1.427 3.49,1.646 0.531,0.219 10 false CANL*b

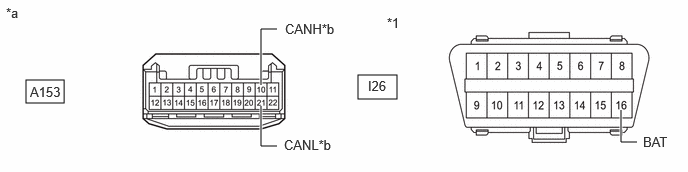

*1 DLC3 - -
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A153-10 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A153-21 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

27.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

29.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
27.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C487982C91
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 3.01,0.302 2.844,0.302 2.844,0.302 2.844,0.885 true 3,1.51 2.833,1.51 2.833,1.51 2.833,1.094 true 6.646,1.479 6.479,1.479 6.479,1.479 6.479,1.146 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A153 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 6.719,1.396 7.135,1.604 0.417,0.208 10 false BAT 3.063,0.219 3.594,0.438 0.531,0.219 10 false CANH*b 3.052,1.427 3.583,1.646 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A153-11 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A153-22 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 43 JUNCTION CONNECTOR

NG

30.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
28.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C90
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.76,0.302 2.594,0.302 2.594,0.302 2.594,0.885 true 2.75,1.51 2.583,1.51 2.583,1.51 2.583,1.094 true 6.646,1.479 6.479,1.479 6.479,1.479 6.479,1.146 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A153 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 6.719,1.396 7.135,1.604 0.417,0.208 10 false BAT 2.844,0.219 3.375,0.438 0.531,0.219 10 false CANH*b 2.802,1.427 3.333,1.646 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A153-9 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A153-20 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

29.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A141 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C92
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.885,1.521 2.719,1.521 2.719,1.521 2.719,1.104 true 6.635,1.479 6.469,1.479 6.469,1.479 6.469,1.146 true 2.885,0.302 2.719,0.302 2.719,0.302 2.719,0.885 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A153 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.698,1.396 7.115,1.604 0.417,0.208 10 false BAT 2.969,0.219 3.5,0.438 0.531,0.219 10 false CANH*b 2.958,1.427 3.49,1.646 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A153-10 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A153-21 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

30.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the O167 battery ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C91
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 3.01,0.302 2.844,0.302 2.844,0.302 2.844,0.885 true 3,1.51 2.833,1.51 2.833,1.51 2.833,1.094 true 6.646,1.479 6.479,1.479 6.479,1.479 6.479,1.146 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A153 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 6.719,1.396 7.135,1.604 0.417,0.208 10 false BAT 3.063,0.219 3.594,0.438 0.531,0.219 10 false CANH*b 3.052,1.427 3.583,1.646 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A153-11 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A153-22 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

31.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the A154 No. 44 junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C95
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.688,0.302 1.854,0.302 1.854,0.302 1.854,0.885 true 1.698,1.531 1.865,1.531 1.865,1.531 1.865,1.115 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A154 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.708,1.469 7.125,1.677 0.417,0.208 10 false BAT 1.135,0.219 1.667,0.438 0.531,0.219 10 false CANH*b 1.167,1.448 1.698,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A154-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A154-14 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

32.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

34.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
32.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

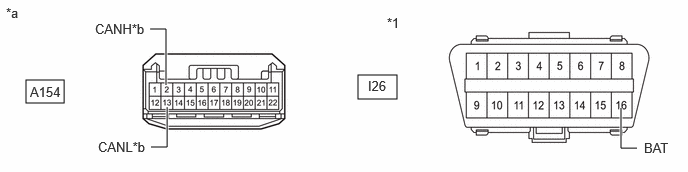

Measure the resistance according to the value(s) in the table below.

C487982C97
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.563,0.302 1.729,0.302 1.729,0.302 1.729,0.885 true 1.573,1.531 1.74,1.531 1.74,1.531 1.74,1.115 true 6.635,1.542 6.469,1.542 6.469,1.542 6.469,1.125 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A154 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.708,1.458 7.125,1.667 0.417,0.208 10 false BAT 0.99,0.219 1.521,0.438 0.531,0.219 10 false CANH*b 1.021,1.448 1.552,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A154-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A154-13 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

33.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

35.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
33.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

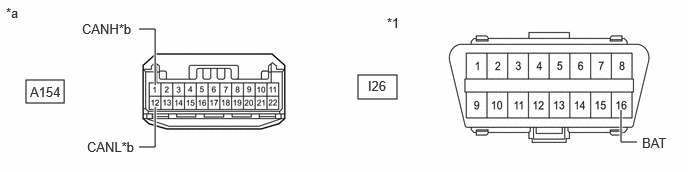

Measure the resistance according to the value(s) in the table below.

C487982C98
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.448,0.302 1.615,0.302 1.615,0.302 1.615,0.885 true 1.448,1.531 1.615,1.531 1.615,1.531 1.615,1.115 true 6.635,1.479 6.469,1.479 6.469,1.479 6.469,1.146 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A154 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.688,1.406 7.104,1.615 0.417,0.208 10 false BAT 0.854,0.219 1.385,0.438 0.531,0.219 10 false CANH*b 0.906,1.448 1.438,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A154-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A154-12 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 44 JUNCTION CONNECTOR

NG

36.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
34.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C95
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.688,0.302 1.854,0.302 1.854,0.302 1.854,0.885 true 1.698,1.531 1.865,1.531 1.865,1.531 1.865,1.115 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A154 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.708,1.469 7.125,1.677 0.417,0.208 10 false BAT 1.135,0.219 1.667,0.438 0.531,0.219 10 false CANH*b 1.167,1.448 1.698,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A154-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A154-14 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

35.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A141 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C97
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.563,0.302 1.729,0.302 1.729,0.302 1.729,0.885 true 1.573,1.531 1.74,1.531 1.74,1.531 1.74,1.115 true 6.635,1.542 6.469,1.542 6.469,1.542 6.469,1.125 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A154 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.708,1.458 7.125,1.667 0.417,0.208 10 false BAT 0.99,0.219 1.521,0.438 0.531,0.219 10 false CANH*b 1.021,1.448 1.552,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A154-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A154-13 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY
·

for 8ZR-FXE

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>REMOVAL

·

for M20G-FXS

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>M20F-FXS, M20G-FXS INVERTER WITH CONVERTER>REMOVAL



NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

36.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the O167 battery ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487982C98
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.448,0.302 1.615,0.302 1.615,0.302 1.615,0.885 true 1.448,1.531 1.615,1.531 1.615,1.531 1.615,1.115 true 6.635,1.479 6.469,1.479 6.469,1.479 6.469,1.146 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A154 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.688,1.406 7.104,1.615 0.417,0.208 10 false BAT 0.854,0.219 1.385,0.438 0.531,0.219 10 false CANH*b 0.906,1.448 1.438,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A154-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A154-12 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

37.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the A175 No. 20 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C506893C04
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.563,0.302 1.729,0.302 1.729,0.302 1.729,0.885 true 1.573,1.531 1.74,1.531 1.74,1.531 1.74,1.115 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A175 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.708,1.469 7.125,1.677 0.417,0.208 10 false BAT 1,0.219 1.531,0.438 0.531,0.219 10 false CANH*b 1.052,1.448 1.583,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A175-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A175-13 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

38.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

40.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
38.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

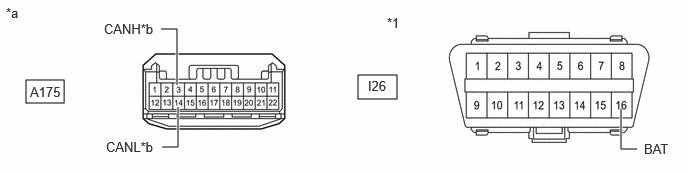

Measure the resistance according to the value(s) in the table below.

C506893C05
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.677,0.302 1.844,0.302 1.844,0.302 1.844,0.885 true 1.688,1.531 1.854,1.531 1.854,1.531 1.854,1.115 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A175 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.708,1.469 7.125,1.677 0.417,0.208 10 false BAT 1.083,0.219 1.615,0.438 0.531,0.219 10 false CANH*b 1.104,1.448 1.635,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A175-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A175-14 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

39.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

41.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
39.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C506893C06
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.802,0.302 1.969,0.302 1.969,0.302 1.969,0.885 true 1.813,1.531 1.979,1.531 1.979,1.531 1.979,1.115 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A175 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.708,1.469 7.125,1.677 0.417,0.208 10 false BAT 1.219,0.219 1.75,0.438 0.531,0.219 10 false CANH*b 1.25,1.448 1.781,1.667 0.531,0.219 10 false CANL*b

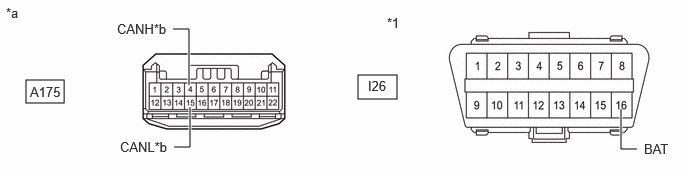

*1 DLC3 - -
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A175-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A175-15 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 20 CAN JUNCTION CONNECTOR

NG

42.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
40.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C506893C04
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.563,0.302 1.729,0.302 1.729,0.302 1.729,0.885 true 1.573,1.531 1.74,1.531 1.74,1.531 1.74,1.115 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A175 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.708,1.469 7.125,1.677 0.417,0.208 10 false BAT 1,0.219 1.531,0.438 0.531,0.219 10 false CANH*b 1.052,1.448 1.583,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A175-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A175-13 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

41.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A141 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C506893C05
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.677,0.302 1.844,0.302 1.844,0.302 1.844,0.885 true 1.688,1.531 1.854,1.531 1.854,1.531 1.854,1.115 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A175 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.708,1.469 7.125,1.677 0.417,0.208 10 false BAT 1.083,0.219 1.615,0.438 0.531,0.219 10 false CANH*b 1.104,1.448 1.635,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A175-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A175-14 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>M20F-FXS, M20G-FXS INVERTER WITH CONVERTER>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

42.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the O167 battery ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C506893C06
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.802,0.302 1.969,0.302 1.969,0.302 1.969,0.885 true 1.813,1.531 1.979,1.531 1.979,1.531 1.979,1.115 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.313,0.875 0.792,1.094 0.479,0.219 10 false A175 3.833,0.813 4.146,1.01 0.313,0.198 10 false I26 6.708,1.469 7.125,1.677 0.417,0.208 10 false BAT 1.219,0.219 1.75,0.438 0.531,0.219 10 false CANH*b 1.25,1.448 1.781,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A175-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A175-15 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

43.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for 8ZR-FXE (GTMC Made) A
for 8ZR-FXE (TFTM Made) or M20G-FXS B
for M20F-FXS C



A

44.CHECK FOR SHORT IN CAN BUS LINES (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

B

50.CHECK FOR SHORT IN CAN BUS LINES (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

C

56.CHECK FOR SHORT IN CAN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
44.CHECK FOR SHORT IN CAN BUS LINES (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the A153 No. 43 junction connector.


b.

Measure the resistance according to the value(s) in the table below.

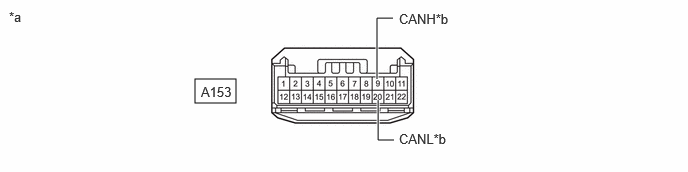

C503899C09
2.031,0.823 2.458,1.073 0.427,0.25 4.094,0.188 3.927,0.188 3.927,0.188 3.927,0.823 true 4.104,1.458 3.938,1.458 3.938,1.458 3.938,1.042 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A153 4.156,0.115 4.823,0.344 0.667,0.229 10 false CANH*b 4.156,1.365 4.792,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A153-9 (CANH) - A153-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

45.CHECK FOR SHORT IN CAN BUS LINES (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

47.CHECK FOR SHORT IN CAN BUS LINES (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
45.CHECK FOR SHORT IN CAN BUS LINES (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503899C11
2.031,0.823 2.458,1.073 0.427,0.25 4.219,0.188 4.052,0.188 4.052,0.188 4.052,0.823 true 4.229,1.458 4.063,1.458 4.063,1.458 4.063,1.042 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A153 4.292,0.115 4.958,0.344 0.667,0.229 10 false CANH*b 4.302,1.375 4.938,1.583 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A153-10 (CANH) - A153-21 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

46.CHECK FOR SHORT IN CAN BUS LINES (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

48.CHECK FOR SHORT IN CAN BUS LINES (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
46.CHECK FOR SHORT IN CAN BUS LINES (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503899C10
2.031,0.823 2.458,1.073 0.427,0.25 4.344,0.188 4.177,0.188 4.177,0.188 4.177,0.823 true 4.344,1.458 4.177,1.458 4.177,1.458 4.177,1.042 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A153 4.406,0.115 5.073,0.344 0.667,0.229 10 false CANH*b 4.396,1.365 5.031,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A153-11 (CANH) - A153-22 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 43 JUNCTION CONNECTOR

NG

49.CHECK FOR SHORT IN CAN BUS LINES (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
47.CHECK FOR SHORT IN CAN BUS LINES (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C09
2.031,0.823 2.458,1.073 0.427,0.25 4.094,0.188 3.927,0.188 3.927,0.188 3.927,0.823 true 4.104,1.458 3.938,1.458 3.938,1.458 3.938,1.042 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A153 4.156,0.115 4.823,0.344 0.667,0.229 10 false CANH*b 4.156,1.365 4.792,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A153-9 (CANH) - A153-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

48.CHECK FOR SHORT IN CAN BUS LINES (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A141 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C11
2.031,0.823 2.458,1.073 0.427,0.25 4.219,0.188 4.052,0.188 4.052,0.188 4.052,0.823 true 4.229,1.458 4.063,1.458 4.063,1.458 4.063,1.042 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A153 4.292,0.115 4.958,0.344 0.667,0.229 10 false CANH*b 4.302,1.375 4.938,1.583 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A153-10 (CANH) - A153-21 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 43 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

49.CHECK FOR SHORT IN CAN BUS LINES (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the O167 battery ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C10
2.031,0.823 2.458,1.073 0.427,0.25 4.344,0.188 4.177,0.188 4.177,0.188 4.177,0.823 true 4.344,1.458 4.177,1.458 4.177,1.458 4.177,1.042 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A153 4.406,0.115 5.073,0.344 0.667,0.229 10 false CANH*b 4.396,1.365 5.031,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A153-11 (CANH) - A153-22 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

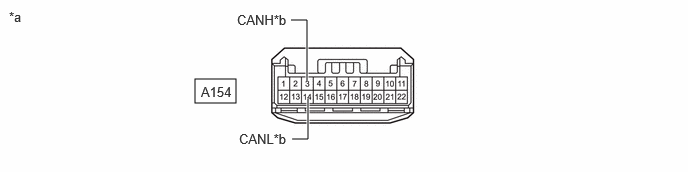

50.CHECK FOR SHORT IN CAN BUS LINES (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the A154 No. 44 junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C12
2.031,0.823 2.458,1.073 0.427,0.25 3.031,0.208 3.198,0.208 3.198,0.208 3.198,0.844 true 3.042,1.448 3.208,1.448 3.208,1.448 3.208,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A154 2.469,0.125 3.135,0.354 0.667,0.229 10 false CANH*b 2.49,1.365 3.125,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A154-3 (CANH) - A154-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

51.CHECK FOR SHORT IN CAN BUS LINES (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

53.CHECK FOR SHORT IN CAN BUS LINES (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

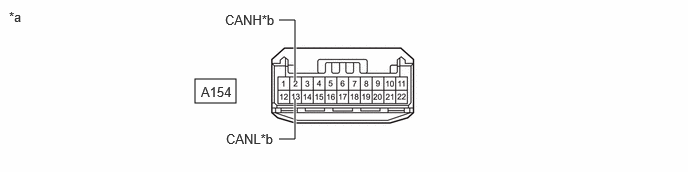

51.CHECK FOR SHORT IN CAN BUS LINES (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503899C13
2.031,0.823 2.458,1.073 0.427,0.25 2.906,0.208 3.073,0.208 3.073,0.208 3.073,0.844 true 2.906,1.448 3.073,1.448 3.073,1.448 3.073,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A154 2.344,0.125 3.01,0.354 0.667,0.229 10 false CANH*b 2.354,1.365 2.99,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A154-2 (CANH) - A154-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

52.CHECK FOR SHORT IN CAN BUS LINES (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

54.CHECK FOR SHORT IN CAN BUS LINES (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
52.CHECK FOR SHORT IN CAN BUS LINES (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503899C14
2.031,0.823 2.458,1.073 0.427,0.25 2.792,0.208 2.958,0.208 2.958,0.208 2.958,0.844 true 2.781,1.448 2.948,1.448 2.948,1.448 2.948,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A154 2.208,0.125 2.875,0.354 0.667,0.229 10 false CANH*b 2.26,1.365 2.896,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A154-1 (CANH) - A154-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 44 JUNCTION CONNECTOR

NG

55.CHECK FOR SHORT IN CAN BUS LINES (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
53.CHECK FOR SHORT IN CAN BUS LINES (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C12
2.031,0.823 2.458,1.073 0.427,0.25 3.031,0.208 3.198,0.208 3.198,0.208 3.198,0.844 true 3.042,1.448 3.208,1.448 3.208,1.448 3.208,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A154 2.469,0.125 3.135,0.354 0.667,0.229 10 false CANH*b 2.49,1.365 3.125,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A154-3 (CANH) - A154-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

54.CHECK FOR SHORT IN CAN BUS LINES (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A141 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C13
2.031,0.823 2.458,1.073 0.427,0.25 2.906,0.208 3.073,0.208 3.073,0.208 3.073,0.844 true 2.906,1.448 3.073,1.448 3.073,1.448 3.073,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A154 2.344,0.125 3.01,0.354 0.667,0.229 10 false CANH*b 2.354,1.365 2.99,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A154-2 (CANH) - A154-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY
·

for 8ZR-FXE

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>REMOVAL

·

for M20G-FXS

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>M20F-FXS, M20G-FXS INVERTER WITH CONVERTER>REMOVAL



NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 44 JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

55.CHECK FOR SHORT IN CAN BUS LINES (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the O167 battery ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C14
2.031,0.823 2.458,1.073 0.427,0.25 2.792,0.208 2.958,0.208 2.958,0.208 2.958,0.844 true 2.781,1.448 2.948,1.448 2.948,1.448 2.948,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A154 2.208,0.125 2.875,0.354 0.667,0.229 10 false CANH*b 2.26,1.365 2.896,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A154-1 (CANH) - A154-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

56.CHECK FOR SHORT IN CAN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the A175 No. 20 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C95
2.031,0.823 2.458,1.073 0.427,0.25 2.906,0.208 3.073,0.208 3.073,0.208 3.073,0.844 true 2.906,1.448 3.073,1.448 3.073,1.448 3.073,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A175 2.344,0.125 3.01,0.354 0.667,0.229 10 false CANH*b 2.375,1.365 3.01,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A175-2 (CANH) - A175-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

57.CHECK FOR SHORT IN CAN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

59.CHECK FOR SHORT IN CAN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
57.CHECK FOR SHORT IN CAN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503899C96
2.031,0.823 2.458,1.073 0.427,0.25 3.021,0.208 3.188,0.208 3.188,0.208 3.188,0.844 true 3.031,1.448 3.198,1.448 3.198,1.448 3.198,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A175 2.458,0.125 3.125,0.354 0.667,0.229 10 false CANH*b 2.49,1.365 3.125,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A175-3 (CANH) - A175-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

58.CHECK FOR SHORT IN CAN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

60.CHECK FOR SHORT IN CAN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

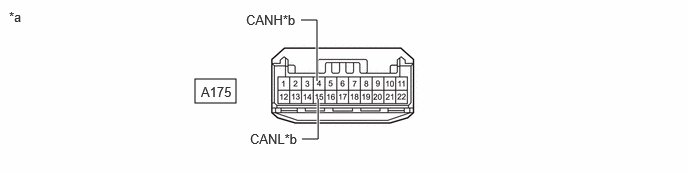

58.CHECK FOR SHORT IN CAN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503899C97
2.031,0.823 2.458,1.073 0.427,0.25 3.135,0.208 3.302,0.208 3.302,0.208 3.302,0.844 true 3.146,1.448 3.313,1.448 3.313,1.448 3.313,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A175 2.563,0.125 3.229,0.354 0.667,0.229 10 false CANH*b 2.604,1.365 3.24,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A175-4 (CANH) - A175-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 20 CAN JUNCTION CONNECTOR

NG

61.CHECK FOR SHORT IN CAN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
59.CHECK FOR SHORT IN CAN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C95
2.031,0.823 2.458,1.073 0.427,0.25 2.906,0.208 3.073,0.208 3.073,0.208 3.073,0.844 true 2.906,1.448 3.073,1.448 3.073,1.448 3.073,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A175 2.344,0.125 3.01,0.354 0.667,0.229 10 false CANH*b 2.375,1.365 3.01,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A175-2 (CANH) - A175-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

60.CHECK FOR SHORT IN CAN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A141 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C96
2.031,0.823 2.458,1.073 0.427,0.25 3.021,0.208 3.188,0.208 3.188,0.208 3.188,0.844 true 3.031,1.448 3.198,1.448 3.198,1.448 3.198,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A175 2.458,0.125 3.125,0.354 0.667,0.229 10 false CANH*b 2.49,1.365 3.125,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A175-3 (CANH) - A175-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>M20F-FXS, M20G-FXS INVERTER WITH CONVERTER>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 20 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

61.CHECK FOR SHORT IN CAN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the O167 battery ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C97
2.031,0.823 2.458,1.073 0.427,0.25 3.135,0.208 3.302,0.208 3.302,0.208 3.302,0.844 true 3.146,1.448 3.313,1.448 3.313,1.448 3.313,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A175 2.563,0.125 3.229,0.354 0.667,0.229 10 false CANH*b 2.604,1.365 3.24,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A175-4 (CANH) - A175-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

62.CHECK FOR OPEN IN CAN MAIN BUS LINES (HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.
C434852C22
0.031,1.01 0.417,1.24 0.385,0.229 2.323,0.99 2.323,0.156 2.323,0.156 2.49,0.156 true 2.198,1.167 2.198,0.167 2.198,0.167 2.031,0.167 true 0.104,0.094 0.417,0.292 0.313,0.198 10 false *a 0.177,1.042 0.49,1.24 0.313,0.198 10 false I3 2.573,0.083 2.979,0.271 0.406,0.188 10 false CA4H 1.646,0.094 2.26,0.344 0.615,0.25 10 false CA4L
*a Front view of wire harness connector
(to Hybrid Vehicle Control ECU)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I3-9 (CA4H) - I3-22 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

63.CHECK VEHICLE TYPE
63.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for 8ZR-FXE (GTMC Made) A
for 8ZR-FXE (TFTM Made) or M20G-FXS B
for M20F-FXS C



A

64.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

B

67.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

C

70.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
64.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Reconnect the I3 hybrid vehicle control ECU connector.


b.

Disconnect the A153 No. 43 junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503899C09
2.031,0.823 2.458,1.073 0.427,0.25 4.094,0.188 3.927,0.188 3.927,0.188 3.927,0.823 true 4.104,1.458 3.938,1.458 3.938,1.458 3.938,1.042 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A153 4.156,0.115 4.823,0.344 0.667,0.229 10 false CANH*b 4.156,1.365 4.792,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A153-9 (CANH) - A153-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

65.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 43 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

65.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 43 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503899C10
2.031,0.823 2.458,1.073 0.427,0.25 4.344,0.188 4.177,0.188 4.177,0.188 4.177,0.823 true 4.344,1.458 4.177,1.458 4.177,1.458 4.177,1.042 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A153 4.406,0.115 5.073,0.344 0.667,0.229 10 false CANH*b 4.396,1.365 5.031,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 43 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A153-11 (CANH) - A153-22 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 43 JUNCTION CONNECTOR

NG

66.CHECK FOR OPEN IN CAN MAIN BUS LINES (BATTERY ECU ASSEMBLY)
66.CHECK FOR OPEN IN CAN MAIN BUS LINES (BATTERY ECU ASSEMBLY)
a.

Reconnect the A153 No. 43 junction connector.


b.

Disconnect the O167 battery ECU assembly connector.


c.

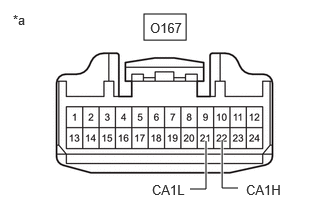

C461844C24
1.5,0.146 1.938,0.417 0.438,0.271 1.979,1.969 2.146,1.969 2.146,1.969 2.146,1.469 true 2.479,1.958 2.313,1.958 2.313,1.958 2.313,1.458 true 0.135,0.125 0.448,0.323 0.313,0.198 10 false *a 1.563,0.208 2.021,0.531 0.458,0.323 10 false O167 2.563,1.896 3.01,2.135 0.448,0.24 10 false CA1H 1.583,1.896 2.031,2.094 0.448,0.198 10 false CA1L
*a Front view of wire harness connector
(to Battery ECU Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O167-22 (CA1H) - O167-21 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (BATTERY ECU ASSEMBLY - NO. 43 JUNCTION CONNECTOR)

67.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Reconnect the I3 hybrid vehicle control ECU connector.


b.

Disconnect the A154 No. 44 junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503899C12
2.031,0.823 2.458,1.073 0.427,0.25 3.031,0.208 3.198,0.208 3.198,0.208 3.198,0.844 true 3.042,1.448 3.208,1.448 3.208,1.448 3.208,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A154 2.469,0.125 3.135,0.354 0.667,0.229 10 false CANH*b 2.49,1.365 3.125,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A154-3 (CANH) - A154-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

68.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 44 JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

68.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 44 JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503899C14
2.031,0.823 2.458,1.073 0.427,0.25 2.792,0.208 2.958,0.208 2.958,0.208 2.958,0.844 true 2.781,1.448 2.948,1.448 2.948,1.448 2.948,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A154 2.208,0.125 2.875,0.354 0.667,0.229 10 false CANH*b 2.26,1.365 2.896,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 44 Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A154-1 (CANH) - A154-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 44 JUNCTION CONNECTOR

NG

69.CHECK FOR OPEN IN CAN MAIN BUS LINES (BATTERY ECU ASSEMBLY)
69.CHECK FOR OPEN IN CAN MAIN BUS LINES (BATTERY ECU ASSEMBLY)
a.

Reconnect the A154 No. 44 junction connector.


b.

Disconnect the O167 battery ECU assembly connector.


c.
C461844C24
1.5,0.146 1.938,0.417 0.438,0.271 1.979,1.969 2.146,1.969 2.146,1.969 2.146,1.469 true 2.479,1.958 2.313,1.958 2.313,1.958 2.313,1.458 true 0.135,0.125 0.448,0.323 0.313,0.198 10 false *a 1.563,0.208 2.021,0.531 0.458,0.323 10 false O167 2.563,1.896 3.01,2.135 0.448,0.24 10 false CA1H 1.583,1.896 2.031,2.094 0.448,0.198 10 false CA1L
*a Front view of wire harness connector
(to Battery ECU Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O167-22 (CA1H) - O167-21 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (BATTERY ECU ASSEMBLY - NO. 44 JUNCTION CONNECTOR)

70.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Reconnect the I3 hybrid vehicle control ECU connector.


b.

Disconnect the A175 No. 20 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503899C95
2.031,0.823 2.458,1.073 0.427,0.25 2.906,0.208 3.073,0.208 3.073,0.208 3.073,0.844 true 2.906,1.448 3.073,1.448 3.073,1.448 3.073,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A175 2.344,0.125 3.01,0.354 0.667,0.229 10 false CANH*b 2.375,1.365 3.01,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A175-2 (CANH) - A175-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

71.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 20 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

71.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 20 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503899C97
2.031,0.823 2.458,1.073 0.427,0.25 3.135,0.208 3.302,0.208 3.302,0.208 3.302,0.844 true 3.146,1.448 3.313,1.448 3.313,1.448 3.313,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.094,0.875 2.49,1.104 0.396,0.229 10 false A175 2.563,0.125 3.229,0.354 0.667,0.229 10 false CANH*b 2.604,1.365 3.24,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 20 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A175-4 (CANH) - A175-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 20 CAN JUNCTION CONNECTOR

NG

72.CHECK FOR OPEN IN CAN MAIN BUS LINES (BATTERY ECU ASSEMBLY)
72.CHECK FOR OPEN IN CAN MAIN BUS LINES (BATTERY ECU ASSEMBLY)
a.

Reconnect the A175 No. 20 CAN junction connector.


b.

Disconnect the O167 battery ECU assembly connector.


c.
C461844C24
1.5,0.146 1.938,0.417 0.438,0.271 1.979,1.969 2.146,1.969 2.146,1.969 2.146,1.469 true 2.479,1.958 2.313,1.958 2.313,1.958 2.313,1.458 true 0.135,0.125 0.448,0.323 0.313,0.198 10 false *a 1.563,0.208 2.021,0.531 0.458,0.323 10 false O167 2.563,1.896 3.01,2.135 0.448,0.24 10 false CA1H 1.583,1.896 2.031,2.094 0.448,0.198 10 false CA1L
*a Front view of wire harness connector
(to Battery ECU Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O167-22 (CA1H) - O167-21 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (BATTERY ECU ASSEMBLY - NO. 20 CAN JUNCTION CONNECTOR)
