RM3660EC _51 Engine / Hybrid System _080778 8ZR-FXE ENGINE CONTROL _0393982 SFI SYSTEM C

8ZR-FXE ENGINE CONTROL  SFI SYSTEM  P065714  Actuator Supply Voltage "A" Circuit Short to Ground or Open


DESCRIPTION

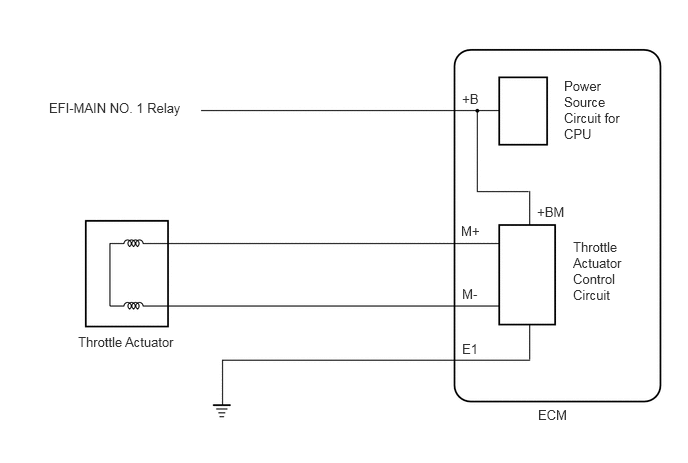

The electronic throttle control system has a dedicated power supply circuit. The voltage (+BM) is monitored and when it is low (less than 4 V), the ECM determines that there is a malfunction in the electronic throttle control system and cuts off the current to the throttle actuator.

When the voltage becomes unstable, the electronic throttle control system itself becomes unstable. For this reason, when the voltage is low, the current to the throttle actuator is cut. If repairs are made and the system returns to normal, turn the power switch off. The ECM then allows the current to flow to the throttle actuator so that it can be restarted.

A404867E07
0.51,1.042 2.438,1.406 1.927,0.365 10 false EFI-MAIN NO. 1 Relay 4.813,0.948 5.156,1.313 0.344,0.365 10 false +B 5.875,0.813 6.5,1.625 0.625,0.813 10 false Power Source Circuit for CPU 5.969,2.49 6.531,3.271 0.563,0.781 10 false Throttle Actuator Control Circuit 5.594,2.125 5.958,2.313 0.365,0.188 10 false +BM 4.802,2.323 5.167,2.51 0.365,0.188 10 false M+ 4.813,2.979 5.177,3.167 0.365,0.188 10 false M- 4.813,3.552 5.177,3.74 0.365,0.188 10 false E1 5.604,4.24 5.969,4.427 0.365,0.188 10 false ECM 0.813,3.479 2.073,3.802 1.26,0.323 10 false Throttle Actuator

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P065714 Actuator Supply Voltage "A" Circuit Short to Ground or Open An open or short is detected in the electronic throttle control system power source (+BM) circuit (1 trip detection logic).
·

Open or short in electronic throttle control system power source circuit

·

ECM


Comes on DTC stored SAE Code: P0658

MONITOR DESCRIPTION

The ECM monitors the auxiliary battery supply voltage applied to the throttle actuator.

When the power supply voltage (+BM) is less than 4 V for 0.8 seconds or more, the ECM interprets this as an open or short to ground in the power supply circuit, then illuminates the MIL and stores this DTC.

MONITOR STRATEGY

Required Sensors/Components Throttle actuator
Throttle valve (throttle body assembly)
ETCS fuse
Frequency of Operation Continuous

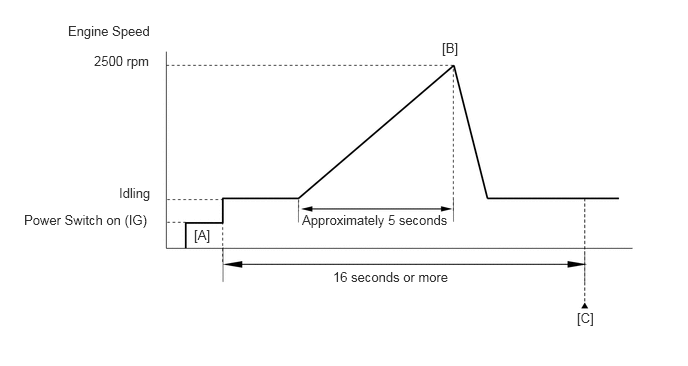

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR



A447179E01
0.979,0.552 1.823,0.906 0.844,0.354 10 false 2500 rpm 1.24,1.927 1.719,2.219 0.479,0.292 10 false Idling 0.25,2.208 1.708,2.51 1.458,0.302 10 false Power Switch on (IG) 3.146,2.208 4.875,2.51 1.729,0.302 10 false Approximately 5 seconds 3.469,2.802 4.896,3.156 1.427,0.354 10 false 16 seconds or more 2.021,2.365 2.302,2.625 0.281,0.26 10 false [A] 6.01,3.229 6.292,3.479 0.281,0.25 10 false [C] 4.604,0.417 4.99,0.698 0.385,0.281 10 false [B] 0.708,0.24 1.896,0.552 1.188,0.313 10 false Engine Speed

1.

Connect the GTS to the DLC3.

2.

Turn the power switch on (IG).

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the power switch off and wait for at least 30 seconds.

6.

Turn the power switch on (IG) [A].

7.

Turn the GTS on.

9.

Start the engine.

10.

Slowly depress the accelerator pedal, raise the engine speed to approximately 2500 rpm over approximately 5 seconds, and then idle the engine [B].

HINT:

During charge control, the engine speed is set at idle. Therefore, the engine speed will not increase when the accelerator pedal is depressed. In this case, perform step [B] after charge control has completed.


11.

Check that 16 seconds or more have elapsed since the engine was started.

12.

Enter the following menus: Powertrain / Engine / Trouble Codes [C].

13.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



14.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

15.

Input the DTC: P065714.

16.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

If the judgment result is INCOMPLETE, perform steps [B] through [C] again.

·

[A] to [C]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.




FAIL-SAFE

When this DTC is stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 5.5° throttle valve opening angle by the return spring. The ECM then adjusts the engine output, by controlling the fuel injection (intermittent fuel cut) and ignition timing, in accordance with the engine torque request signal sent from the hybrid vehicle control ECU, to allow the vehicle to continue being driven at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.

Fail-safe mode continues until a pass condition is detected, and the power switch is then turned off.

CAUTION / NOTICE / HINT

NOTICE:
·

Vehicle Control History may be stored in the hybrid vehicle control ECU if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM (for LITHIUM-ION BATTERY)>VEHICLE CONTROL HISTORY (RoB)

(Select Powertrain in Health Check and then check the time stamp data.)

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM (for LITHIUM-ION BATTERY)>VEHICLE CONTROL HISTORY (RoB)

·

Inspect the fuses for circuits related to this system before performing the following procedure.



HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P065714)
a.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTC P065714 is output A
DTC is not output B




A

B
