8ZR-FXE ENGINE CONTROL SFI SYSTEM P03402A Camshaft Position Sensor "A" Bank 1 or Single Sensor Signal Stuck in Range
DESCRIPTION
Refer to DTC P034011.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
|---|---|---|---|---|---|---|
| P03402A | Camshaft Position Sensor "A" Bank 1 or Single Sensor Signal Stuck in Range | Diagnosis condition:
·
Engine cranking Abnormal condition: ·
No camshaft position sensor signal. Malfunction time: ·
2 times Trip logic: ·
1 trip detection logic Detection conditions: ·
Continuous Sensors/components used for detection (Main): ·
Camshaft position sensor Sensors/components used for detection (Related): ·
Crankshaft position sensor |
·
Open or short in camshaft position sensor circuit ·
Camshaft position sensor ·
ECM |
Comes on | DTC stored | SAE Code: P0340 |
Reference: Inspection using an oscilloscope.
MONITOR DESCRIPTION
When the engine is cranking and no camshaft position sensor signal is received for 2 times, the ECM determines that the camshaft position sensor circuit is malfunctioning and illuminates the MIL and stores a DTC.
MONITOR STRATEGY
| Required Sensors/Components (Main) | Camshaft position sensor |
| Required Sensors/Components (Related) | Crankshaft position sensor |
| Frequency of Operation | Continuous |
CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the power switch on (IG).
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the power switch off and wait for at least 30 seconds.
Turn the power switch on (IG).
Turn the GTS on.
Put the engine in Inspection Mode (Maintenance Mode).
Start the engine [A].
Idle the engine for 10 seconds or more [B].
Enter the following menus: Powertrain / Engine / Trouble Codes [C].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Proceed to the next screen and enter the DTC to be checked.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result is NORMAL, the system is normal.
·If the judgment result is ABNORMAL, the system is malfunctioning.
·If the judgment result is INCOMPLETE, perform steps [B] through [C] again.
·[A] to [C]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
WIRING DIAGRAM
Refer to DTC P034011.
CAUTION / NOTICE / HINT
- NOTICE:
- ·
Vehicle Control History may be stored in the hybrid vehicle control ECU if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.
(Select Powertrain in Health Check and then check the time stamp data.)
·If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.
- HINT:
- ·
If no problem is found through this diagnostic troubleshooting procedure, there may be a mechanical problem with the engine.
·Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE

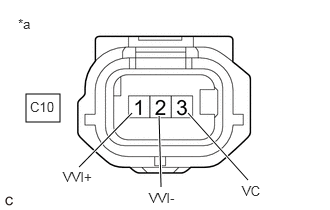

| *a | Front view of wire harness connector
(to Camshaft Position Sensor) |
- HINT:
-
Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.
Disconnect the camshaft position sensor connector.
Turn the power switch on (IG).
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition C10-3 (VC) - Body ground Power switch on (IG) 4.5 to 5.5 V C10-1 (VVI+) - Body ground Power switch on (IG) 3.0 to 5.0 V
Turn the power switch off.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition C10-2 (VVI-) - Body ground Power switch off Below 1 Ω
- Result:
Proceed to OK NG
OK
NG
Remove the camshaft position sensor.
Confirm that there is no oil on the connecting parts of the camshaft position sensor connector.
- OK:
There is no oil on the connecting parts of the camshaft position sensor connector.
- Result:
Proceed to OK NG
OK
NG

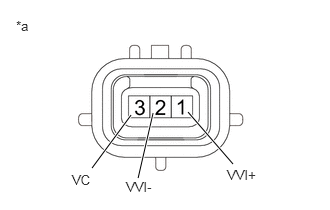

| *a | Component without harness connected
(Camshaft Position Sensor) |
Disconnect the camshaft position sensor connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 3 (VC) - 1 (VVI+) Always 10 kΩ or higher 3 (VC) - 2 (VVI-) Always 10 kΩ or higher 1 (VVI+) - 2 (VVI-) Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
Disconnect the camshaft position sensor connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition C10-3 (VC) - C155-114 (VCV1) Always Below 1 Ω C10-1 (VVI+) - C155-110 (VV1+) Always Below 1 Ω C10-2 (VVI-) - C155-113 (VV1-) Always Below 1 Ω C10-3 (VC) or C155-114 (VCV1) - Body ground and other terminals Always 10 kΩ or higher C10-1 (VVI+) or C155-110 (VV1+) - Body ground and other terminals Always 10 kΩ or higher C10-2 (VVI-) or C155-113 (VV1-) - Body ground and other terminals Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
