THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Entry Function (except NR Series))  TERMINALS OF ECU


NOTICE:
w/ Multi-display:
·

When performing an inspection, make sure that "ACC Customize" is set to "ON" using the multi-display.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (except NR Series))>CUSTOMIZE PARAMETERS

·

When "ACC Customize" is set to "ON" (ACC supply power enabled), the certification ECU (smart key ECU assembly) controls the ACC relay on and off. When "ACC Customize" is set to "OFF" (ACC supply power disabled), the certification ECU (smart key ECU assembly) and radio and display receiver assembly control the ACC relay on and off.

Therefore, inspection conditions and results may differ depending on whether "ACC customize" is set to ON or OFF when inspecting ACC related terminals.



CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

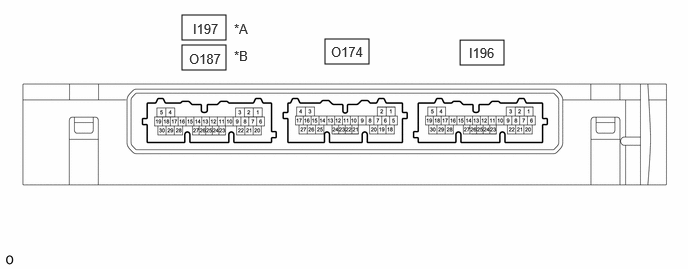

B662146C03
1.896,0.156 2.354,0.417 0.458,0.26 1.896,0.469 2.354,0.729 0.458,0.26 3.385,0.406 3.844,0.667 0.458,0.26 4.792,0.417 5.25,0.677 0.458,0.26 2.01,0.219 2.625,0.417 0.615,0.198 10 false I197 1.969,0.531 2.583,0.729 0.615,0.198 10 false O187 3.448,0.458 4.063,0.656 0.615,0.198 10 false O174 4.885,0.469 5.5,0.667 0.615,0.198 10 false I196 2.438,0.219 3.052,0.417 0.615,0.198 10 false *A 2.438,0.5 3.052,0.698 0.615,0.198 10 false *B
*A for M20#-FKS *B for M15#-FKS


a.

Disconnect the I197*1 or O187*2 and I196 certification ECU (smart key ECU assembly) connectors.

*1: for M20#-FKS

*2: for M15#-FKS



b.

Measure the voltage and resistance according to the value(s) in the table below.

for M20#-FKS:
Tester Connection Terminal Description Condition Specified Condition Related Data List Item
I196-29 (E) - Body ground Ground Always Below 1 Ω -
I196-6 (+B) - I196-29 (E) Power supply Ignition switch off*1
Always*2 		11 to 14 V -
I197-22 (CUTB) - I196-29 (E) Dark current cut pin*3 Ignition switch off*1
Always*2 		11 to 14 V -

*1: for HV Model

*2: for Gasoline Model

*3: In order to prevent the vehicle auxiliary battery from being depleted when the vehicle is shipped long distances, a fuse that cuts unnecessary electrical load while the vehicle is being shipped is installed in the circuit. If the fuse is removed, the circuit becomes open. If the fuse that is between the vehicle auxiliary battery and terminal CUTB is removed and the circuit is open, the certification ECU (smart key ECU assembly) changes to a certain control mode (example: the transmission of radio waves every 0.25 seconds, which form the detection area, stops).



c.

Measure the voltage and resistance according to the value(s) in the table below.

for M15#-FKS:
Tester Connection Terminal Description Condition Specified Condition Related Data List Item
I196-29 (E) - Body ground Ground Always Below 1 Ω -
I196-6 (+B) - I196-29 (E) Power supply Ignition switch off*1
Always*2 		11 to 14 V -
O187-22 (CUTB) - I196-29 (E) Dark current cut pin*3 Ignition switch off*1
Always*2 		11 to 14 V -

*1: for HV Model

*2: for Gasoline Model

*3: In order to prevent the vehicle auxiliary battery from being depleted when the vehicle is shipped long distances, a fuse that cuts unnecessary electrical load while the vehicle is being shipped is installed in the circuit. If the fuse is removed, the circuit becomes open. If the fuse that is between the vehicle auxiliary battery and terminal CUTB is removed and the circuit is open, the certification ECU (smart key ECU assembly) changes to a certain control mode (example: the transmission of radio waves every 0.25 seconds, which form the detection area, stops).



d.

Reconnect the I197*1 or O187*2 and I196 certification ECU (smart key ECU assembly) connectors.

*1: for M20#-FKS

*2: for M15#-FKS



e.

Measure the voltage and check for pulses according to the value(s) in the table below.

for M20#-FKS:
Tester Connection Terminal Description Condition Specified Condition Related Data List Item
I197-24 (IGPD) - I196-29 (E) IG power supply Ignition switch off → ON Below 1 V → 9 V or higher
Power source control

IGP Relay Circuit (Outside) Monitor


I197-11 (IGRD) - I196-29 (E) IG power supply Ignition switch off → ON Below 1 V → 9 V or higher
Power source control

IGR Relay Circuit (Outside) Monitor


I196-21 (ACCD) - I196-29 (E) ACC power supply Ignition switch off → ACC Below 1 V → 8.5 V or higher
Power source control

ACC Relay Monitor


I196-16 (CLG1) - I196-29 (E) Output to driver door electrical key antenna
(request signal (challenge) is sent to door electrical key antenna from certification ECU (smart key ECU assembly) to form detection area) 		Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)


Pulse generation

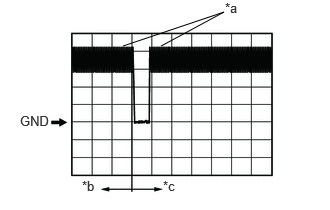

(See waveform 1) 		-
Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


Pulse generation
(See waveform 2) 		-
I196-16 (CLG1) - I196-29 (E) Input to driver door lock sensor
(front door outside handle assembly (for driver door) lock sensor on signal is sent to the certification ECU (smart key ECU assembly)) 		Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)

5.

Driver door lock sensor touched


Pulse generation

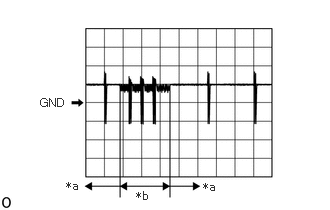

(See waveform 3)
Entry&Start

Driver Side Lock Sensor


I196-16 (CLG1) - I196-29 (E) Input to driver door unlock sensor
(when system is in unlock standby mode and unlock sensor is touched, door electrical key antenna sends unlock sensor input signal (sensing) to certification ECU (smart key ECU assembly)) 		Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors locked

4.

Electrical key transmitter sub-assembly not near the vehicle

5.

Driver door unlock sensor touched


Pulse generation

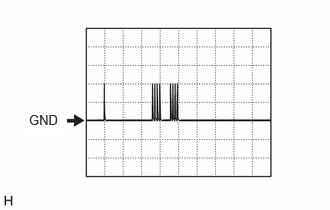

(See waveform 4)
Entry&Start

Driver Side Unlock Sensor


I196-15 (CG1B) - I196-29 (E) Output to driver door electrical key antenna (terminal on opposite side of component from CLG1 output terminal) Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)


Pulse generation

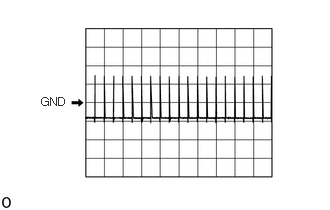

(See waveform 5) 		-
Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


Pulse generation

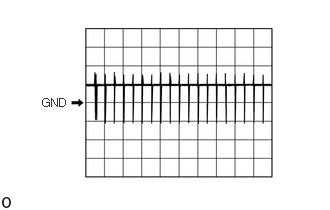

(See waveform 6) 		-
I196-10 (CLG2) - I196-29 (E) Output to front passenger door electrical key antenna
(request signal (challenge) is sent to door electrical key antenna from certification ECU (smart key ECU assembly) to form detection area) 		Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)


Pulse generation
(See waveform 1) 		-
Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


Pulse generation
(See waveform 2) 		-
I196-10 (CLG2) - I196-29 (E) Input to front passenger door lock sensor
(front door outside handle assembly (for front passenger door) lock sensor on signal is sent to the certification ECU (smart key ECU assembly)) 		Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)

5.

Front passenger door lock sensor touched


Pulse generation
(See waveform 3)
Entry&Start

Passenger Side Lock Sensor


I196-10 (CLG2) - I196-29 (E) Input to front passenger door unlock sensor
(when system is in unlock standby mode and unlock sensor is touched, door electrical key antenna sends unlock sensor input signal (sensing) to certification ECU (smart key ECU assembly)) 		Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors locked

4.

Electrical key transmitter sub-assembly not near the vehicle

5.

Front passenger door unlock sensor touched


Pulse generation
(See waveform 4)
Entry&Start

Passenger Side Unlock Sensor


I196-9 (CG2B) - I196-29 (E) Output to front passenger door electrical key antenna (terminal on opposite side of component from CLG2 output terminal) Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)


Pulse generation
(See waveform 5) 		-
Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


Pulse generation
(See waveform 6) 		-
O174-10 (CLG7) - I196-29 (E) Output to No. 3 indoor electrical key antenna assembly (inside luggage compartment) Procedure:
1.

Door is closed

2.

Ignition switch off

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

Driver door lock sensor touched


Pulse generation

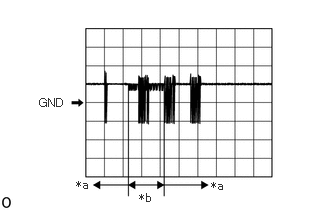

(See waveform 7) 		-
O174-9 (CG7B) - I196-29 (E) Output to No. 3 indoor electrical key antenna assembly (inside luggage compartment) (terminal on opposite side of component from CLG7 output terminal) Procedure:
1.

Door is closed

2.

Ignition switch off

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

Driver door lock sensor touched


Pulse generation
(See waveform 7) 		-
O174-4 (CLG8) - I196-29 (E) Output to electrical key antenna (outside luggage compartment) Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

Luggage electrical key switch off → on


Pulse generation
(See waveform 8) 		-
O174-3 (CG8B) - I196-29 (E) Output to electrical key antenna (outside luggage compartment) (terminal on opposite side of component from CLG8 output terminal) Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

Luggage electrical key switch off → on


Pulse generation
(See waveform 9) 		-
O174-16 (TSW5) - I196-29 (E) Luggage electrical key switch signal input Luggage electrical key switch off → on Pulse generation
(See waveform 10)
Entry&Start

Trunk Lid/Back Door Unlock Switch


O174-21 (RCO) - I196-29 (E) Output to electrical key and tire pressure monitoring system receiver assembly
(Power supply for electrical key and tire pressure monitoring system receiver assembly. Certification ECU (smart key ECU assembly) outputs 5 V when receiver starts operating.) 		Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area

3.

Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed


Pulse generation
(See waveform 11) 		-
O174-11 (RDAM) - I196-29 (E) Electrical key and tire pressure monitoring system receiver assembly verifies data received from electrical key transmitter sub-assembly.
Electrical key and tire pressure monitoring system receiver assembly sends data from electrical key transmitter sub-assembly to certification ECU (smart key ECU assembly) (Electrical key and tire pressure monitoring system receiver assembly intermittently grounds 12 V signal from certification ECU (smart key ECU assembly)). 		Proceed:
1.

Ignition switch off

2.

All doors locked

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area

5.

Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed


Pulse generation
(See waveform 12) 		-
O174-12 (CSEL) - I196-29 (E) Communication channel switching circuit Procedure:
1.

Ignition switch off

2.

All doors closed


Below 1 V → Pulse generation -

*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (except NR Series))>OPERATION CHECK



f.

Measure the voltage and check for pulses according to the value(s) in the table below.

for M15#-FKS:
Tester Connection Terminal Description Condition Specified Condition Related Data List Item
O187-24 (IGPD) - I196-29 (E) IG power supply Ignition switch off → ON Below 1 V → 9 V or higher
Power source control

IGP Relay Circuit (Outside) Monitor


O187-11 (IGRD) - I196-29 (E) IG power supply Ignition switch off → ON Below 1 V → 9 V or higher
Power source control

IGR Relay Circuit (Outside) Monitor


I196-21 (ACCD) - I196-29 (E) ACC power supply Ignition switch off → ACC Below 1 V → 8.5 V or higher
Power source control

ACC Relay Monitor


I196-16 (CLG1) - I196-29 (E) Output to driver door electrical key antenna
(request signal (challenge) is sent to door electrical key antenna from certification ECU (smart key ECU assembly) to form detection area) 		Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)


Pulse generation
(See waveform 1) 		-
Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


Pulse generation
(See waveform 2) 		-
I196-16 (CLG1) - I196-29 (E) Input to driver door lock sensor
(front door outside handle assembly (for driver door) lock sensor on signal is sent to the certification ECU (smart key ECU assembly)) 		Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)

5.

Driver door lock sensor touched


Pulse generation
(See waveform 3)
Entry&Start

Driver Side Lock Sensor


I196-16 (CLG1) - I196-29 (E) Input to driver door unlock sensor
(when system is in unlock standby mode and unlock sensor is touched, door electrical key antenna sends unlock sensor input signal (sensing) to certification ECU (smart key ECU assembly)) 		Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors locked

4.

Electrical key transmitter sub-assembly not near the vehicle

5.

Driver door unlock sensor touched


Pulse generation
(See waveform 4)
Entry&Start

Driver Side Unlock Sensor


I196-15 (CG1B) - I196-29 (E) Output to driver door electrical key antenna (terminal on opposite side of component from CLG1 output terminal) Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)


Pulse generation
(See waveform 5) 		-
Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


Pulse generation
(See waveform 6) 		-
I196-10 (CLG2) - I196-29 (E) Output to front passenger door electrical key antenna
(request signal (challenge) is sent to door electrical key antenna from certification ECU (smart key ECU assembly) to form detection area) 		Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)


Pulse generation
(See waveform 1) 		-
Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


Pulse generation
(See waveform 2) 		-
I196-10 (CLG2) - I196-29 (E) Input to front passenger door lock sensor
(front door outside handle assembly (for front passenger door) lock sensor on signal is sent to the certification ECU (smart key ECU assembly)) 		Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)

5.

Front passenger door lock sensor touched


Pulse generation
(See waveform 3)
Entry&Start

Passenger Side Lock Sensor


I196-10 (CLG2) - I196-29 (E) Input to front passenger door unlock sensor
(when system is in unlock standby mode and unlock sensor is touched, door electrical key antenna sends unlock sensor input signal (sensing) to certification ECU (smart key ECU assembly)) 		Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors locked

4.

Electrical key transmitter sub-assembly not near the vehicle

5.

Front passenger door unlock sensor touched


Pulse generation
(See waveform 4)
Entry&Start

Passenger Side Unlock Sensor


I196-9 (CG2B) - I196-29 (E) Output to front passenger door electrical key antenna (terminal on opposite side of component from CLG2 output terminal) Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)


Pulse generation
(See waveform 5) 		-
Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


Pulse generation
(See waveform 6) 		-
O174-10 (CLG7) - I196-29 (E) Output to No. 3 indoor electrical key antenna assembly (inside luggage compartment) Procedure:
1.

Door is closed

2.

Ignition switch off

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

Driver door lock sensor touched


Pulse generation
(See waveform 7) 		-
O174-9 (CG7B) - I196-29 (E) Output to No. 3 indoor electrical key antenna assembly (inside luggage compartment) (terminal on opposite side of component from CLG7 output terminal) Procedure:
1.

Door is closed

2.

Ignition switch off

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

Driver door lock sensor touched


Pulse generation
(See waveform 7) 		-
O174-4 (CLG8) - I196-29 (E) Output to electrical key antenna (outside luggage compartment) Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

Luggage electrical key switch off → on


Pulse generation
(See waveform 8) 		-
O174-3 (CG8B) - I196-29 (E) Output to electrical key antenna (outside luggage compartment) (terminal on opposite side of component from CLG8 output terminal) Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

Luggage electrical key switch off → on


Pulse generation
(See waveform 9) 		-
O174-16 (TSW5) - I196-29 (E) Luggage electrical key switch signal input Luggage electrical key switch off → on Pulse generation
(See waveform 10)
Entry&Start

Trunk Lid/Back Door Unlock Switch


O174-21 (RCO) - I196-29 (E) Output to electrical key and tire pressure monitoring system receiver assembly
(Power supply for electrical key and tire pressure monitoring system receiver assembly. Certification ECU (smart key ECU assembly) outputs 5 V when receiver starts operating.) 		Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area

3.

Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed


Pulse generation
(See waveform 11) 		-
O174-11 (RDAM) - I196-29 (E) Electrical key and tire pressure monitoring system receiver assembly verifies data received from electrical key transmitter sub-assembly.
Electrical key and tire pressure monitoring system receiver assembly sends data from electrical key transmitter sub-assembly to certification ECU (smart key ECU assembly) (Electrical key and tire pressure monitoring system receiver assembly intermittently grounds 12 V signal from certification ECU (smart key ECU assembly)). 		Proceed:
1.

Ignition switch off

2.

All doors locked

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area

5.

Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed


Pulse generation
(See waveform 12) 		-
O174-12 (CSEL) - I196-29 (E) Communication channel switching circuit Procedure:
1.

Ignition switch off

2.

All doors closed


Below 1 V → Pulse generation -

*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (except NR Series))>OPERATION CHECK



g.
B574594N01
0.427,0.99 0.885,1.188 0.458,0.198 10 false GND

Using an oscilloscope, check waveform 1.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


Waveform 1 (Reference)
Item Content
Tester Connection I196-16 (CLG1) - I196-29 (E)
I196-10 (CLG2) - I196-29 (E)
Tool Setting 5 V/DIV., 500 ms./DIV.
Condition Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)



*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (except NR Series))>OPERATION CHECK



h.
B574595N01
0.438,1 0.896,1.198 0.458,0.198 10 false GND

Using an oscilloscope, check waveform 2.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


Waveform 2 (Reference)
Item Content
Tester Connection I196-16 (CLG1) - I196-29 (E)
I196-10 (CLG2) - I196-29 (E)
Tool Setting 5 V/DIV., 500 ms./DIV.
Condition Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)



*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (except NR Series))>OPERATION CHECK



i.
B574592C01
0.406,1 0.865,1.198 0.458,0.198 10 false GND 0.792,1.854 1.25,2.052 0.458,0.198 10 false *a 1.448,1.99 1.771,2.146 0.323,0.156 10 false *b 2.198,1.865 2.656,2.063 0.458,0.198 10 false *a
*a Lock sensor not touched
*b Lock sensor touched


Using an oscilloscope, check waveform 3.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


Waveform 3 (Reference)
Item Content
Tester Connection I196-16 (CLG1) - I196-29 (E)
Tool Setting 5 V/DIV., 100 ms./DIV.
Condition Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)

5.

Driver door lock sensor not touched → touched



Item Content
Tester Connection I196-10 (CLG2) - I196-29 (E)
Tool Setting 5 V/DIV., 100 ms./DIV.
Condition Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)

5.

Front passenger door lock sensor not touched → touched



*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (except NR Series))>OPERATION CHECK



j.
B574590C01
0.417,1 0.875,1.198 0.458,0.198 10 false GND 0.688,1.865 1.146,2.063 0.458,0.198 10 false *a 2.115,1.875 2.573,2.073 0.458,0.198 10 false *a 1.417,1.969 1.854,2.167 0.438,0.198 10 false *b
*a Unlock sensor not touched
*b Unlock sensor touched


Using an oscilloscope, check waveform 4.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


Waveform 4 (Reference)
Item Content
Tester Connection I196-16 (CLG1) - I196-29 (E)
Tool Setting 5 V/DIV., 100 ms./DIV.
Condition Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors locked

4.

Electrical key transmitter sub-assembly not near the vehicle

5.

Driver door unlock sensor not touched → touched



Item Content
Tester Connection I196-10 (CLG2) - I196-29 (E)
Tool Setting 5 V/DIV., 100 ms./DIV.
Condition Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors locked

4.

Electrical key transmitter sub-assembly not near the vehicle

5.

Front passenger door unlock sensor not touched → touched




k.
B574598N01
0.438,1 0.896,1.198 0.458,0.198 10 false GND

Using an oscilloscope, check waveform 5.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


Waveform 5 (Reference)
Item Content
Tester Connection I196-15 (CG1B) - I196-29 (E)
I196-9 (CG2B) - I196-29 (E)
Tool Setting 5 V/DIV., 500 ms./DIV.
Condition Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)



*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (except NR Series))>OPERATION CHECK



l.
B574599N01
0.427,0.99 0.885,1.188 0.458,0.198 10 false GND

Using an oscilloscope, check waveform 6.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


Waveform 6 (Reference)
Item Content
Tester Connection I196-15 (CG1B) - I196-29 (E)
I196-9 (CG2B) - I196-29 (E)
Tool Setting 5 V/DIV., 500 ms./DIV.
Condition Procedure:
1.

Ignition switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)



*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (except NR Series))>OPERATION CHECK



m.
B660448N02
0.313,0.99 0.688,1.188 0.375,0.198 10 true GND

Using an oscilloscope, check waveform 7.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


Waveform 7 (Reference)
Item Content
Tester Connection O174-10 (CLG7) - I196-29 (E)
O174-9 (CG7B) - I196-29 (E)
Tool Setting 2 V/DIV., 500 ms/DIV.
Condition Procedure:
1.

Door is closed

2.

Ignition switch off

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

Driver door lock sensor touched




n.
B574608N01
0.427,1 0.885,1.198 0.458,0.198 10 false GND

Using an oscilloscope, check waveform 8.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


Waveform 8 (Reference)
Item Content
Tester Connection O174-4 (CLG8) - I196-29 (E)
Tool Setting 5 V/DIV., 50 ms./DIV.
Condition Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

Luggage electrical key switch off → on




o.
B574609N01
0.438,1 0.896,1.198 0.458,0.198 10 false GND

Using an oscilloscope, check waveform 9.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


Waveform 9 (Reference)
Item Content
Tester Connection O174-3 (CG8B) - I196-29 (E)
Tool Setting 5 V/DIV., 50 ms./DIV.
Condition Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

Luggage electrical key switch off → on




p.
B547115C14
1.281,0.479 2.333,0.125 2.333,0.125 1.677,0.479 false 0.208,1.177 0.542,1.375 0.333,0.198 10 false GND 2.344,0 2.573,0.188 0.229,0.188 10 false *a 0.854,1.854 1.469,2.083 0.615,0.229 10 false *b 1.698,1.854 2.708,2.052 1.01,0.198 10 false *c
*a Checking for switch on signal at short intervals
*b Before luggage electrical key switch pressed
*c After luggage electrical key switch pressed


Using an oscilloscope, check waveform 10.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


Waveform 10 (Reference)
Item Content
Tester Connection O174-16 (TSW5) - I196-29 (E)
Tool Setting 2 V/DIV., 500 ms./DIV.
Condition Luggage electrical key switch off → on


q.
B251178C12
0.198,1 0.531,1.198 0.333,0.198 10 GND 1.01,1.885 1.198,2.042 0.188,0.156 10 *a 2.021,1.885 2.208,2.042 0.188,0.156 10 *b
*a Before lock or unlock switch of electrical key transmitter sub-assembly pressed
*b After lock or unlock switch of electrical key transmitter sub-assembly pressed


Using an oscilloscope, check waveform 11.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


Waveform 11 (Reference)
Item Content
Tester Connection O174-21 (RCO) - I196-29 (E)
Tool Setting 2 V/DIV., 500 ms./DIV.
Condition Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area

3.

Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed




r.
B251177C12
0.208,1 0.542,1.198 0.333,0.198 10 GND 1.021,1.896 1.208,2.052 0.188,0.156 10 *a 2.188,1.906 2.375,2.063 0.188,0.156 10 *b
*a Before lock or unlock switch of electrical key transmitter sub-assembly pressed
*b After lock or unlock switch of electrical key transmitter sub-assembly pressed


Using an oscilloscope, check waveform 12.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


Waveform 12 (Reference)
Item Content
Tester Connection O174-11 (RDAM) - I196-29 (E)
Tool Setting 5 V/DIV., 500 ms./DIV.
Condition Procedure:
1.

Ignition switch off

2.

All doors locked

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area

5.

Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed





CHECK POWER DISTRIBUTION BOX ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)


B656499N02
2.385,3.219 2.823,3.469 0.438,0.25 4.708,3.208 5.146,3.458 0.438,0.25 1.76,4.573 2.198,4.823 0.438,0.25 5.385,4.573 5.823,4.823 0.438,0.25 1.208,6.156 1.646,6.406 0.438,0.25 3.083,6.125 3.521,6.375 0.438,0.25 6.281,6.135 6.719,6.385 0.438,0.25 3.531,7.865 3.969,8.115 0.438,0.25 5.281,6.135 5.719,6.385 0.438,0.25 4.271,6.135 4.708,6.385 0.438,0.25 1.667,1.365 1.969,1.365 false 4.042,0.802 4.042,0.323 4.042,0.323 4.229,0.323 false 1.656,1.698 1.958,1.698 false 0.615,1.167 0.927,1.167 false 0.625,1.604 0.938,1.604 false 0.625,1.865 0.938,1.865 false 0.625,2.094 0.938,2.094 false 0.635,2.344 0.948,2.344 false 5.938,1.229 6.25,1.229 false 5.938,1.844 6.25,1.844 false 3.667,7.917 3.979,8.115 0.313,0.198 10 false MB 4.281,0.229 4.594,0.427 0.313,0.198 10 false MB 2.021,1.281 2.333,1.479 0.313,0.198 10 false I86 2.021,1.615 2.333,1.813 0.313,0.198 10 false I85 0.323,1.083 0.635,1.281 0.313,0.198 10 false 10G 6.302,1.146 6.688,1.344 0.385,0.198 10 false 10F 2.5,3.271 2.813,3.469 0.313,0.198 10 false I85 4.823,3.26 5.135,3.458 0.313,0.198 10 false I86 1.865,4.625 2.177,4.823 0.313,0.198 10 false 10E 1.292,6.208 1.667,6.406 0.375,0.198 10 false 10G 3.177,6.177 3.49,6.375 0.313,0.198 10 false 10A 4.365,6.188 4.729,6.375 0.365,0.188 10 false 10C 5.385,6.188 5.698,6.385 0.313,0.198 10 false 10B 6.385,6.177 6.698,6.375 0.313,0.198 10 false 10D 5.49,4.615 5.927,4.792 0.438,0.177 10 false 10F 6.313,1.76 6.667,1.958 0.354,0.198 10 false 10E 0.313,1.531 0.625,1.729 0.313,0.198 10 false 10A 0.313,1.792 0.625,1.99 0.313,0.198 10 false 10C 0.323,2.021 0.635,2.219 0.313,0.198 10 false 10B 0.323,2.271 0.635,2.469 0.313,0.198 10 false 10D

a.

Remove the main body ECU (multiplex network body ECU) from the power distribution box assembly.

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


b.

Measure the voltage and resistance according to the value(s) in the table below.

Tester Connection Terminal Description Condition Specified Condition
MB-13 (GND1) - Body ground Ground Always Below 1 Ω
MB-26 (BECU) - Body ground Auxiliary battery power supply (for CPU) Ignition switch off*1
Always*2 		11 to 14 V

*1: for HV Model

*2: for Gasoline Model




SMART ENTRY AND START SYSTEM (for Start Function)


for HV Model: Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, HV Model)>TERMINALS OF ECU

for Gasoline Model: Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, Gasoline Model (except NR Series))>TERMINALS OF ECU


POWER DOOR LOCK CONTROL SYSTEM


Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM (except NR Series Engine)>TERMINALS OF ECU


WIRELESS DOOR LOCK CONTROL SYSTEM


Click hereVehicle Interior>DOOR LOCK>WIRELESS DOOR LOCK CONTROL SYSTEM (except NR Series Engine with Smart Entry and Start System)>SYSTEM DIAGRAM
