RM3660EC _58 Vehicle Interior _080747 THEFT DETERRENT / KEYLESS ENTRY _0392032 SMART ENTRY AND START SYSTEM(for Start Function, HV Model) U

THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Start Function, HV Model)  TERMINALS OF ECU


NOTICE:
w/ Multi-display:
·

When performing an inspection, make sure that "ACC Customize" is set to "ON" using the multi-display.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, HV Model)>CUSTOMIZE PARAMETERS

·

When "ACC Customize" is set to "ON" (ACC supply power enabled), the certification ECU (smart key ECU assembly) controls the ACC relay on and off. When "ACC Customize" is set to "OFF" (ACC supply power disabled), the certification ECU (smart key ECU assembly) and radio and display receiver assembly control the ACC relay on and off.

Therefore, inspection conditions and results may differ depending on whether "ACC customize" is set to ON or OFF when inspecting ACC related terminals.

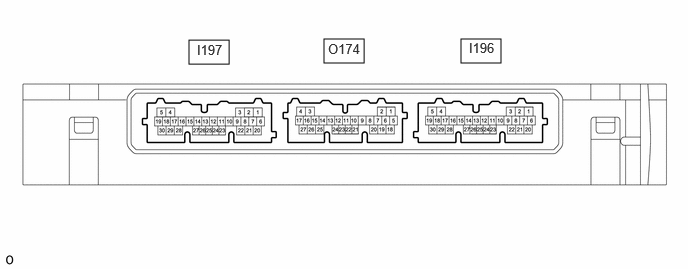

CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)


B662146N36
3.375,0.406 3.792,0.656 0.417,0.25 4.802,0.406 5.219,0.656 0.417,0.25 1.969,0.417 2.385,0.667 0.417,0.25 4.885,0.417 5.208,0.604 0.323,0.188 10 false I196 3.417,0.427 3.802,0.604 0.385,0.177 10 false O174 2.052,0.438 2.365,0.615 0.313,0.177 10 false I197

a.

Disconnect the I197 and I196 certification ECU (smart key ECU assembly) connectors.


b.

Measure the resistance and voltage according to the value(s) in the table below.

HINT:

Measure the values on the wire harness side with the connector disconnected.


Tester Connection Terminal Description Condition Specified Condition Related Data List Item/DTC
I197-21 (STP1) - Body ground Stop light switch signal Brake pedal depressed → Brake pedal released 9 V or higher → 1 V or less
Power Source Control

Stop Light Switch


I196-6 (+B) - I196-29 (E) Power source Ignition switch off 11 to 14 V -
I196-14 (P) - I196-29 (E) P position signal Shift position in P → Shift position not in P 30 kΩ or higher → Below 200 Ω
Power Source Control

Shift P Signal


I197-22 (CUTB) - Body ground Dark current cut pin* Ignition switch off 11 to 14 V -
I196-29 (E) - Body ground GND Always Below 1 Ω -
I196-11 (SLP) - I196-29 (E) GND Always Below 1 Ω -
I196-23 (SSW3) - Body ground SSW3 contact signal Power switch pushed → Power switch not pushed Below 15 Ω → 10 kΩ or higher
Power Source Control

Push Start Switch 3


I196-27 (SSW2) - Body ground SSW2 contact signal Power switch pushed → Power switch not pushed Below 15 Ω → 10 kΩ or higher
Power Source Control

Push Start Switch 2


I196-19 (SSW1) - Body ground SSW1 contact signal Power switch pushed → Power switch not pushed Below 15 Ω → 10 kΩ or higher
Power Source Control

Push Start Switch 1



*: In order to prevent the vehicle auxiliary battery from being depleted when the vehicle is shipped long distances, a fuse that cuts unnecessary electrical load while the vehicle is being shipped is installed in the circuit. If the fuse is removed, the circuit becomes open. If the fuse that is between the vehicle auxiliary battery and terminal CUTB is removed and the circuit is open, the certification ECU (smart key ECU assembly) changes to a certain control mode (example: the transmission of radio waves every 0.25 seconds, which form the detection area, stops).



c.

Connect the I197 and I196 certification ECU (smart key ECU assembly) connectors.


d.

Measure the voltage and resistance, and check for pulses according to the value(s) in the table below.

Tester Connection Terminal Description Condition Specified Condition Related Data List Item/DTC
I196-8 (LIN) - I196-29 (E) LIN communication line Ignition switch ON Pulse generation -
I196-14 (P) - I196-29 (E) P position signal Shift position in P → Shift position not in P 9 V or higher → 2.76 V or less
Power Source Control

Shift P Signal


I196-23 (SSW3) - I196-29 (E) SSW3 contact signal Power switch not pushed → Power switch pushed 9 V or higher → 1 V or less
Power Source Control

Push Start Switch 3


I196-27 (SSW2) - I196-29 (E) SSW2 contact signal Power switch not pushed → Power switch pushed 9 V or higher → 1 V or less
Power Source Control

Push Start Switch 2


I196-19 (SSW1) - I196-29 (E) SSW1 contact signal Power switch not pushed → Power switch pushed 9 V or higher → 1 V or less
Power Source Control

Push Start Switch 1


I196-21 (ACCD) - I196-29 (E) ACC signal Ignition switch off → Ignition switch ACC 1 V or less → 8.5 V or higher
Power Source Control

ACC Relay Monitor


I197-11 (IGRD) - I196-29 (E) IG signal Ignition switch off → Ignition switch ON 1 V or less → 9 V or higher
Power Source Control

IGR Relay Circuit (Outside) Monitor


I197-24 (IGPD) - I196-29 (E) IG signal Ignition switch off → Ignition switch ON 1 V or less → 9 V or higher
Power Source Control

IGP Relay Circuit (Outside) Monitor


I197-13 (SPD) - I196-29 (E) Vehicle speed signal Vehicle being driven at approx. 5 km/h (3 mph) Pulse generation
(See waveform 1)
Power Source Control

Vehicle Running Condition (Line)


I197-2 (ST2) - I196-29 (E) STSW signal With the brake pedal depressed, the power switch is pressed and held → After approx. 3 sec. has elapsed, the power switch is released 8.5 V or higher → 1 V or less -
I196-4 (CLG5) - I196-29 (E) Output to No. 1 indoor electrical key antenna assembly (front floor) Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly not inside vehicle

3.

Within 30 seconds of closing any door


Pulse generation
(See waveform 2) 		-
I196-5 (CG5B) - I196-29 (E) Output to No. 1 indoor electrical key antenna assembly (front floor) (terminal on opposite side of component from CLG5 output terminal) Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly not inside vehicle

3.

Within 30 seconds of closing any door


Pulse generation
(See waveform 2) 		-
I196-30 (AGND) - Body ground Transponder key amplifier ground Always Below 1 Ω -
I196-12 (ANT1) - I196-30 (AGND) Signal input / output from transponder key coil (transponder key coil built into power switch) Ignition switch off, electrical key transmitter sub-assembly not in cabin, within 30 seconds of power switch pressed Pulse generation
(See waveform 3)
Entry&Start

Encrypt Code Difference


I196-13 (ANT2) - I196-30 (AGND) Signal input / output from transponder key coil (transponder key coil built into power switch) Ignition switch off, electrical key transmitter sub-assembly not in cabin, within 30 seconds of power switch pressed Pulse generation
(See waveform 3)
I196-25 (IND) - I196-29 (E) Security indicator output Ignition switch off → ON Pulse generation → Below 2 V -
O174-20 (WCSW) - I196-29 (E)* Wireless charger system stop signal Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly inside vehicle

3.

Ignition switch off → ACC or ON


Below 1 V → 4.5 to 6 V
(For 1 second after ignition switch to ACC or ON) 		-

*: w/ Wireless Charger System



e.

Using an oscilloscope, check the waveform of the ECU.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


i.
B220145N21
2.875,1.177 3.229,1.344 0.354,0.167 10 false GND

Waveform 1

Measurement Condition
Item Content
Tester Connection I197-13 (SPD) - I196-29 (E)
Tool Setting 5 V/DIV., 20 ms./DIV.
Condition Vehicle being driven at approx. 5 km/h (3 mph)

HINT:

The wavelength becomes shorter as the vehicle speed increases.

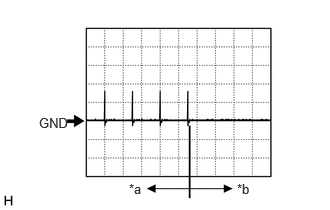

ii.
B585747C09
0.406,1.198 0.865,1.396 0.458,0.198 10 false GND 1.344,1.885 1.802,2.083 0.458,0.198 10 false *a 2.469,1.885 2.927,2.083 0.458,0.198 10 false *b
*a For 30 seconds after any door closed
*b After 30 seconds or more have elapsed since any door closed


Waveform 2

Measurement Condition
Item Content
Tester Connection I196-4 (CLG5) - I196-29 (E)
I196-5 (CG5B) - I196-29 (E)
Tool Setting 5 V/DIV., 500 ms/DIV.
Condition Procedure:
1.

Ignition switch off

2.

Electrical key transmitter sub-assembly not inside vehicle

3.

Within 30 seconds of closing any door

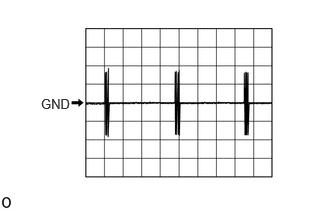

iii.
B574585N01
0.427,1 0.885,1.198 0.458,0.198 10 false GND

Waveform 3

Measurement Condition
Item Content
Tester Connection I196-12 (ANT1) - I196-30 (AGND)
I196-13 (ANT2) - I196-30 (AGND)
Tool Setting 5 V/DIV., 200 ms./DIV.
Condition Ignition switch off, electrical key transmitter sub-assembly not in cabin, within 30 seconds of power switch pressed




CHECK ID CODE BOX (IMMOBILISER CODE ECU)


B510664N40
3.406,0.125 3.781,0.406 0.375,0.281 3.5,0.167 3.74,0.354 0.24,0.188 10 false I20

a.

Disconnect the I20 ID code box (immobiliser code ECU) connector.


b.

Measure the voltage and resistance according to the value(s) in the table below.

HINT:

Measure the values on the wire harness side with the connector disconnected.


Tester Connection Terminal Description Condition Specified Condition Related Data List Item
I20-1 (+B) - Body ground Power source Ignition switch off 11 to 14 V -
I20-5 (GND) - Body ground Ground Always Below 1 Ω


c.

Reconnect the I20 ID code box (immobiliser code ECU) connector.


d.

Measure the voltage and check for pulses according to the value(s) in the table below.

Tester Connection Terminal Description Condition Specified Condition Related Data List Item
I20-3 (EFII) - I20-5 (GND) EFI communication input
(Signal input from hybrid vehicle control ECU to ID code box (immobiliser code ECU)) 		Ignition switch off 11 to 14 V
Entry&Start
·

EFI Code Receive

·

Start Request


I20-3 (EFII) - I20-5 (GND) EFI communication input
(Signal input from hybrid vehicle control ECU to ID code box (immobiliser code ECU)) 		Within 3 seconds of hybrid control system start or within 3 seconds of ignition switch turned to ON after cable disconnected and reconnected to auxiliary battery Pulse generation
(See waveform 1)
I20-4 (EFIO) - I20-5 (GND) EFI communication output
(Signal output from ID code box (immobiliser code ECU) to hybrid vehicle control ECU) 		Ignition switch off Below 1 V
I20-4 (EFIO) - I20-5 (GND) EFI communication output
(Signal output from ID code box (immobiliser code ECU) to hybrid vehicle control ECU) 		Within 3 seconds of hybrid control system start or within 3 seconds of ignition switch turned to ON after cable disconnected and reconnected to auxiliary battery Pulse generation
(See waveform 2)
I20-2 (LIN1) - I20-5 (GND) LIN communication line Ignition switch ON Pulse generation -


e.

Using an oscilloscope, check the waveform.

NOTICE:

The waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


i.

Waveform 1

B325134C03
0.917,1.271 1.375,1.469 0.458,0.198 10 GND 2.719,1.354 3.177,1.552 0.458,0.198 10 *a 2.906,1.354 3.365,1.552 0.458,0.198 10 *b
*a Approximately 160 ms. *b Approximately 270 ms.


Item Content
Tester Connection I20-3 (EFII) - I20-5 (GND)
Tool Setting 2 V/DIV., 500 ms./DIV.
Condition Within 3 seconds of hybrid control system start or within 3 seconds of ignition switch turned to ON after cable disconnected and reconnected to auxiliary battery


ii.

Waveform 2

B333259C02
0.844,1.24 1.302,1.438 0.458,0.198 10 GND 3.115,1.323 3.344,1.531 0.229,0.208 10 *a 3.313,1.323 3.542,1.531 0.229,0.208 10 *b
*a Approximately 160 ms. *b Approximately 270 ms.


Item Content
Tester Connection I20-4 (EFIO) - I20-5 (GND)
Tool Setting 2 V/DIV., 500 ms./DIV.
Condition Within 3 seconds of hybrid control system start or within 3 seconds of ignition switch turned to ON after cable disconnected and reconnected to auxiliary battery

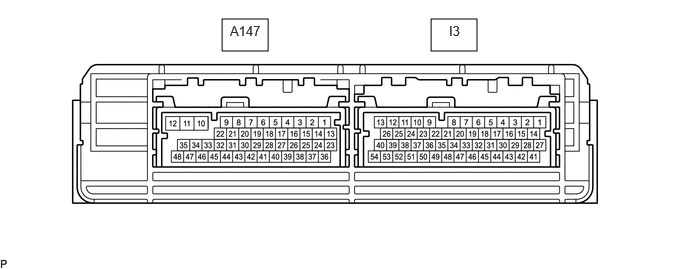

CHECK HYBRID VEHICLE CONTROL ECU


A458547E44
4.49,0.198 4.969,0.531 0.479,0.333 2.313,0.198 2.792,0.531 0.479,0.333 4.677,0.24 4.865,0.427 0.188,0.188 10 false I3 2.396,0.24 2.792,0.427 0.396,0.188 10 false A147

a.

Measure the voltage and resistance, and check for pulses according to the value(s) in the table below.

Terminal No. (Symbol) Terminal Description Condition Specified Condition Related Data List Item/DTC
I3-8 (+B1) - I3-1 (E1) Ignition power supply Ignition switch ON 11 to 14 V -
I3-1 (E1) - Body ground Ground Always Below 1 Ω -
I3-39 (IMO) - I3-1 (E1) EFI communication output
(Signal output from hybrid vehicle control ECU to ID code box (immobiliser code ECU)) 		Ignition switch off 11 to 14 V
·

EFI Code Receive

·

Start Request


I3-39 (IMO) - I3-1 (E1) EFI communication output
(Signal output from hybrid vehicle control ECU to ID code box (immobiliser code ECU)) 		Within 3 seconds of hybrid control system start or within 3 seconds of ignition switch turned to ON after cable disconnected and reconnected to auxiliary battery Pulse generation
(See waveform 1)
I3-53 (IMI) - I3-1 (E1) EFI communication input
(Signal input from ID code box (immobiliser code ECU) to hybrid vehicle control ECU) 		Ignition switch off 11 to 14 V → 1 V or less
I3-53 (IMI) - I3-1 (E1) EFI communication input
(Signal input from ID code box (immobiliser code ECU) to hybrid vehicle control ECU) 		Within 3 seconds of hybrid control system start or within 3 seconds of ignition switch turned to ON after cable disconnected and reconnected to auxiliary battery Pulse generation
(See waveform 2)
I3-11 (ST2) - I3-1 (E1) Hybrid control system start request signal With the brake pedal depressed, the power switch is pressed and held → After approx. 3 sec. has elapsed, the power switch is released 8.5 V or higher → 1.0 V or less -


b.

Using an oscilloscope, check the waveform.

NOTICE:

The waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


i.

Waveform 1 (Reference)

B325134C22
0.896,1.24 1.354,1.438 0.458,0.198 10 false GND 2.719,1.354 3.177,1.552 0.458,0.198 10 false *a 2.906,1.354 3.365,1.552 0.458,0.198 10 false *b
*a Approximately 160 ms. *b Approximately 270 ms.


Measurement Condition
Item Content
Tester Connection I3-39 (IMO) - I3-1 (E1)
Tool Setting 2 V/DIV., 500 ms./DIV.
Condition Within 3 seconds of hybrid control system start or within 3 seconds of ignition switch turned to ON after cable disconnected and reconnected to auxiliary battery


ii.

Waveform 2 (Reference)

B333259C02
0.844,1.24 1.302,1.438 0.458,0.198 10 GND 3.115,1.323 3.344,1.531 0.229,0.208 10 *a 3.313,1.323 3.542,1.531 0.229,0.208 10 *b
*a Approximately 160 ms. *b Approximately 270 ms.


Measurement Condition
Item Content
Tester Connection I3-53 (IMI) - I3-1 (E1)
Tool Setting 2 V/DIV., 500 ms./DIV.
Condition Within 3 seconds of hybrid control system start or within 3 seconds of ignition switch turned to ON after cable disconnected and reconnected to auxiliary battery




CHECK POWER SWITCH


B516200N46
3.385,0.208 3.781,0.458 0.396,0.25 3.458,0.24 3.771,0.417 0.313,0.177 10 false I119

a.

Measure the resistance according to the value(s) in the table below.

Terminal No. (Symbol) Terminal Description Condition Specified Condition Related Data List Item/DTC
I119-3 (GND) - Body ground Transponder key amplifier ground Always Below 1 Ω -


b.

Measure the voltage and check for pulses according to the value(s) in the table below.

Terminal No. (Symbol) Terminal Description Condition Specified Condition Related Data List Item/DTC
I119-1 (ANT1) - I119-3 (GND) Signal input / output from transponder key coil (transponder key coil built into power switch) Ignition switch off, electrical key transmitter sub-assembly not in cabin, within 30 seconds of power switch pressed Pulse generation
(See waveform 1)
Entry&Start

Encrypt Code Difference

HINT:

If immobiliser key code verification communication is not performed correctly, the malfunction may be indicated by one or more of the Data List items listed above



I119-7 (ANT2) - I119-3 (GND) Signal input / output from transponder key coil (transponder key coil built into power switch) Ignition switch off, electrical key transmitter sub-assembly not in cabin, within 30 seconds of power switch pressed Pulse generation
(See waveform 1)
I119-11 (SS3) - I119-3 (GND) SS3 contact signal
HINT:

Backup for SS1. Behaves the same way as SS1.


Power switch not pushed → Power switch pushed 9 V or higher → Below 1 V Power Source Control
·

Push Start Switch 3


I119-6 (SS2) - I119-3 (GND) SS2 contact signal
HINT:

Backup for SS1. Behaves the same way as SS1.


Power switch not pushed → Power switch pushed 9 V or higher → Below 1 V Power Source Control
·

Push Start Switch 2


I119-12 (SS1) - I119-3 (GND) SS1 contact signal Power switch not pushed → Power switch pushed 9 V or higher → Below 1 V Power Source Control
·

Push Start Switch 1




c.

Using an oscilloscope, check the waveform.

NOTICE:

The waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


i.
B574585N01
0.427,1 0.885,1.198 0.458,0.198 10 false GND

Waveform 1 (Reference)

Measurement Condition
Item Content
Tester Connection I119-1 (ANT1) - I119-3 (GND)
I119-7 (ANT2) - I119-3 (GND)
Tool Setting 5 V/DIV., 200 ms./DIV.
Condition Ignition switch off, electrical key transmitter sub-assembly not in cabin, within 30 seconds of power switch pressed




SMART ENTRY AND START SYSTEM (for Entry Function) (w/ Entry Function)


Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (except NR Series))>TERMINALS OF ECU
