RM3660EC _51 Engine / Hybrid System _080790 8ZR-FXE INTAKE / EXHAUST _0392073 EXHAUST MANIFOLD A

8ZR-FXE INTAKE / EXHAUST EXHAUST MANIFOLD REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during exhaust manifold removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of air fuel ratio sensor · Gas leak from exhaust system is repaired	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202304,999999,_51,_080778,_0393982,RM100000002BDLI,)
Replacement of front exhaust pipe assembly	GPF deposition value clear	· MIL comes on · Deterioration of fuel efficiency	(202304,999999,_51,_080778,_0393982,RM100000002BDLI,)
Replacement of exhaust manifold	Total short trip estimate	· MIL comes on · Deterioration of fuel efficiency	(202304,999999,_51,_080778,_0393982,RM100000002BDLI,)

CAUTION:: ·

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

·

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

PROCEDURE

Hide Display 89467B 1.REMOVE AIR FUEL RATIO SENSOR

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>AIR FUEL RATIO SENSOR>REMOVAL202304,999999,_51,_080778,_0392141,RM10000000295UP,

Hide Display 58166A 2.REMOVE FRONT FLOOR COVER LH

0,0 0,0 false

	Bolt
	Clip

Remove the 2 bolts and 3 clips and disengage the 6 clamps to remove the front floor cover LH from the vehicle body.

Hide Display 58165C 3.REMOVE FRONT FLOOR COVER RH

HINT:: Perform the same procedure as for the front floor cover LH.

Hide Display 57533B 4.REMOVE FRONT FLOOR CENTER BRACE

Remove the 12 bolts and 3 front floor center braces from the vehicle body.

Hide Display 17410 5.REMOVE FRONT EXHAUST PIPE ASSEMBLY

CAUTION:: To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

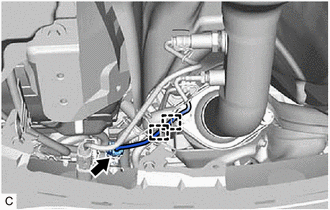

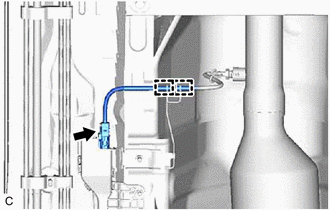

Disengage the wire harness 2 clamps.

Disconnect the heated oxygen sensor connector.

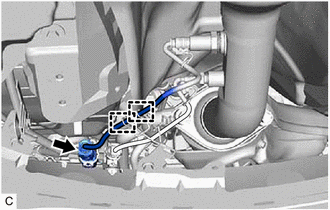

Disengage the 2 wire harness clamps.

Disconnect the No. 1 exhaust gas temperature sensor connector.

Disengage the 2 wire harness clamps.

Disconnect the No. 2 exhaust gas temperature sensor connector.

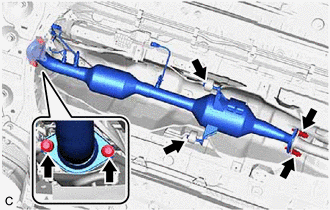

Remove the 4 bolts and 4 compression springs and disconnect the front exhaust pipe assembly from the exhaust manifold and tail exhaust pipe assembly.

Remove the front exhaust pipe assembly from the 2 exhaust pipe supports.

Remove the 2 gaskets from the exhaust manifold and front exhaust pipe assembly.

Hide Display 58151 6.REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

Click hereDrivetrain>PA10/PB10 (HYBRID TRANSMISSION / TRANSAXLE)>TRANSMISSION CONTROL CABLE>REMOVAL202304,202307,_52,_138496,_0583541,RM1000000029CQK_01_0206,202307,999999,_52,_138496,_0583541,RM100000002CID9_01_0206,

Hide Display 51410 7.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,202307,_51,_080726,_0391619,RM100000002B5YK_01_0301,202307,999999,_51,_080726,_0391619,RM100000002CWTY_01_0301,

Hide Display 33820B 8.DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

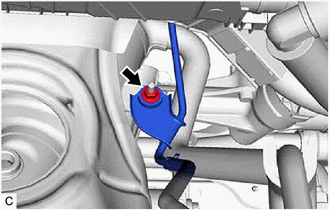

Remove the bolt and disconnect the transmission control cable assembly from the engine assembly.

Hide Display 89481B 9.REMOVE DIFFERENTIAL PRESSURE SENSOR

Click hereEngine / Hybrid System>8ZR-FXE (EMISSION CONTROL)>DIFFERENTIAL PRESSURE SENSOR>REMOVAL202304,999999,_51,_080789,_0597493,RM100000002B0P9,

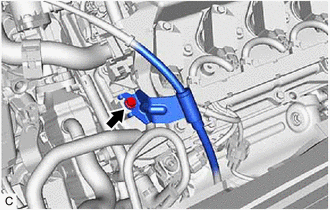

Hide Display 10.REMOVE NO. 1 VACUUM TRANSMITTING PIPE SUB-ASSEMBLY

CAUTION:: To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

Remove the nut and No. 1 vacuuum transmitting pipe bracket.

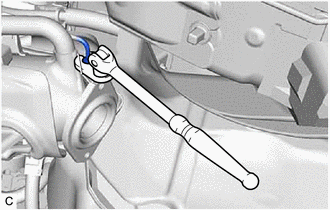

Using a 14 mm union nut wrench, remove the No. 1 vacuuum transmitting pipe sub-assembly.

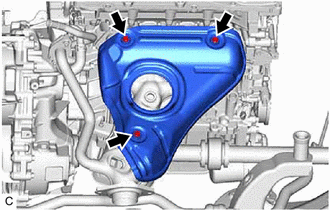

Hide Display 17167 11.REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

CAUTION:: To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

Remove the 3 bolts and No. 1 exhaust manifold heat insulator from the exhaust manifold.

Hide Display 17118 12.REMOVE MANIFOLD STAY

CAUTION:: To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

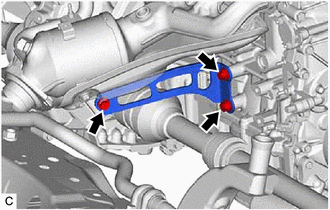

Remove the 3 bolts and manifold stay from the exhaust manifold and cylinder block sub-assembly.

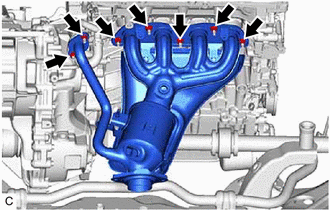

Hide Display 17141 13.REMOVE EXHAUST MANIFOLD (TWC: Front Catalyst)

CAUTION:: To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

Remove the 7 nuts and exhaust manifold from the cylinder head sub-assembly.

2.156,1.552 2.031,1.552 2.031,1.552 1.938,1.125 true 0.677,1.563 0.51,1.563 0.51,1.563 0.458,1.104 true 2.188,1.458 2.417,1.677 0.229,0.219 10 true *1 0.677,1.448 0.854,1.646 0.177,0.198 10 true *2

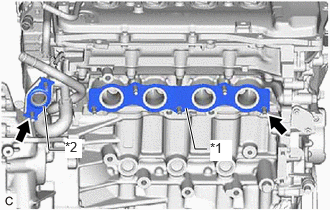

*1	Exhaust Manifold To Head Gasket
*2	EGR Cooler Gasket

Remove the exhaust manifold to head gasket and EGR cooler gasket from the cylinder head sub-assembly.

Hide Display 17168 14.REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

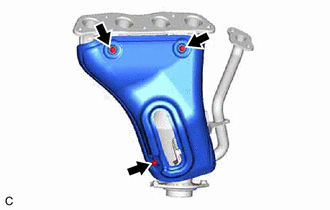

Remove the 3 bolts and No. 2 exhaust manifold heat insulator from the exhaust manifold.
