8ZR-FXE EMISSION CONTROL DIFFERENTIAL PRESSURE SENSOR REMOVAL
PROCEDURE
89481B
1.REMOVE DIFFERENTIAL PRESSURE SENSOR
a.

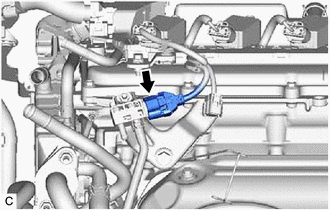

Disconnect the differential pressure sensor connector.
b.

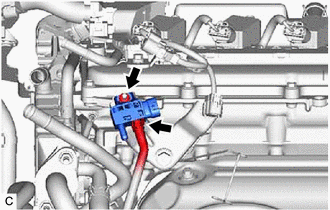

Slide the clip and disconnect the No. 1 vacuum transmitting pipe sub-assembly from the differential pressure sensor.
c.
Remove the nut and differential pressure sensor from the emission control valve bracket.
25715
2.REMOVE EMISSION CONTROL VALVE BRACKET
- HINT:
-
Perform this procedure only when replacement of the emission control valve bracket is necessary.
a.

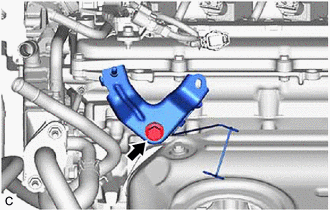

Remove the bolt and emission control valve bracket from the cylinder head.
