LICENSE PLATE LIGHT ASSEMBLY
A
LIGHTING (EXT) LICENSE PLATE LIGHT ASSEMBLY REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure described below is for the LH side.
PROCEDURE
76801
1.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
·
81270
2.REMOVE LICENSE PLATE LIGHT ASSEMBLY
a.
0.115,0.229 0.323,0.427
0.208,0.198
10
true
*A
0.135,2.583 0.354,2.771
0.219,0.188
10
true
*B
| *A | except Double Swing Out Type |
| *B | for Double Swing Out Type |
|
Protective Tape |

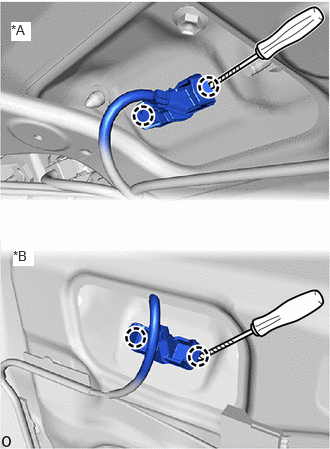

Using a thin-bladed screwdriver, detach the claw.
- HINT:
-
Tape the thin-bladed screwdriver tip before use.
b.
0.104,0.146 0.344,0.344
0.24,0.198
10
true
*A
0.115,2.521 0.344,2.708
0.229,0.188
10
true
*B
| *A | except Double Swing Out Type |
| *B | for Double Swing Out Type |

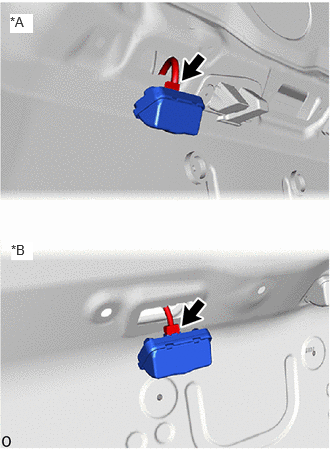

Disconnect the connector and remove the license plate light assembly.
