EXTERIOR PANELS / TRIM  BACK DOOR OUTSIDE GARNISH(except Wagon)  REMOVAL

69298 1.REMOVE BACK DOOR INSIDE HANDLE COVER (except Double Swing Out Type, w/ Handle, w/ Cover)

69291 2.REMOVE BACK DOOR INSIDE HANDLE ASSEMBLY (except Double Swing Out Type, w/ Handle)

69783B 3.REMOVE BACK DOOR INSIDE HANDLE BEZEL (except Double Swing Out Type, w/ Handle, w/o illumination)

69783B 4.REMOVE BACK DOOR INSIDE HANDLE BEZEL (except Double Swing Out Type, w/ Handle and illumination)

67961A 5.REMOVE BACK DOOR PULL STRAP (except Double Swing Out Type)

67751 6.REMOVE BACK DOOR TRIM BOARD (except Double Swing Out Type)

67751 7.REMOVE BACK DOOR TRIM BOARD (for Double Swing Out Type)

67290 8.REMOVE BACK DOOR DAMPER ASSEMBLY (except Double Swing Out Type, w/ Damper)

76801 9.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY (except Double Swing Out Type)

a.

0,0 0,0 false

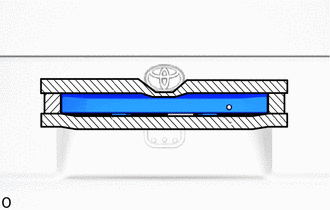

Protective Tape

Apply protective tape around the back door outside garnish sub-assembly.

b.

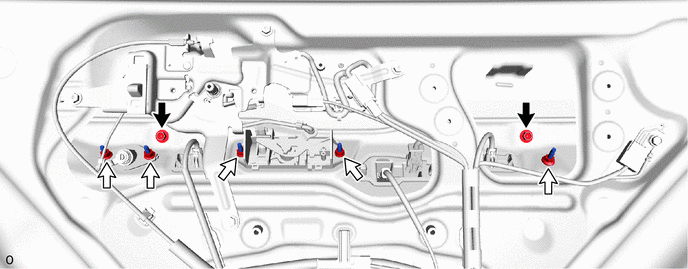

Remove the 2 bolts and 5 nuts.

0,0 0,0 false

Bolt

Nut

c.

0,0 0,0 false

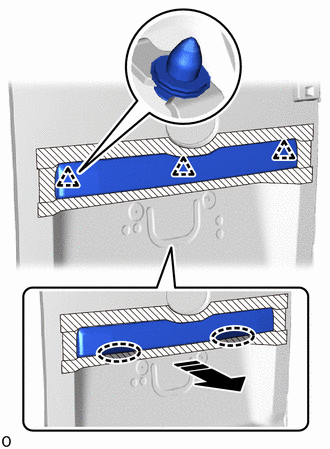

Remove in this Direction

Using moulding remover D, pull toward the rear of the vehicle and detach the clip.

d.

0,0 0,0 false

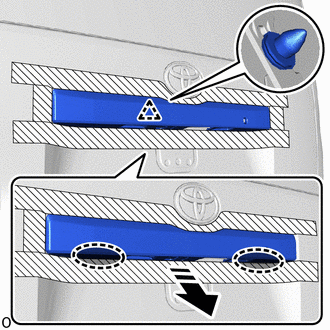

Remove in this Direction

Using moulding remover D, pull toward the rear of the vehicle and detach the clip.

e.

0,0 0,0 false

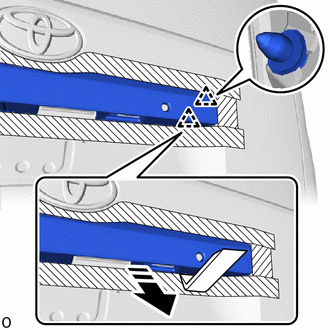

	Place Hand Here
	Remove in this Direction

Placing your hand in the gap, pull the back door outside garnish sub-assembly and detach the clip as shown in the illustration.

76801 10.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY (for Double Swing Out Type)

a.

0,0 0,0 false

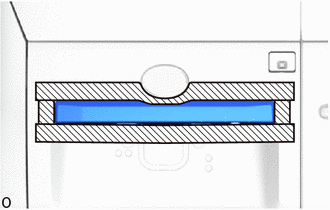

Protective Tape

Apply protective tape around the back door outside garnish sub-assembly.

b.

Remove the 2 nuts.

c.

0,0 0,0 false

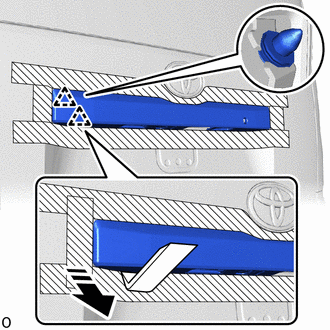

	Place Hand Here
	Remove in this Direction

Placing your hand in the gap, pull the back door outside garnish sub-assembly and detach the clip as shown in the illustration.
