MIRROR (INT)  INNER MIRROR MONITOR CAMERA  INSTALLATION


PROCEDURE

Hide 867C0 1.INSTALL INNER MIRROR CAMERA ASSEMBLY (except Double Swing Out Type)

a.

w/o Rear View Monitor System:

i.

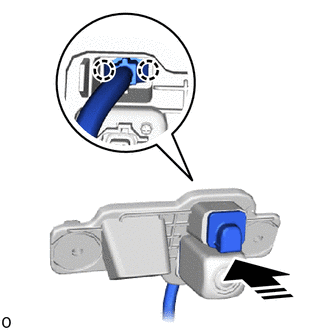

E404932C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the camera cleaner nozzle assembly to the inner mirror camera assembly as shown in the illustration.


ii.

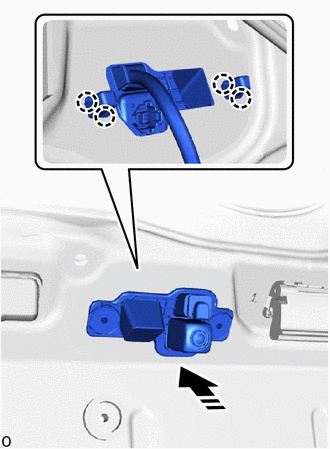

E405011C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the inner mirror camera assembly with camera cleaner nozzle assembly to the back door panel as shown in the illustration.



b.

w/ Rear View Monitor System:

i.

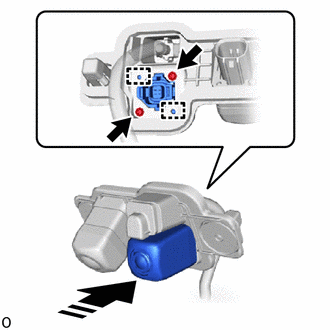

E404931C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide to install the inner mirror camera assembly as shown in the illustration.


ii.

Install the 2 screws.


iii.

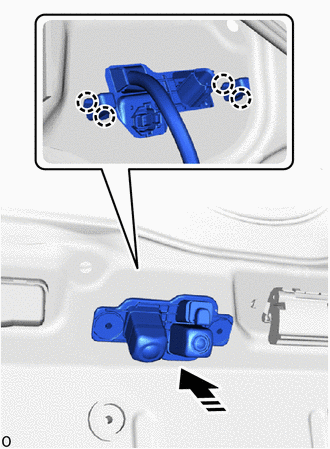

E405010C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the inner mirror camera assembly with camera cleaner nozzle assembly to the back door panel as shown in the illustration.



c.
E404927C01
0.042,0.031 0.313,0.229 0.271,0.198 12 true *A 0.073,2.438 0.323,2.656 0.25,0.219 12 true *B
*A w/o Rear View Monitor System
*B w/ Rear View Monitor System


Install the 2 screws.


d.
E404926C01
0.031,0.031 0.313,0.25 0.281,0.219 12 true *A 0.042,2.396 0.302,2.604 0.26,0.208 12 true *B
*A w/o Rear View Monitor System
*B w/ Rear View Monitor System


Connect each connector.


e.
E404925C01
0.063,0.052 0.354,0.25 0.292,0.198 12 true *A 0.104,2.469 0.375,2.677 0.271,0.208 12 true *B
*A w/o Rear View Monitor System
*B w/ Rear View Monitor System


Connect the washer hose.


Hide 867C0 3.INSTALL INNER MIRROR CAMERA ASSEMBLY (for Double Swing Out Type)

a.
B649840

Connect the connector.


b.

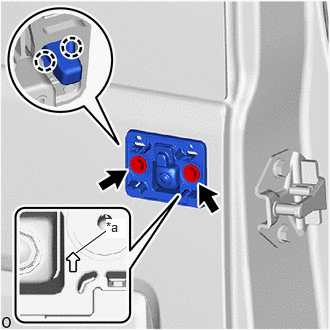

B649839C01
0.792,2.635 1.104,2.406 true 1.104,2.281 1.313,2.479 0.208,0.198 10 true *a
*a Arrow Marker


Attach the claw to install the inner mirror camera assembly together with the camera cleaner nozzle assembly to the back door panel.

HINT:

Install the inner mirror camera assembly together with the camera cleaner nozzle assembly so that the arrow marker is facing the top side of the vehicle.



c.

Install the 2 screws.


d.
B649834

Connect the washer hose.


e.
B649837

Attach the clamp.


f.

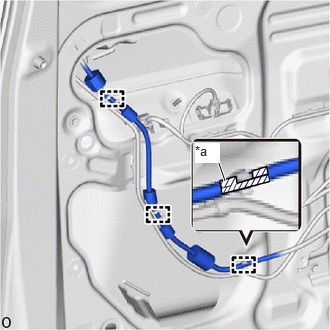

B649995C01
2.25,1.615 2.344,1.885 true 2.031,1.49 2.292,1.698 0.26,0.208 10 true *a
*a Tape


Attach the washer hose to the clamp as shown in the illustration.


Hide 76839A 4.INSTALL BACK DOOR GARNISH COVER (for Double Swing Out Type)

a.

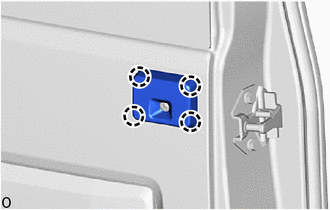

B649836

Attach the claw to install the back door garnish cover.
