EXTERIOR PANELS / TRIM  BACK DOOR OUTSIDE GARNISH(except Wagon)  INSTALLATION

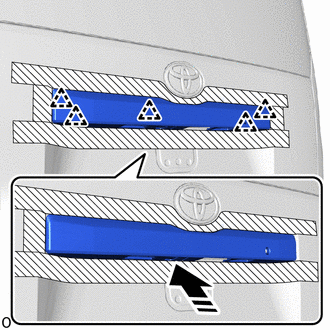

76801 1.INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY (for Double Swing Out Type)

a.

0,0 0,0 false

Install in this Direction

Attach the clip and install the back door outside garnish sub-assembly.

b.

Remove the protective tape.

c.

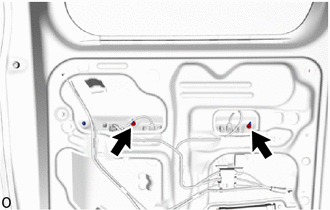

Install the 2 nuts.

Torque:

5.0 N*m (51 kgf*cm, 44 in.*lbf)

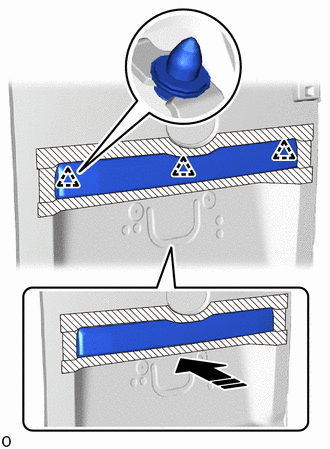

76801 2.INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY (except Double Swing Out Type)

a.

0,0 0,0 false

Install in this Direction

Attach the clip and install the back door outside garnish sub-assembly.

b.

Remove the protective tape.

c.

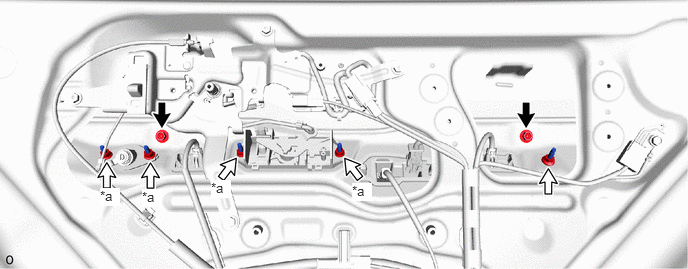

Install the 2 bolts and 5 nuts.

3.667,1.906 3.875,2.094 0.208,0.188 10 true *a 2.198,1.875 2.406,2.063 0.208,0.188 10 true *a 1.042,1.958 1.25,2.146 0.208,0.188 10 true *a 1.479,1.969 1.688,2.156 0.208,0.188 10 true *a

*a	Nut A	-	-
	Bolt		Nut

Torque:

Nut A : 5.0 N*m (51 kgf*cm, 44 in.*lbf)

67290 3.INSTALL BACK DOOR DAMPER ASSEMBLY (except Double Swing Out Type, w/ Damper)

67751 4.INSTALL BACK DOOR TRIM BOARD (for Double Swing Out Type)

67751 5.INSTALL BACK DOOR TRIM BOARD (except Double Swing Out Type)

67961A 6.INSTALL BACK DOOR PULL STRAP (except Double Swing Out Type)

69783B 7.INSTALL BACK DOOR INSIDE HANDLE BEZEL (except Double Swing Out Type, w/ Handle and illuminationn)

69783B 8.INSTALL BACK DOOR INSIDE HANDLE BEZEL (except Double Swing Out Type, w/ Handle, w/o illumination)

69291 9.INSTALL BACK DOOR INSIDE HANDLE ASSEMBLY (except Double Swing Out Type, w/ Handle)

69298 10.INSTALL BACK DOOR INSIDE HANDLE COVER (except Double Swing Out Type, w/ Handle, w/ Cover)
