RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0397102 BACK DOOR OUTSIDE GARNISH(for Wagon) A

EXTERIOR PANELS / TRIM BACK DOOR OUTSIDE GARNISH(for Wagon) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: A bolt without a torque specification is shown in the standard bolt chart.; Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS201902,999999,_V1,_080617,_0393342,RM100000001HX78,

PROCEDURE

Hide Display 76802E 1.INSTALL BACK DOOR LOWER OUTSIDE GARNISH SUB-ASSEMBLY

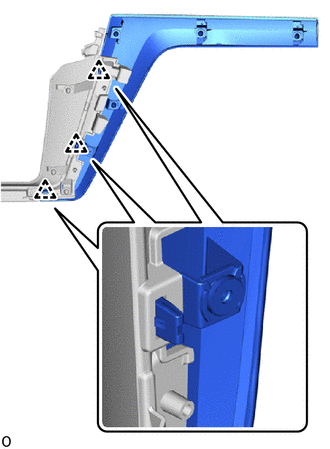

Attach the clip and install the back door upper outside garnish sub-assembly LH to the back door lower outside garnish sub-assembly.

HINT:: Use the same procedure for the back door upper outside garnish sub-assembly RH.

0,0 0,0 false

Install in this Direction

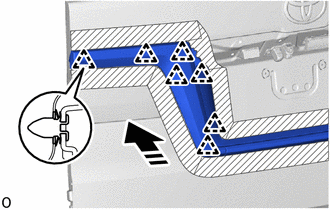

Attach the clip and install the back door lower outside garnish sub-assembly together with the back door upper outside garnish sub-assembly LH and back door upper outside garnish sub-assembly RH.

0,0 0,0 false

Install in this Direction

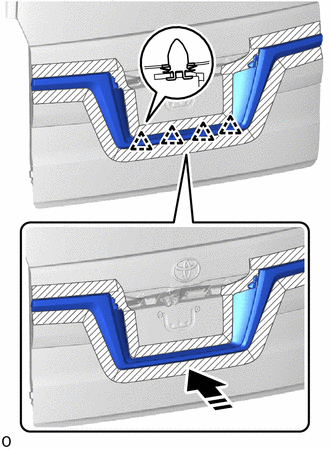

Attach the clip as shown in the illustration.

HINT:: Use the same procedure for the RH and LH sides.

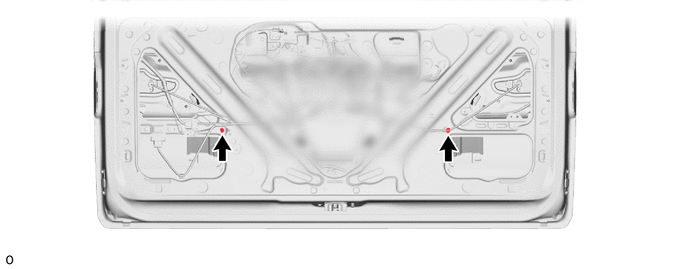

Install the 2 bolts.

Remove the protective tape.

Hide Display 76804 2.INSTALL BACK DOOR UPPER OUTSIDE GARNISH SUB-ASSEMBLY LH

Hide Display 76803A 3.INSTALL BACK DOOR UPPER OUTSIDE GARNISH SUB-ASSEMBLY RH

Hide Display 76801 4.INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

0,0 0,0 false

Install in this Direction

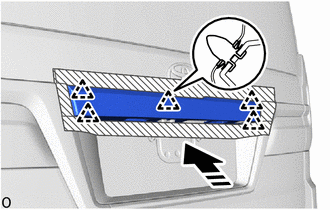

Attach the clip and install the back door outside garnish sub-assembly.

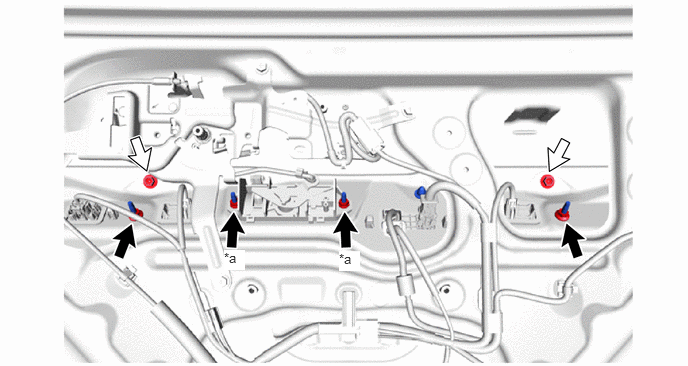

Install the 2 bolts and 4 nuts.

3.531,2.615 3.75,2.823 0.219,0.208 10 true *a 2.333,2.604 2.552,2.813 0.219,0.208 10 true *a

*a	Nut A	-	-
	Nut		Bolt

Torque:: Nut A : 5.0 N*m (51 kgf*cm, 44 in.*lbf)

Remove the protective tape.

Hide Display 67290 5.INSTALL BACK DOOR DAMPER ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (for Wagon)>REASSEMBLY201906,999999,_59,_078503,_0397544,RM100000001IPZV_02_0022,

Hide Display 67751 6.INSTALL BACK DOOR TRIM BOARD

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (for Wagon)>REASSEMBLY201906,999999,_59,_078503,_0397544,RM100000001IPZV_02_0027,

Hide Display 67961A 7.INSTALL BACK DOOR PULL STRAP

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (for Wagon)>REASSEMBLY201906,999999,_59,_078503,_0397544,RM100000001IPZV_02_0028,

Hide Display 69783B 8.INSTALL BACK DOOR INSIDE HANDLE BEZEL (w/ Handle)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (for Wagon)>REASSEMBLY201906,999999,_59,_078503,_0397544,RM100000001IPZV_02_0001,

Hide Display 69291 9.INSTALL BACK DOOR INSIDE HANDLE ASSEMBLY (w/ Handle)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (for Wagon)>REASSEMBLY201906,999999,_59,_078503,_0397544,RM100000001IPZV_02_0002,

Hide Display 67938A 10.INSTALL BACK DOOR SIDE GARNISH LH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (for Wagon)>REASSEMBLY201906,999999,_59,_078503,_0397544,RM100000001IPZV_02_0049,

Hide Display 67937B 11.INSTALL BACK DOOR SIDE GARNISH RH

HINT:: Use the same procedure described for the LH side.
