MIRROR (INT)  INNER MIRROR MONITOR CAMERA  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the inner mirror camera assembly removal/installation are shown below.

Replacement Part or Procedure Necessary Procedures Effect/Inoperative Function when Necessary Procedures are not Performed Link
Television camera assembly (Including removal and installation)
·

Parking assist monitor system initialization

·

Television camera assembly optical axis (Back camera position setting)


Parking assist monitor system (Click here)
Television camera view adjustment (Rear adjustment) Panoramic view monitor system (Click here)

PROCEDURE

Hide 867C0 3.REMOVE INNER MIRROR CAMERA ASSEMBLY (except Double Swing Out Type)

a.

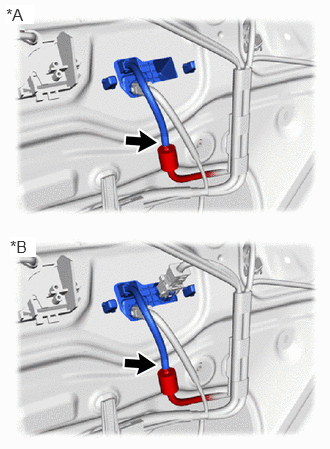

E404925C01
0.063,0.052 0.354,0.25 0.292,0.198 12 true *A 0.104,2.469 0.375,2.677 0.271,0.208 12 true *B
*A w/o Rear View Monitor System
*B w/ Rear View Monitor System


Disconnect the washer hose.


b.

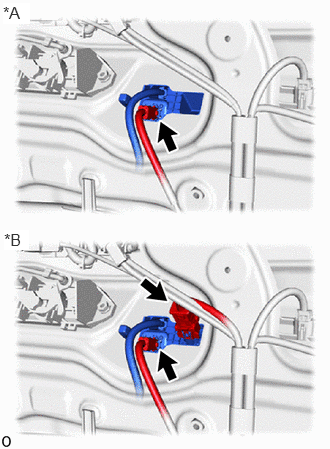

E404926C01
0.031,0.031 0.313,0.25 0.281,0.219 12 true *A 0.042,2.396 0.302,2.604 0.26,0.208 12 true *B
*A w/o Rear View Monitor System
*B w/ Rear View Monitor System


Disconnect each connector.


c.

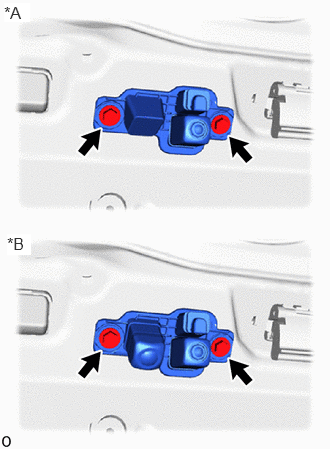

E404927C01
0.042,0.031 0.313,0.229 0.271,0.198 12 true *A 0.073,2.438 0.323,2.656 0.25,0.219 12 true *B
*A w/o Rear View Monitor System
*B w/ Rear View Monitor System


Remove the 2 screws.


d.

w/o Rear View Monitor System:

i.

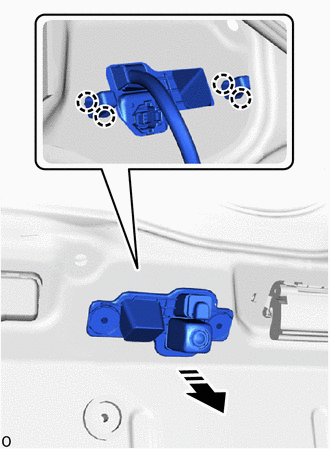

E404928C02
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the inner mirror camera assembly with camera cleaner nozzle assembly from the back door panel as shown in the illustration.


ii.

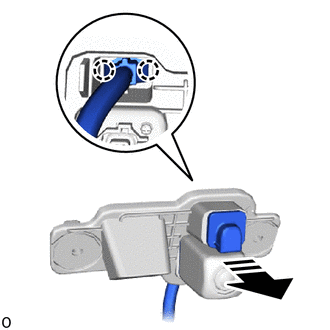

E404933C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the camera cleaner nozzle assembly from the inner camera assembly as shown in the illustration.



e.

w/ Rear View Monitor System:

i.

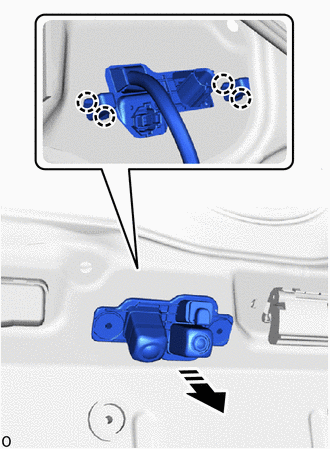

E404929C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the inner mirror camera assembly with camera cleaner nozzle assembly from the back door panel as shown in the illustration.


ii.

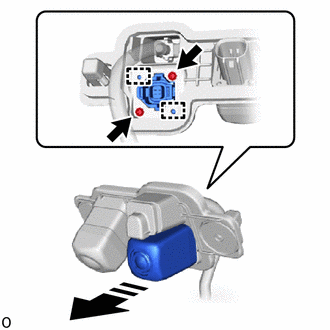

E404930C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


iii.

Detach the guide and remove the inner mirror camera assembly as shown in the illustration.



Hide 76839A 4.REMOVE BACK DOOR GARNISH COVER (for Double Swing Out Type)

a.

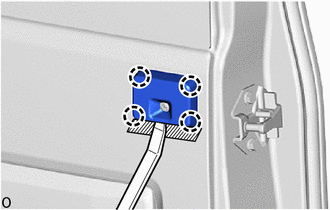

B649835C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape at the position shown in the illustration.


b.

Using moulding remover A, detach the claw to remove the back door garnish cover.


Hide 867C0 5.REMOVE INNER MIRROR CAMERA ASSEMBLY (for Double Swing Out Type)

a.

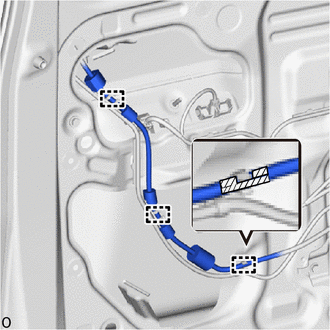

B649995

Detach the clamp.


b.

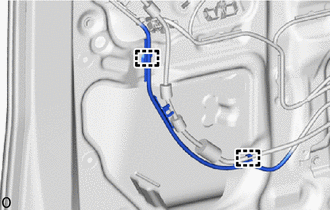

B649837

Detach the clamp.


c.

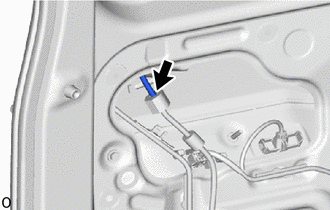

B649834

Disconnect the washer hose.


d.

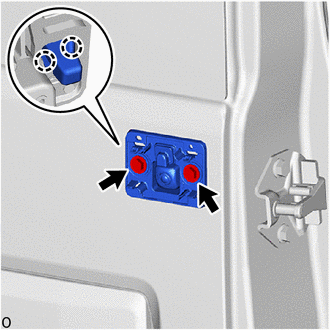

B649838

Remove the 2 screws.


e.

Detach the claw and remove the inner mirror camera assembly together with the camera cleaner nozzle assembly from the back door panel.


f.

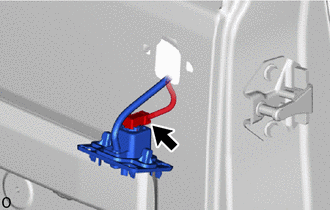

B649840

Disconnect the connector.
