☰ Toyota HiAce☰ فهرستAudio / Visual / Telematics › NAVIGATION / MULTI INFO DISPLAY › NAVIGATION SYSTEM
RM35X0E
_56
Audio / Visual / Telematics
_078379
NAVIGATION / MULTI INFO DISPLAY
_0380999
NAVIGATION SYSTEM
U
NAVIGATION / MULTI INFO DISPLAY NAVIGATION SYSTEM TERMINALS OF ECU
- HINT:
-
Check from the rear of the connector while it is connected to the components.

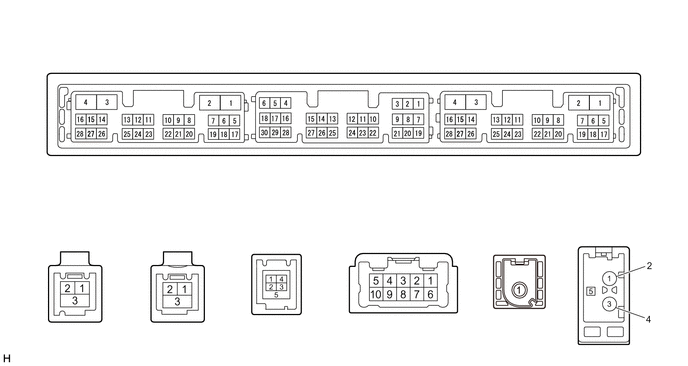

RADIO AND DISPLAY RECEIVER ASSEMBLY
1.448,0.25 1.865,0.5
0.417,0.25
3.375,0.25 3.792,0.5
0.417,0.25
5.323,0.25 5.74,0.5
0.417,0.25
0.573,2.167 0.99,2.417
0.417,0.25
1.625,2.167 2.042,2.417
0.417,0.25
2.667,2.333 3.083,2.583
0.417,0.25
3.979,2.167 4.396,2.417
0.417,0.25
6.073,2.167 6.49,2.417
0.417,0.25
5.208,2.156 5.625,2.406
0.417,0.25
2.667,2.021 3.083,2.271
0.417,0.25
2.667,1.698 3.083,1.948
0.417,0.25
1.583,0.292 2.01,0.51
0.427,0.219
10
false
O5
3.5,0.302 3.927,0.521
0.427,0.219
10
false
O7
5.448,0.292 5.875,0.51
0.427,0.219
10
false
O6
0.667,2.219 1.094,2.438
0.427,0.219
10
false
O15
4.104,2.208 4.531,2.427
0.427,0.219
10
false
O8
6.198,2.219 6.625,2.438
0.427,0.219
10
false
RA
5.281,2.198 5.708,2.417
0.427,0.219
10
false
DAB
1.719,2.208 2.146,2.427
0.427,0.219
10
false
O14
2.719,2.375 3.146,2.594
0.427,0.219
10
false
N197
2.719,2.052 3.146,2.271
0.427,0.219
10
false
N212
2.719,1.74 3.146,1.958
0.427,0.219
10
false
N128
3.146,1.729 3.573,1.948
0.427,0.219
10
false
*A
3.156,2.042 3.583,2.26
0.427,0.219
10
false
*B
3.146,2.365 3.573,2.583
0.427,0.219
10
false
*C
| *A | w/ AUX Function | *B | for LHD without AUX Function |
| *C | for RHD without AUX Function | - | - |
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| O8-1 (FR+) - O5-1 (GND1) | LG - W-B*3
LA-R - W-B*4 |
Sound signal (Right)*3
Sound signal (Front right)*4 |
Audio system playing | A waveform synchronized with sound signals is output |
| O8-2 (FL+) - O5-1 (GND1) | BR - W-B*3
LA-P - W-B*4 |
Sound signal (Left)*3
Sound signal (Front left)*4 |
Audio system playing | A waveform synchronized with sound signals is output |
| O8-3 (RL+) - O5-1 (GND1) | G - W-B*3
R - W-B*4 |
Voice signal*3
Sound signal (Rear left)*4 |
Audio system playing | A waveform synchronized with sound signals is output |
| O8-4 (RR+) - O5-1 (GND1)*4 | G - W-B | Sound signal (Rear right) | Audio system playing | A waveform synchronized with sound signals is output |
| O8-6 (FR-) - O5-1 (GND1) | P - W-B*3
LA-W - W-B*4 |
Sound signal (Right)*3
Sound signal (Front right)*4 |
Audio system playing | A waveform synchronized with sound signals is output |
| O8-7 (FL-) - O5-1 (GND1) | SB - W-B*3
LA-B - W-B*4 |
Sound signal (Left)*3
Sound signal (Front left)*4 |
Audio system playing | A waveform synchronized with sound signals is output |
| O8-8 (RL-) - O5-1 (GND1) | R - W-B*3
W - W-B*4 |
Voice signal*3
Sound signal (Rear left)*4 |
Audio system playing | A waveform synchronized with sound signals is output |
| O8-9 (RR-) - O5-1 (GND1)*4 | P - W-B | Sound signal (Rear right) | Audio system playing | A waveform synchronized with sound signals is output |
| O5-1 (GND1) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
| O5-4 (+B1) - O5-1 (GND1) | L - W-B | Power source (+B) | Always | 10.5 to 16 V*1
11 to 14 V*2 |
| O5-5 (TX1+)*3 | Y | AVC-LAN communication signal | - | - |
| O5-6 (TX1-)*3 | BE | AVC-LAN communication signal | - | - |
| O5-10 (AGND) - Body ground*8 | Shielded - Body ground | Shield ground | Always | Below 1 Ω |
| O5-11 (VAL+) - O5-13 (VA-)*8 | R - W | Sound signal (Left) | External device playing (When stereo jack used) | A waveform synchronized with sound signals is output |
| O5-12 (VAR+) - O5-13 (VA-)*8 | B - W | Sound signal (Right) | External device playing (When stereo jack used) | A waveform synchronized with sound signals is output |
| O5-13 (VA-) - O5-1 (GND1)*8 | W - W-B | Ground | Always | Below 1 Ω |
| O5-14 (ADPG) - O5-1 (GND1)*8 | BE - W-B | External device connection detection signal | External device connected | Below 1 V |
| External device not connected | 2.1 to 3 V | |||
| O5-15 (ACC1) - O5-1 (GND1) | GR - W-B | Power source (ACC) | Ignition switch off | Below 1 V |
| Ignition switch ACC | 10.5 to 16 V*1
11 to 14 V*2 |
|||
| O5-21 (SW1) - O5-24 (SWG) | B - W-B | Steering pad switch signal | No switch pushed | 2.97 to 3.56 V |
| Seek+ switch pushed | 0.27 to 0.35 V | |||
| Seek- switch pushed | 0.86 to 1.03 V | |||
| Volume+ switch pushed | 1.51 to 1.79 V | |||
| Volume- switch pushed | 2.22 to 2.66 V | |||
| O5-22 (SW2) - O5-24 (SWG) | R - W-B | Steering pad switch signal | No switch pushed | 2.97 to 3.56 V |
| MODE switch pushed | 0.27 to 0.35 V | |||
| TEL switch pushed | 1.51 to 1.79 V | |||
| Voice switch pushed | 2.22 to 2.66 V | |||
| O5-24 (SWG) - O5-1 (GND1) | W-B - W-B | Steering pad switch ground | Always | Below 1 Ω |
| O5-25 (MUT1) - O5-1 (GND1)*3 | L - W-B | Mute signal | Audio system playing | 2.0 V or higher |
| Audio system changing modes | Below 1 V | |||
| O5-27 (SPD) - O5-1 (GND1) | V - W-B | Vehicle speed signal | See "Check Vehicle Signal" in Operation Check
Click here(  202006,999999,_56,_078379,_0380999,RM100000001P0XE,)
|
- |
| O5-28 (REV) - O5-1 (GND1) | L - W-B | Reverse signal | See "Check Vehicle Signal" in Operation Check
( 202006,999999,_56,_078379,_0380999,RM100000001P0XE,)
|
- |
| O7-5 (CNH1) | B | Local bus communication signal | - | - |
| O7-6 (CNL1) | W | Local bus communication signal | - | - |
| O7-13 (CANH) | G | CAN communication signal | - | - |
| O7-14 (CANL) | W | CAN communication signal | - | - |
| O7-15 (ILL+) - O5-1 (GND1) | G - W-B | Illumination signal | Light control switch off | Below 1 V |
| Light control switch in tail or head position | 11 to 14 V | |||
| O7-18 (CSW+) - O5-1 (GND1)*5 | Y - W-B | Camera image change signal | Ignition switch ON, shift position not in R →in R | 3.5 V or higher → Below 1 V |
| O7-19 (IG) - O5-1 (GND1) | P - W-B | Power source (IG) | Ignition switch off | Below 1 V |
| Ignition switch ON | 11 to 14 V | |||
| O7-20 (PKB) - O5-1 (GND1) | B - W-B | Parking brake signal | See "Check Vehicle Signal" in Operation Check
Click here( 202006,999999,_56,_078379,_0380999,RM100000001P0XE,)
|
- |
| O7-21 (MIN+) - O5-1 (GND1)*11 | V - W-B | Microphone voice signal | See "Check Microphone" in Operation Check
Click here( 202006,999999,_56,_078379,_0380999,RM100000001P0XE,)
|
- |
| O7-22 (MIN-) - O5-1 (GND1)*11 | SB - W-B | Microphone voice signal | See "Check Microphone" in Operation Check
Click here( 202006,999999,_56,_078379,_0380999,RM100000001P0XE,)
|
- |
| O7-23 (MACC) - O5-1 (GND1)*11 | G - W-B | Telephone microphone assembly power supply | Ignition switch off | Below 1 V |
| Ignition switch ACC | 4 to 6 V | |||
| O7-24 (SGND) - Body ground | Shielded - Body ground | Shield ground | Always | Below 1 Ω |
| O7-25 (SNS2) - O5-1 (GND1) | W - W-B | Microphone connection detection signal | Always | Below 1 V |
| O7-26 (CSLD) - Body ground*6 | Shielded - Body ground | Shield ground | Always | Below 1 Ω |
| O7-27 (CGND) - Body ground*6 | G - Body ground | Camera ground | Always | Below 1 Ω |
| O7-28 (V+) - O7-29 (V-) | V - SB*5
R - B*6 |
Video signal | Ignition switch ON, Shift position in R, camera lens not covered, displaying image | Pulse generation (Refer to waveform 1) |
| Ignition switch ON, Shift position in R, camera lens covered, blacking out screen | Pulse generation (Refer to waveform 2) | |||
| O7-29 (V-) - Body ground | SB - Body ground*5
B - Body ground*6 |
Video signal ground | Always | Below 1 Ω |
| O7-30 (CA+) - Body ground*6 | W - Body ground | Power source | Ignition switch ACC | 5.5 to 7.05 V |
| N128-1 (USV1)*8 | # | Power source | - | - |
| N128-2 (US1-)*8 | # | Data signal | - | - |
| N128-3 (US1+)*8 | # | Data signal | - | - |
| N128-4 (UGD1)*8 | # | Ground | - | - |
| N128-5 (USG1)*8 | Shielded | Shield ground | - | - |
| N212-1 (USV1)*9 | # | Power source | - | - |
| N212-2 (US1-)*9 | # | Data signal | - | - |
| N212-3 (US1+)*9 | # | Data signal | - | - |
| N212-4 (UGD1)*9 | # | Ground | - | - |
| N212-5 (USG1)*9 | Shielded | Shield ground | - | - |
| N197-1 (USV1)*10 | # | Power source | - | - |
| N197-2 (US1-)*10 | # | Data signal | - | - |
| N197-3 (US1+)*10 | # | Data signal | - | - |
| N197-4 (UGD1)*10 | # | Ground | - | - |
| N197-5 (USG1)*10 | Shielded | Shield ground | - | - |
| O15-1 (US4+) | # | USB communication line | - | - |
| O15-2 (US4-) | # | USB communication line | - | - |
| O15-3 (UGD4) - Body ground | Shielded - Body ground | Shield ground | Always | Below 1 Ω |
| O14-1 (GV2-) | # | Video signal (Digital) | - | - |
| O14-2 (GV2+) | # | Video signal (Digital) | - | - |
| O14-3 (GVG2) - Body ground | Shielded - Body ground | Shield ground | Always | Below 1 Ω |
| O6-7 (SUP) - O5-1 (GND1) | W - W-B | Start up signal | 20 seconds elapse after turning the ignition switch to ACC | 11 to 14 V |
| O6-10 (USBV) - O5-1 (GND1)*11 | W - W-B | Telematics transceiver power supply signal | Ignition switch ON | 3 to 6 V |
| Ignition switch off | Below 1 V | |||
| O6-11 (USBG) - Body ground*11 | B - Body ground | Shield ground | Always | Below 1 Ω |
| O6-12 (SGND) - Body ground*11 | Shielded - Body ground | Shield ground | Always | Below 1 Ω |
| O6-13 (VOR+) - O5-1 (GND1)*11 | G - W-B | Receive voice signal | Receiving a call while using the operator service | A waveform synchronized with the received voice is output |
| O6-14 (VOR-) - O5-1 (GND1)*11 | R - W-B | Receive voice signal | Receiving a call while using the operator service | A waveform synchronized with the received voice is output |
| O6-15 (VOT+) - O5-1 (GND1)*11 | B - W-B | Sent voice signal | Calling while using the operator service | A waveform synchronized with the received voice is output |
| O6-16 (VOT-) - O5-1 (GND1)*11 | W - W-B | Sent voice signal | Calling while using the operator service | A waveform synchronized with the received voice is output |
| O6-19 (RST)*7 | R | - | - | - |
| O6-22 (SI+) - O5-1 (GND1) | V - W-B | Voice signal | Voice guidance sounding | A waveform synchronized with sound is output |
| O6-23 (SI-) - O5-1 (GND1) | SB - W-B | Voice signal | Voice guidance sounding | A waveform synchronized with sound is output |
| O6-24 (SGND) - O5-1 (GND1) | Shielded - W-B | Shield ground | Always | Below 1 Ω |
| O6-25 (MCO+) - O6-26 (MCO-) | BR - Y | Microphone voice signal | See "Check Microphone (DCU)" in Operation Check
( 202006,999999,_56,_078379,_0380999,RM100000001P0XE,)
|
- |
| O6-26 (MCO-) - O5-1 (GND1) | Y - W-B | Microphone voice signal | See "Check Microphone (DCU)" in Operation Check
( 202006,999999,_56,_078379,_0380999,RM100000001P0XE,)
|
- |
| O6-28 (REV2) - O5-1 (GND1) | GR - W-B | Reverse signal | Ignition switch ON, shift lever not in R → in R | 2 V or less → 11 to 14 V |
| RA-5 (ANT+) - O5-1 (GND1) | # - W-B | Power source of antenna | Ignition switch ACC, radio switch on and FM or AM selected | 11 to 14 V |
*1: w/ Stop and Start System
*2: w/o Stop and Start System
*3: for 12 Speakers
*4: except 12 Speakers
*5: w/ Panoramic View Monitor System
*6: w/ Parking Assist Monitor System
*7: Terminal exists but is not used
*8: w/ AUX Function
*9: for LHD without AUX Function
*10: for RHD without AUX Function
*11: w/ Telematics System (for Toyota Connected Services)
#: There is no wire color information
a.
0.823,2.073 1,2.073
1,2.073 1.125,1.583
false
1.479,2.063 1.344,2.063
1.344,2.063 1.229,1.479
false
0.781,4.167 0.958,4.167
0.958,4.167 1.156,3.594
false
1.521,4.125 1.385,4.125
1.385,4.125 1.271,3.542
false
0.229,0.229 0.542,0.427
0.313,0.198
10
*a
0.396,1.052 0.76,1.313
0.365,0.26
10
GND
0.396,3.208 0.76,3.469
0.365,0.26
10
GND
0.26,2.271 0.625,2.531
0.365,0.26
10
*b
0.646,4.073 1.01,4.333
0.365,0.26
10
*c
0.656,1.979 1.021,2.24
0.365,0.26
10
*c
1.51,1.969 1.875,2.229
0.365,0.26
10
*d
1.542,4.052 1.906,4.313
0.365,0.26
10
*d
| *a | Waveform 1 (camera lens not covered, displaying image) |
| *b | Waveform 2 (camera lens covered, blacking out screen) |
| *c | Synchronization Signal |
| *d | Video Waveform |
Reference (Oscilloscope waveform):
i.
Waveform 1 (camera lens is not covered, displaying an image)
| Item | Content |
|---|---|
| Measurement terminal | O7-28 (V+) - O7-29 (V-) |
| Measurement setting | 200 mV/DIV., 50 μs./DIV. |
| Condition | Ignition switch ON, shift position in R, camera lens not covered, displaying image |
- HINT:
- ·
The video waveform changes according to the image sent by the television camera assembly.
·The video waveform is constantly output when the ignition switch is ACC.
ii.
Waveform 2 (camera lens is covered, blacking out the screen)
| Item | Content |
|---|---|
| Measurement terminal | O7-28 (V+) - O7-29 (V-) |
| Measurement setting | 200 mV/DIV., 50 μs./DIV. |
| Condition | Ignition switch ON, shift position in R, camera lens covered, blacking out screen |
- HINT:
- ·
The video waveform changes according to the image sent by the television camera assembly.
·The video waveform is constantly output when the ignition switch is ACC.
NAVIGATION ECU
1.99,0.563 2.385,0.813
0.396,0.25
4.563,0.719 4.958,0.969
0.396,0.25
2.271,2.24 2.667,2.49
0.396,0.25
4.74,2.323 5.135,2.573
0.396,0.25
2.063,0.604 2.406,0.823
0.344,0.219
10
false
O9
4.615,0.76 4.938,1.042
0.323,0.281
10
false
GPS
2.292,2.292 2.656,2.51
0.365,0.219
10
false
N206
4.802,2.375 5.167,2.594
0.365,0.219
10
false
O13
2.792,2.292 3.073,2.531
0.281,0.24
10
false
*A
| *A | w/ Telematics System (for Toyota Connected Services) | - | - |
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| O9-6 (VOI+) - O9-23 (GND) | V - W-B | Voice signal | Voice guidance sounding | A waveform synchronized with sound is output |
| O9-7 (VOI-) - O9-23 (GND) | SB - W-B | Voice signal | Voice guidance sounding | A waveform synchronized with sound is output |
| O9-8 (SLD1) - Body ground | Shielded - Body ground | Shield ground | Always | Below 1 Ω |
| O9-9 (SPD) - O9-23 (GND) | LG - W-B | Vehicle speed signal | See "Check GPS and Vehicle Sensors" in Operation Check
( 202006,999999,_56,_078379,_0380999,RM100000001P0XE,)
|
- |
| O9-10 (+B) - O9-23 (GND) | R - W-B | Power source (+B) | Always | 10.5 to 16 V*1
11 to 14 V*2 |
| O9-13 (MIC+) - O9-23 (GND) | BR - W-B | Microphone voice signal | See "Check Microphone Check (MEU)" in Operation Check
( 202006,999999,_56,_078379,_0380999,RM100000001P0XE,)
|
- |
| O9-14 (MIC-) - Body ground | Y - Body ground | Microphone voice signal | See "Check Microphone Check (MEU)" in Operation Check
( 202006,999999,_56,_078379,_0380999,RM100000001P0XE,)
|
- |
| O9-19 (REV2) - O9-23 (GND) | GR - W-B | Reverse signal | Ignition switch ON, shift lever not in R → in R | 2 V or less → 11 to 14 V |
| O9-21 (SUP) - O9-23 (GND) | W - W-B | Power source (ACC) | 20 seconds elapse after turning the ignition switch to ACC | 11 to 14 V |
| O9-22 (RST)*3 | R | - | - | - |
| O9-23 (GND) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
| O13-1 (GVO-) | # | Video signal (Digital) | - | - |
| O13-2 (GVO+) | # | Video signal (Digital) | - | - |
| O13-3 (GVG1) - Body ground | Shielded - Body ground | Shield ground | Always | Below 1 Ω |
| O13-4 (USB+) | # | USB communication line | - | - |
| O13-5 (USB-) | # | USB communication line | - | - |
| O13-6 (USBS) - Body ground | Shielded - Body ground | Shield ground | Always | Below 1 Ω |
| N206-1 (USB+)*4 | # | USB communication line | - | - |
| N206-2 (USB-)*4 | # | USB communication line | - | - |
| N206-3 (USBS) - Body ground*4 | # | Shield ground | Always | Below 1 Ω |
*1: w/ Stop and Start System
*2: w/o Stop and Start System
*3: Terminal exists but is not used
*4: w/ Telematics System (for Toyota Connected Services)
#: There is no wire color information
STEREO COMPONENT AMPLIFIER ASSEMBLY (for 12 Speakers)
1.792,0.25 2.208,0.5
0.417,0.25
5.25,0.25 5.667,0.5
0.417,0.25
1.844,0.302 2.26,0.51
0.417,0.208
10
false
N170
5.302,0.292 5.74,0.521
0.438,0.229
10
false
N169
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| N170-3 (GND) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
| N170-4 (FL+) - N170-3 (GND) | P - W-B | Sound signal (Front Left) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-5 (FR+) - N170-3 (GND) | R - W-B | Sound signal (Front Right) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-6 (RR+) - N170-3 (GND) | G - W-B | Sound signal (Roof Right) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-7 (RL+) - N170-3 (GND) | R - W-B | Sound signal (Roof Left) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-8 (WFL+) - N170-3 (GND) | R - W-B | Sound signal (Rear Left) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-9 (WFR+) - N170-3 (GND) | R- W-B | Sound signal (Front Right) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-12 (SL+) - N170-3 (GND) | Y - W-B | Sound signal (Roof Left) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-13 (SR+) - N170-3 (GND) | B - W-B | Sound signal (Roof Right) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-16 (+B2) - N170-3 (GND) | B - W-B*1
R - W-B*2 |
Power source (+B2) | Ignition switch off | 10.5 to 16 V*1
11 to 14 V*2 |
| N170-18 (GND2) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
| N170-19 (FL-) - N170-3 (GND) | B - W-B | Sound signal (Front Left) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-20 (FR-) - N170-3 (GND) | W - W-B | Sound signal (Front Right) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-21 (RR-) - N170-3 (GND) | P - W-B | Sound signal (Roof Right) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-22 (RL-) - N170-3 (GND) | L - W-B | Sound signal (Roof Left) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-23 (WFL-) - N170-3 (GND) | L - W-B | Sound signal (Rear Left) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-24 (WFR-) - N170-3 (GND) | L - W-B | Sound signal (Front Right) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-27 (SL-) - N170-3 (GND) | G - W-B | Sound signal (Roof Left) | Audio system playing | A waveform synchronized with sound signals is output |
| N170-28 (SR-) - N170-3 (GND) | W - W-B | Sound signal (Roof Right) | Audio system playing | A waveform synchronized with sound signals is output |
| N169-1 (MUTE) - N170-3 (GND) | L - W-B | Mute signal | Ignition switch ACC
Audio system playing |
2.0 V or higher |
| Audio system changing modes | Below 1 V | |||
| N169-2 (L-) - N170-3 (GND) | SB - W-B | Sound signal (Left) | Audio system playing | A waveform synchronized with sound signals is output |
| N169-3 (L+) - N170-3 (GND) | BR - W-B | Sound signal (Left) | Audio system playing | A waveform synchronized with sound signals is output |
| N169-4 (R-) - N170-3 (GND) | P - W-B | Sound signal (Right) | Audio system playing | A waveform synchronized with sound signals is output |
| N169-5 (R+) - N170-3 (GND) | LG - W-B | Sound signal (Right) | Audio system playing | A waveform synchronized with sound signals is output |
| N169-6 (SLD) - Body ground | Shielded - Body ground | Shield ground | Always | Below 1 Ω |
| N169-7 (TX-) | BE | AVC-LAN communication signal | - | - |
| N169-8 (TX+) | Y | AVC-LAN communication signal | - | - |
| N169-10 (LRHD) - Body ground*4 | BR - Body ground | Ground | Always | Below 1 Ω |
| N169-11 (SPD) - N170-3 (GND) | V - W-B | Vehicle speed signal | Ignition switch ON
Wheel being rotated |
Pulse generation |
| N169-12 (ACC) - N170-3 (GND) | W - W-B*1
GR - W-B*2 |
Power source (ACC) | Ignition switch off | Below 1 V |
| Ignition switch ACC | 10.5 to 16 V*1
11 to 14 V*2 |
|||
| N169-14 (II1-) - N170-3 (GND) | R - W-B | Voice signal | Voice guidance sounding | A waveform synchronized with voice signals is output |
| N169-15 (II1+) - N170-3 (GND) | G - W-B | Voice signal | Voice guidance sounding | A waveform synchronized with voice signals is output |
| N169-18 (SLD1) - Body ground | Shielded - Body ground | Shield ground | Always | Below 1 Ω |
| N169-24 (TMUT) - Body ground*3 | B - Body ground | Mute signal | Ignition switch ACC
Audio system playing |
2.0 V or higher |
| Emergency call mode | Below 1 V |
*1: w/ Stop and Start System
*2: w/o Stop and Start System
*3: w/ Telematics Transceiver
*4: for RHD
COMBINATION METER ASSEMBLY
