The sound signals amplified by the radio receiver assembly are sent to the speakers from the radio receiver assembly via the speaker circuit.
If there is a short in a speaker circuit, the radio receiver assembly detects it and stops output to the speakers.
Thus sound cannot be heard from the speakers even if there is no malfunction in the radio receiver assembly or speakers.
Check the vehicle condition.
| Result | Proceed to |
|---|---|
| for 2 Speakers | A |
| for 4 Speakers and for High Roof | B |
| for 4 Speakers and for Standard Roof | C |
| for 6 Speakers and for High Roof | D |
| for 6 Speakers and for Standard Roof | E |
A
B
C
D
E

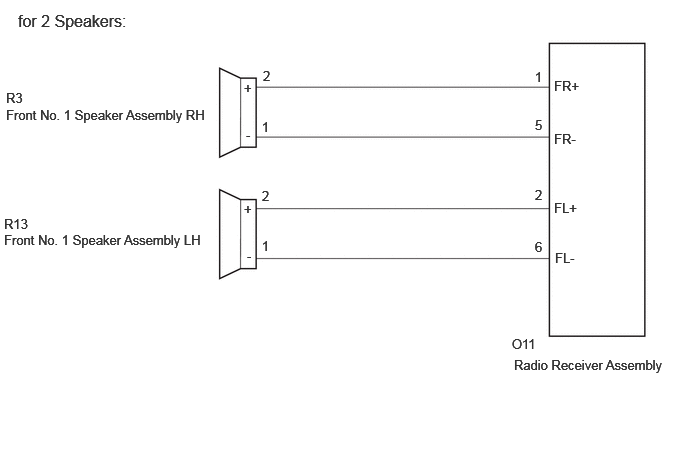

*1: for RH Side
*2: for LH Side
Disconnect the O11 radio receiver assembly connectors.
Disconnect the R3*1 and R13*2 front No. 1 speaker assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| O11-1 (FR+) - R3-2 (+)*1 | Always | Below 1 Ω |
| O11-5 (FR-) - R3-1 (-)*1 | Always | Below 1 Ω |
| O11-2 (FL+) - R13-2 (+)*2 | Always | Below 1 Ω |
| O11-6 (FL-) - R13-1 (-)*2 | Always | Below 1 Ω |
| O11-1 (FR+) - Body ground*1 | Always | 10 kΩ or higher |
| O11-5 (FR-) - Body ground*1 | Always | 10 kΩ or higher |
| O11-2 (FL+) - Body ground*2 | Always | 10 kΩ or higher |
| O11-6 (FL-) - Body ground*2 | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the front No. 1 speaker assembly.
Inspect the front No. 1 speaker assembly.
| Proceed to |
|---|
| OK |
| NG |
OK
NG

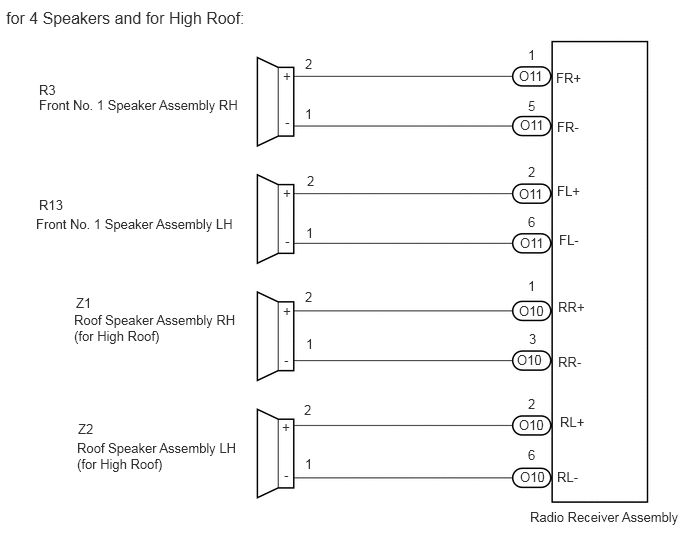

*1: for RH Side
*2: for LH Side
Disconnect the O10 and O11 radio receiver assembly connectors.
Disconnect the R3*1 and R13*2 front No. 1 speaker assembly connector.
Disconnect the Z1*1 and Z2*2 roof speaker assembly (for High Roof) connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| O11-1 (FR+) - R3-2 (+)*1 | Always | Below 1 Ω |
| O11-5 (FR-) - R3-1 (-)*1 | Always | Below 1 Ω |
| O11-2 (FL+) - R13-2 (+)*2 | Always | Below 1 Ω |
| O11-6 (FL-) - R13-1 (-)*2 | Always | Below 1 Ω |
| O10-1 (RR+) - Z1-2*1 | Always | Below 1 Ω |
| O10-3 (RR-) - Z1-1 (-)*1 | Always | Below 1 Ω |
| O10-2 (RL+) - Z2-2 (+)*2 | Always | Below 1 Ω |
| O10-6 (RL-) - Z2-1 (-)*2 | Always | Below 1 Ω |
| O11-1 (FR+) - Body ground*1 | Always | 10 kΩ or higher |
| O11-5 (FR-) - Body ground*1 | Always | 10 kΩ or higher |
| O11-2 (FL+) - Body ground*2 | Always | 10 kΩ or higher |
| O11-6 (FL-) - Body ground*2 | Always | 10 kΩ or higher |
| O10-1 (RR+) - Body ground*1 | Always | 10 kΩ or higher |
| O10-3 (RR-) - Body ground*1 | Always | 10 kΩ or higher |
| O10-2 (RL+) - Body ground*2 | Always | 10 kΩ or higher |
| O10-6 (RL-) - Body ground*2 | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the front No. 1 speaker assembly.
Inspect the front No. 1 speaker assembly.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the roof speaker assembly (for High Roof).
Inspect the roof speaker assembly (for High Roof).
| Proceed to |
|---|
| OK |
| NG |
OK
NG

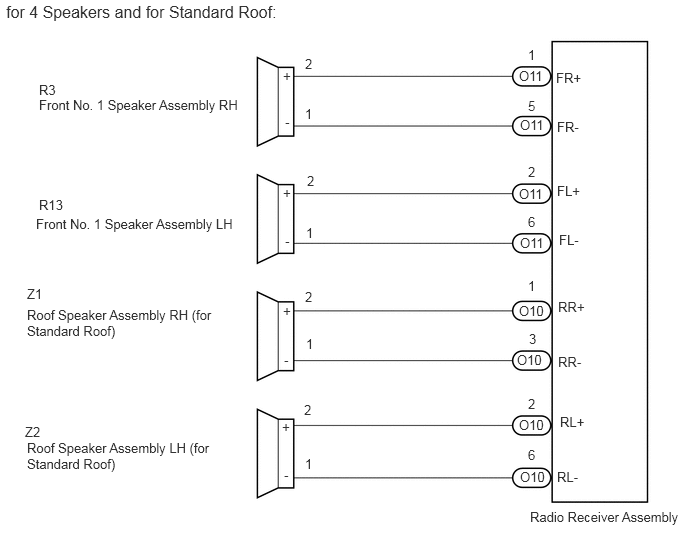

*1: for RH Side
*2: for LH Side
Disconnect the O10 and O11 radio receiver assembly connectors.
Disconnect the R3*1 and R13*2 front No. 1 speaker assembly connector.
Disconnect the Z1*1 and Z2*2 roof speaker assembly (for Standard Roof) connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| O11-1 (FR+) - R3-2 (+)*1 | Always | Below 1 Ω |
| O11-5 (FR-) - R3-1 (-)*1 | Always | Below 1 Ω |
| O11-2 (FL+) - R13-2 (+)*2 | Always | Below 1 Ω |
| O11-6 (FL-) - R13-1 (-)*2 | Always | Below 1 Ω |
| O10-1 (RR+) - Z1-2*1 | Always | Below 1 Ω |
| O10-3 (RR-) - Z1-1 (-)*1 | Always | Below 1 Ω |
| O10-2 (RL+) - Z2-2 (+)*2 | Always | Below 1 Ω |
| O10-6 (RL-) - Z2-1 (-)*2 | Always | Below 1 Ω |
| O11-1 (FR+) - Body ground*1 | Always | 10 kΩ or higher |
| O11-5 (FR-) - Body ground*1 | Always | 10 kΩ or higher |
| O11-2 (FL+) - Body ground*2 | Always | 10 kΩ or higher |
| O11-6 (FL-) - Body ground*2 | Always | 10 kΩ or higher |
| O10-1 (RR+) - Body ground*1 | Always | 10 kΩ or higher |
| O10-3 (RR-) - Body ground*1 | Always | 10 kΩ or higher |
| O10-2 (RL+) - Body ground*2 | Always | 10 kΩ or higher |
| O10-6 (RL-) - Body ground*2 | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the front No. 1 speaker assembly.
Inspect the front No. 1 speaker assembly.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the roof speaker assembly (for Standard Roof).
Inspect the roof speaker assembly (for Standard Roof).
| Proceed to |
|---|
| OK |
| NG |
OK
NG

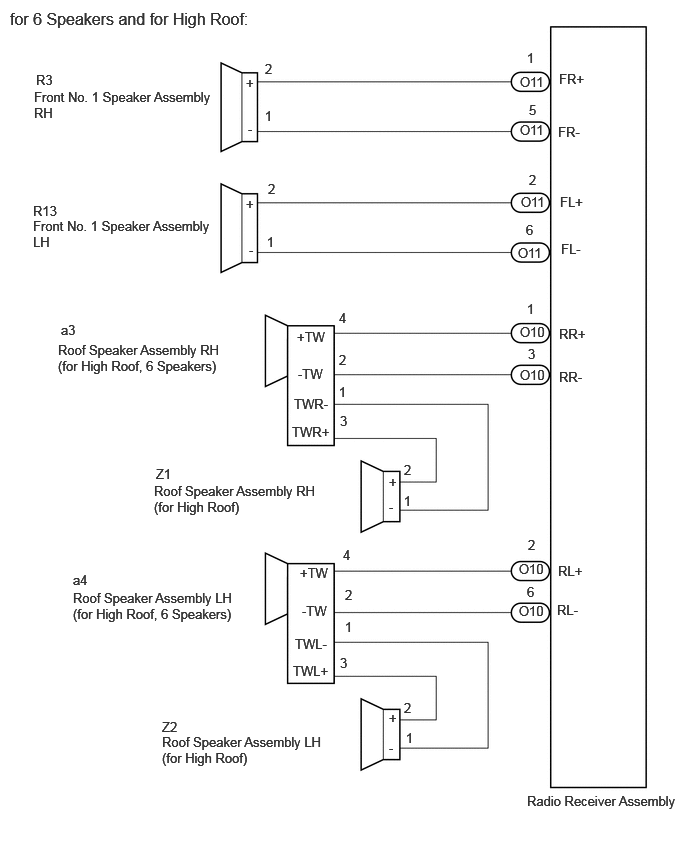

*1: for RH Side
*2: for LH Side
Disconnect the O11 and O10 radio receiver assembly connectors.
Disconnect the R3*1 and/or R13*2 front No. 1 speaker assembly connector.
Disconnect the a3*1 and/or a4*2 roof speaker assembly (for High Roof, 6 Speakers) connector.
Disconnect the Z1*1 and/or Z2*2 roof speaker assembly (for High Roof) connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| O11-1 (FR+) - R3-2 (+) | Always | Below 1 Ω |
| O11-5 (FR-) - R3-1 (-) | Always | Below 1 Ω |
| O11-2 (FL+) - R13-2 (+) | Always | Below 1 Ω |
| O11-6 (FL-) - R13-1 (-) | Always | Below 1 Ω |
| O10-1 (RR+) - a3-4 (+TW) | Always | Below 1 Ω |
| O10-3 (RR-) - a3-2 (-TW) | Always | Below 1 Ω |
| a3-3 (TWR+) - Z1-2 (+) | Always | Below 1 Ω |
| a3-1 (TWR-) - Z1-1 (-) | Always | Below 1 Ω |
| O10-2 (RL+) - a4-4 (+TW) | Always | Below 1 Ω |
| O10-6 (RL-) - a4-2 (-TW) | Always | Below 1 Ω |
| a4-3 (TWL+) - Z2-2 (+) | Always | Below 1 Ω |
| a4-1 (TWL-) - Z2-1 (-) | Always | Below 1 Ω |
| O11-1 (FR+) - Body ground | Always | 10 kΩ or higher |
| O11-5 (FR-) - Body ground | Always | 10 kΩ or higher |
| O11-2 (FL+) - Body ground | Always | 10 kΩ or higher |
| O11-6 (FL-) - Body ground | Always | 10 kΩ or higher |
| O10-1 (RR+) - Body ground | Always | 10 kΩ or higher |
| O10-3 (RR-) - Body ground | Always | 10 kΩ or higher |
| a3-3 (TWR+) - Body ground | Always | 10 kΩ or higher |
| a3-1 (TWR-) - Body ground | Always | 10 kΩ or higher |
| O10-2 (RL+) - Body ground | Always | 10 kΩ or higher |
| O10-6 (RL-) - Body ground | Always | 10 kΩ or higher |
| a4-3 (TWL-) - Body ground | Always | 10 kΩ or higher |
| a4-1 (TWL-) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the front No. 1 speaker assembly.
Inspect the front No. 1 speaker assembly.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the roof speaker assembly (for High Roof).
Inspect the roof speaker assembly (for High Roof).
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Replace the roof speaker assembly (for High Roof, 6 Speakers) with a new or known good one.
Check the malfunction disappears.
Connect all the connectors to the roof speaker assemblies that were disconnected.
When there is a possibility that either the right or left roof speaker is defective, inspect by interchanging the right one with the left one.
Perform the above inspection on both LH and RH sides.
Malfunction disappears.
| Proceed to |
|---|
| OK |
| NG |
OK
NG

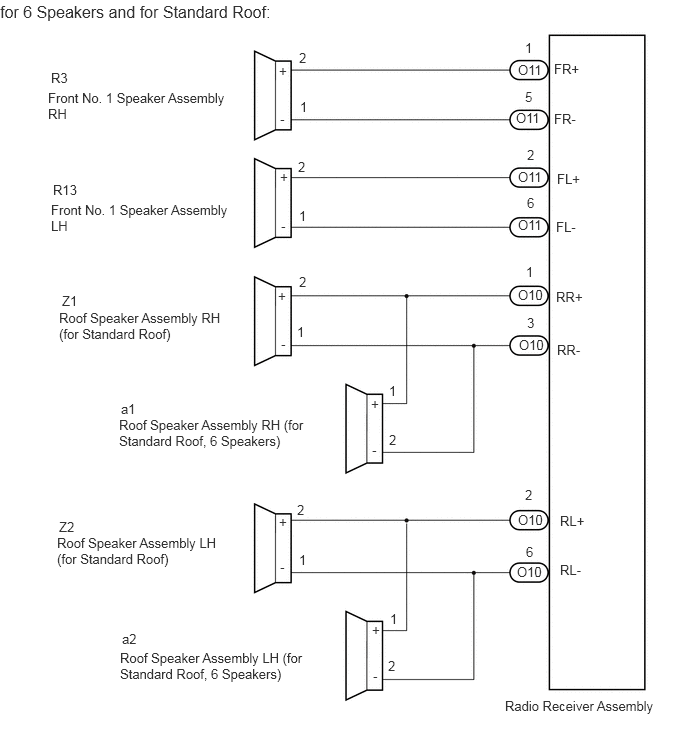

*1: for RH Side
*2: for LH Side
Disconnect the O11 and O10 radio receiver assembly connectors.
Disconnect the R3*1 and/or R13*2 front No. 1 speaker assembly connector.
Disconnect the Z1*1 and/or Z2*2 roof speaker assembly (for Standard Roof) connector.
Disconnect the a1*1 and/or a2*2 roof speaker assembly (for Standard Roof, 6 Speakers) connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| O11-1 (FR+) - R3-2 (+) | Always | Below 1 Ω |
| O11-5 (FR-) - R3-1 (-) | Always | Below 1 Ω |
| O11-2 (FL+) - R13-2 (+) | Always | Below 1 Ω |
| O11-6 (FL-) - R13-1 (-) | Always | Below 1 Ω |
| O10-1 (RR+) - Z1-2 (+) | Always | Below 1 Ω |
| O10-3 (RR-) - Z1-1 (-) | Always | Below 1 Ω |
| O10-1 (RR+) - a1-1 (+) | Always | Below 1 Ω |
| O10-3 (RR-) - a1-2 (-) | Always | Below 1 Ω |
| O10-2 (RL+) - Z2-2 (+) | Always | Below 1 Ω |
| O10-6 (RL-) - Z2-1 (-) | Always | Below 1 Ω |
| O10-2 (RL+) - a2-1 (+) | Always | Below 1 Ω |
| O10-6 (RL-) - a2-2 (-) | Always | Below 1 Ω |
| O11-1 (FR+) - Body ground | Always | 10 kΩ or higher |
| O11-5 (FR-) - Body ground | Always | 10 kΩ or higher |
| O11-2 (FL+) - Body ground | Always | 10 kΩ or higher |
| O11-6 (FL-) - Body ground | Always | 10 kΩ or higher |
| O10-1 (RR+) - Body ground | Always | 10 kΩ or higher |
| O10-3 (RR-) - Body ground | Always | 10 kΩ or higher |
| O10-2 (RL+) - Body ground | Always | 10 kΩ or higher |
| O10-6 (RL-) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the front No. 1 speaker assembly.
Inspect the front No. 1 speaker assembly.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the roof speaker assembly (for Standard Roof).
Inspect the roof speaker assembly (for Standard Roof).
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Replace the roof speaker assembly (for Standard Roof, 6 Speakers) with a new or known good one.
Check the malfunction disappears.
Connect all the connectors to the roof speaker assemblies that were disconnected.
When there is a possibility that either the right or left roof speaker is defective, inspect by interchanging the right one with the left one.
Perform the above inspection on both LH and RH sides.
Malfunction disappears.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
