RM35X0E _56 Audio / Visual / Telematics _078380 TELEMATICS _0385046 TELEMATICS SYSTEM(for ERA-GLONASS) J

TELEMATICS  TELEMATICS SYSTEM(for ERA-GLONASS)  Emergency Call Switch Illumination Circuit


WIRING DIAGRAM

for High Roof:
E467117
1.521,1.74 2.875,1.969 1.354,0.229 10 false Manual (SOS) Switch 1,2.135 1.323,2.333 0.323,0.198 10 false a19 0.99,2.302 3.448,2.75 2.458,0.448 10 false Map Light Assembly 4.958,2.271 7.146,2.573 2.188,0.302 10 false Telematics Transceiver 4.969,2.104 5.469,2.302 0.5,0.198 10 false N209 3.448,0.438 4.063,0.625 0.615,0.188 10 false RRID 3.396,1.313 3.854,1.5 0.458,0.188 10 false GND3 5.198,1.292 5.563,1.479 0.365,0.188 10 false SIG- 4.969,1.292 5.177,1.531 0.208,0.24 10 false 3 3.917,0.396 4.125,0.635 0.208,0.24 10 false 19 3.885,1.281 4.094,1.521 0.208,0.24 10 false 21 5.063,0.719 6.281,0.938 1.219,0.219 10 false IG2 NO.2 6.135,0.542 7.063,0.917 0.927,0.375 10 false from IG2-NO.2 Relay

for Standard Roof:
E467117
1.521,1.74 2.875,1.969 1.354,0.229 10 false Manual (SOS) Switch 1.01,2.125 1.333,2.323 0.323,0.198 10 false a22 1.01,2.302 3.469,2.75 2.458,0.448 10 false Map Light Assembly 4.865,2.25 7.073,2.51 2.208,0.26 10 false Telematics Transceiver 4.875,2.083 5.396,2.281 0.521,0.198 10 false N209 3.438,0.438 4.052,0.625 0.615,0.188 10 false RRID 3.385,1.333 3.844,1.521 0.458,0.188 10 false GND3 5.156,1.333 5.521,1.521 0.365,0.188 10 false SIG- 6.125,0.563 7.052,0.979 0.927,0.417 10 false from IG2-NO.2 Relay 4.979,1.281 5.188,1.521 0.208,0.24 10 false 3 3.896,0.396 4.104,0.635 0.208,0.24 10 false 9 3.885,1.281 4.094,1.521 0.208,0.24 10 false 12 5.063,0.74 5.781,0.958 0.719,0.219 10 false IG2 NO.2

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Registration for Telematics System.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for ERA-GLONASS)>REGISTRATION

·

When replacing the telematics transceiver, make sure to replace it with a new one.

·

Inspect the fuse for circuits related to this system before performing the following procedure.



PROCEDURE

1.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for High roof A
for Standard roof B



A

2.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY)

B

5.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY)
2.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY)
a.

Disconnect the N209 telematics transceiver connector.


b.

Disconnect the a19 map light assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
a19-21 (GND3) - N209-3 (SIG-) Always Below 1 Ω
a19-21 (GND3) or N209-3 (SIG-) - Body ground Always 10 kΩ or higher



d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
a19-19 (RRID) - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

3.INSPECT MAP LIGHT ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT MAP LIGHT ASSEMBLY
a.

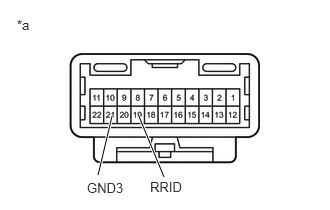

E409659C04
1.021,1.823 1.167,1.208 true 1.708,1.844 1.438,1.188 true 0.177,0.177 0.458,0.417 0.281,0.24 10 false *a 0.906,1.875 1.427,2.094 0.521,0.219 10 false GND3 1.563,1.865 2,2.073 0.438,0.208 10 false RRID
*a Component without harness connected
(Map Light Assembly)


Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


b.

Apply battery voltage to the connector.

Measurement Condition Condition Specified Condition
Battery positive (+) → 19 (RRID)
Battery negative (-) → 21 (GND3) 		Always Manual (SOS) switch illumination comes on


c.

Check if the manual (SOS) switch illuminates.

OK:

Manual (SOS) switch illuminates.



Result:
Proceed to
OK
NG



OK

4.REPLACE TELEMATICS TRANSCEIVER

NG

REPLACE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


5.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY)
a.

Disconnect the N209 telematics transceiver connector.


b.

Disconnect the a22 map light assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
a22-12 (GND3) - N209-3 (SIG-) Always Below 1 Ω
a22-12 (GND3) or N209-3 (SIG-) - Body ground Always 10 kΩ or higher



d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
a22-9 (RRID) - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

6.INSPECT MAP LIGHT ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.INSPECT MAP LIGHT ASSEMBLY
a.

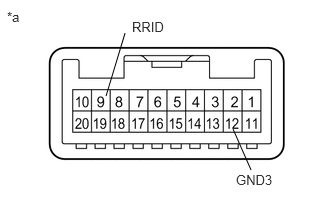

B129570C75
1.302,0.344 1.104,1 false 2.615,1.771 2.427,1.344 false 0.073,0.094 0.354,0.333 0.281,0.24 10 false *a 2.458,1.792 2.979,2.01 0.521,0.219 10 false GND3 1.375,0.198 1.813,0.406 0.438,0.208 10 false RRID
*a Component without harness connected
(Map Light Assembly)


Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT (for Wagon)>REMOVAL


b.

Apply battery voltage to the connector.

Measurement Condition Condition Specified Condition
Battery positive (+) → 9 (RRID)
Battery negative (-) → 12 (GND3) 		Always Manual (SOS) switch illumination comes on


c.

Check if the manual (SOS) switch illuminates.

OK:

Manual (SOS) switch illuminates.



Result:
Proceed to
OK
NG



OK

7.REPLACE TELEMATICS TRANSCEIVER

NG

REPLACE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT (for Wagon)>REMOVAL
