RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0396483 PERSONAL LIGHT(for Wagon) A

LIGHTING (INT)  PERSONAL LIGHT(for Wagon)  REMOVAL


PROCEDURE

Hide 81260A 1.REMOVE MAP LIGHT ASSEMBLY

a.

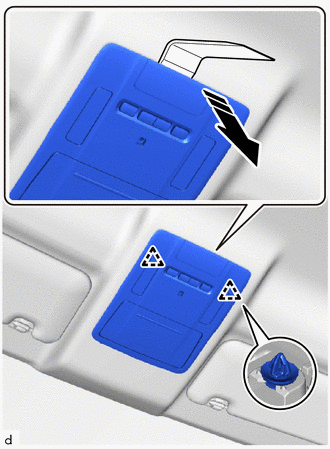

E421141C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


b.

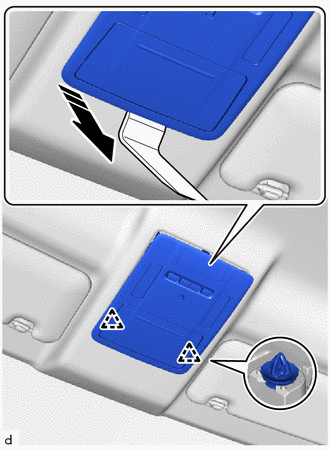

E421142C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


c.

Disconnect each connector.


d.

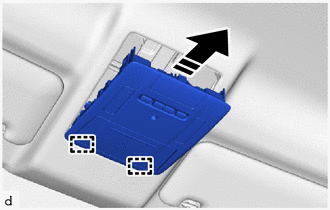

E421143C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the map light assembly as shown in the illustration.
