RM35X0E _56 Audio / Visual / Telematics _078380 TELEMATICS _0385046 TELEMATICS SYSTEM(for ERA-GLONASS) C

TELEMATICS  TELEMATICS SYSTEM(for ERA-GLONASS)  B157111  Indicator (Green) Circuit Short to Ground  B157113  Indicator (Green) Circuit Open


DESCRIPTION

This DTC is stored when the telematics transceiver detects an open or short in the manual (SOS) switch green indicator circuit of the manual (SOS) switch.

The manual (SOS) switch green indicator illuminates for 5 seconds after the ignition switch is turned to ON.

If the telematics system is not active, the manual (SOS) switch green indicator will turn off.

If the telematics system is active, the manual (SOS) switch green indicator will blink while communicating with the call center.

DTC No. Detection Item DTC Detection Condition Trouble Area
B157111 Indicator (Green) Circuit Short to Ground Manual (SOS) switch green indicator impedance (Ω) is lower than the malfunction threshold for 10 seconds or more when the ignition switch is ON
·

Telematics transceiver

·

Map light assembly (manual [SOS] switch)

·

Harness or connector


B157113 Indicator (Green) Circuit Open Manual (SOS) switch green indicator impedance (Ω) is higher than the malfunction threshold for 10 seconds or more when the ignition switch is ON
·

Telematics transceiver

·

Map light assembly (manual [SOS] switch)

·

Harness or connector



WIRING DIAGRAM

for High Roof:
E353337
4.927,1.729 5.542,1.927 0.615,0.198 10 false N209 1.031,2.135 1.646,2.333 0.615,0.198 10 false a19 1.052,2.302 2.531,2.5 1.479,0.198 10 false Map Light Assembly 1.51,1.74 2.906,1.938 1.396,0.198 10 false Manual (SOS) Switch 1.792,1 2.333,1.198 0.542,0.198 10 false GREEN 3.458,0.677 3.823,0.896 0.365,0.219 10 false IND2 3.354,1.094 3.813,1.281 0.458,0.188 10 false GND3 3.854,0.688 4.219,0.906 0.365,0.219 10 false 20 3.875,1.104 4.24,1.323 0.365,0.219 10 false 21 4.917,1.896 6.313,2.26 1.396,0.365 10 false Telematics Transceiver 5.167,1.094 5.531,1.313 0.365,0.219 10 false SIG- 5.156,0.771 5.521,0.99 0.365,0.219 10 false IND2 4.896,0.688 5.26,0.906 0.365,0.219 10 false 22 4.948,1.104 5.313,1.323 0.365,0.219 10 false 3

for Standard Roof:
E353337
4.927,1.729 5.542,1.927 0.615,0.198 10 false N209 1.031,2.135 1.646,2.333 0.615,0.198 10 false a22 1.052,2.302 2.531,2.5 1.479,0.198 10 false Map Light Assembly 1.51,1.74 2.906,1.938 1.396,0.198 10 false Manual (SOS) Switch 1.792,1 2.333,1.198 0.542,0.198 10 false GREEN 3.458,0.677 3.823,0.896 0.365,0.219 10 false IND2 3.354,1.094 3.813,1.281 0.458,0.188 10 false GND3 3.854,0.688 4.219,0.906 0.365,0.219 10 false 8 3.875,1.104 4.24,1.323 0.365,0.219 10 false 12 4.917,1.896 6.5,2.26 1.583,0.365 10 false Telematics Transceiver 5.167,1.094 5.531,1.313 0.365,0.219 10 false SIG- 5.156,0.771 5.521,0.99 0.365,0.219 10 false IND2 4.896,0.688 5.26,0.906 0.365,0.219 10 false 22 4.927,1.104 5.292,1.323 0.365,0.219 10 false 3

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Telematics System.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for ERA-GLONASS)>PRECAUTION

·

When replacing the telematics transceiver, make sure to replace it with a new one.



PROCEDURE

1.CHECK DTC
a.

Turn the ignition switch off.


b.

Connect the GTS to the DLC3.


c.

Turn the ignition switch to ON and wait for 20 seconds.


d.

Turn the GTS on.


e.

Check for DTCs and check that no DTCs are output.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for ERA-GLONASS)>REGISTRATION

Body Electrical > Telematics > Trouble Codes
50001 459
OK:

No DTCs are output.



Result:
Result Proceed to
OK A
NG (for High Roof) B
NG (for Standard Roof) C



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


B

2.INSPECT MAP LIGHT ASSEMBLY (MANUAL (SOS) SWITCH) (GREEN INDICATOR)

C

5.INSPECT MAP LIGHT ASSEMBLY (MANUAL (SOS) SWITCH) (GREEN INDICATOR)
2.INSPECT MAP LIGHT ASSEMBLY (MANUAL (SOS) SWITCH) (GREEN INDICATOR)
a.

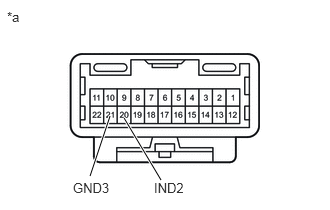

E409659C02
1.677,1.875 1.292,1.229 true 0.938,1.833 1.146,1.208 true 0.073,0.094 0.354,0.333 0.281,0.24 10 false *a 0.76,1.875 1.323,2.125 0.563,0.25 10 false GND3 1.604,1.875 2.042,2.083 0.438,0.208 10 false IND2
*a Component without harness connected
(Map Light Assembly (Manual (SOS) Switch))


Remove the map light assembly (manual (SOS) switch).

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


b.

Connect 2 dry-cell batteries (1.5 V each) in series.


c.

Connect a positive (+) lead from batteries to terminal 20 (IND2) and a negative (-) lead to terminal 21 (GND3) of the map light assembly (manual (SOS) switch) connector.


d.

Check if the manual (SOS) switch indicator (green) comes on.

OK:

Manual (SOS) switch indicator (green) illuminates.



Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY (MANUAL (SOS) SWITCH))

NG

REPLACE MAP LIGHT ASSEMBLY (MANUAL (SOS) SWITCH)

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


3.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY (MANUAL (SOS) SWITCH))
a.

Disconnect the N209 telematics transceiver connector.


b.

Disconnect the a19 map light assembly (manual (SOS) switch) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N209-22 (IND2) - a19-20 (IND2) Always Below 1 Ω
N209-22 (IND2) or a19-20 (IND2) - Body ground Always 10 kΩ or higher
N209-3 (SIG-) - a19-21 (GND3) Always Below 1 Ω
N209-3 (SIG-) or a19-21 (GND3) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.REPLACE TELEMATICS TRANSCEIVER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.INSPECT MAP LIGHT ASSEMBLY (MANUAL (SOS) SWITCH) (GREEN INDICATOR)
a.
B129570C73
1.417,1.865 1.24,1.115 true 2.583,1.781 2.417,1.323 true 0.073,0.094 0.354,0.333 0.281,0.24 10 false *a 2.635,1.719 3.198,1.969 0.563,0.25 10 false GND3 1.469,1.813 1.906,2.021 0.438,0.208 10 false IND2
*a Component without harness connected
(Map Light Assembly (Manual (SOS) Switch))


Remove the map light assembly (manual (SOS) switch).

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT (for Wagon)>REMOVAL


b.

Connect 2 dry-cell batteries (1.5 V each) in series.


c.

Connect a positive (+) lead from batteries to terminal 8 (IND2) and a negative (-) lead to terminal 12 (GND3) of the map light assembly (manual (SOS) switch) connector.


d.

Check if the manual (SOS) switch indicator (green) comes on.

OK:

Manual (SOS) switch indicator (green) illuminates.



Result:
Proceed to
OK
NG



OK

6.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY (MANUAL (SOS) SWITCH))

NG

REPLACE MAP LIGHT ASSEMBLY (MANUAL (SOS) SWITCH)

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT (for Wagon)>REMOVAL


6.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY (MANUAL (SOS) SWITCH))
a.

Disconnect the N209 telematics transceiver connector.


b.

Disconnect the a22 map light assembly (manual (SOS) switch) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N209-22 (IND2) - a22-8 (IND2) Always Below 1 Ω
N209-22 (IND2) or a22-8 (IND2) - Body ground Always 10 kΩ or higher
N209-3 (SIG-) - a22-12 (GND3) Always Below 1 Ω
N209-3 (SIG-) or a22-12 (GND3) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

7.REPLACE TELEMATICS TRANSCEIVER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
