RM35X0E _56 Audio / Visual / Telematics _078380 TELEMATICS _0385046 TELEMATICS SYSTEM(for ERA-GLONASS) U

TELEMATICS  TELEMATICS SYSTEM(for ERA-GLONASS)  TERMINALS OF ECU


TELEMATICS TRANSCEIVER


E418542N33
0.406,0.25 0.823,0.5 0.417,0.25 1.385,0.25 1.802,0.5 0.417,0.25 5.167,0.25 5.583,0.5 0.417,0.25 0.906,0.24 1.323,0.49 0.417,0.25 1.438,0.302 1.885,0.542 0.448,0.24 10 false N210 5.229,0.292 5.625,0.531 0.396,0.24 10 false N209 0.969,0.292 1.417,0.531 0.448,0.24 10 false N214 0.458,0.292 0.906,0.531 0.448,0.24 10 false N215

Terminal No. (Symbol) Terminal Description Condition Specified Condition

*: w/ Audio and Visual System (for Radio Receiver Type) or w/ Audio and Visual System (for Radio and Display Type)

N209-1 (+B) - N209-20 (E) Power source (+B) Always 11 to 14 V
N209-3 (SIG-) - N209-20 (E) Ground Always Below 1 Ω
N209-4 (IND1) - N209-20 (E) Manual (SOS) switch red indicator illumination signal For 10 seconds after ignition switch turned to ON 2 to 4 V
Ignition switch off Below 1 V
N209-5 (MCVD) - N209-20 (E) Receive microphone voice signal Voice being input to built-in microphone of communication telematics box A waveform synchronized with microphone voice signal is input
N209-6 (MCI+) - N209-20 (E) Microphone voice signal Voice being input to built-in microphone of communication telematics box A waveform synchronized with microphone voice signal is input
N209-7 (MCI-) - N209-20 (E) Microphone voice signal Always Below 1 V
N209-8 (MCMD) - N209-20 (E) Microphone mode signal Microphone mode 0.6 V or higher
Emergency call mode 0.5 V or less
N209-13 (GSW) - N209-20 (E) Collision detection signal Ignition switch ON Pulse generation (Refer to waveform 1)
N209-14 (MUTE) - N209-20 (E)* MUTE Signal Audio system playing 3.5 V or higher
Emergency call mode Below 1 V
N209-18 (SP+) - N209-20(E) Sound signal Sound being output from built-in speaker of communication telematics box A waveform synchronized with sound signals is output
N209-19 (IG2) - N209-20 (E) Power source (IG) Ignition switch ON 11 to 14 V
Ignition switch off Below 1 V
N209-20 (E) - Body ground Ground Always Below 1 Ω
N209-21 (SIG1) - N209-3 (SIG-) Manual (SOS) switch button condition signal Manual (SOS) switch not pressed 1.3 to 1.9 V
Manual (SOS) switch pressed 0.5 to 0.8 V
N209-22 (IND2) - N209-20 (E) Manual (SOS) switch green indicator illumination signal For 2 seconds after ignition switch turned to ON and the manual (SOS) switch indicator (red) has illuminated for 10 seconds 2 to 4 V
Ignition switch off Below 1 V
N209-23 (SGND) - N209-20 (E) Shield ground Always Below 1 Ω
N209-24 (MICV) - N209-20 (E) Communication telematics box power supply Ignition switch ON 4 to 6 V
Ignition switch off Below 1 V
N209-25 (CANP) CAN communication signal - -
N209-26 (CANN) CAN communication signal - -
N209-34 (SP-) - N209-20(E) Sound signal Sound being output from built-in speaker of communication telematics box A waveform synchronized with sound signals is output

a.

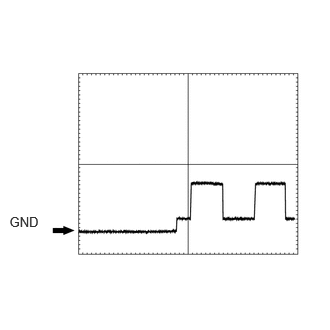

Reference (Oscilloscope waveform):

i.
E165239E01
0.1,2.23 0.491,2.461 0.391,0.230 10 GND

Waveform 1

Item Condition
Tester Connection N209-13 (GSW) - N209-20 (E)
Tool Setting 5.0 V/DIV., 20 ms./DIV.
Vehicle Condition Ignition switch ON




RADIO RECEIVER ASSEMBLY (w/ Audio and Visual System (for Radio Receiver Type))


Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM (for Radio Receiver Type)>TERMINALS OF ECU


RADIO AND DISPLAY RECEIVER ASSEMBLY (w/ Audio and Visual System (for Radio and Display Type))


Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM (for Radio and Display Type)>TERMINALS OF ECU
